| Model | JJY-YLD128SP |
|---|---|
| Communication Mode | 【RS485/Hart 4-20mA 】 |
| Operating Voltage | 【RS485:9–24V】 / 【/Hart 4-20mA:24V】 |
| Average Current | RS485:12V /20MA 】 / 【4-20mA :24V 3.3mA】 |
| Accuracy / Beam Angle | 【HART 4-20mA: 0.1% RS 485:±2mm】 /【Beam Angle ±2.75°】 |
| Comm. Protocol | Customizable Modbus / Text Protocol/HART |
| Range / Blind Zone | 0.05–40m / Radar Blind Zone 5cm |
| Housing Material | PC/Polycarbonate |
| Prot. Class / Temp | IP67/ -40°C ~ 75°C |
| Mounting Thread | G2 |
| Configuration Software | Windows Serial Port Debugger / Android & iOS — RadarBLE app |
| Temperature Display | Supports temperature readout |
| Recommended Cable Diameter | 6-12mm cable |
| Packaging Dims. & Wt. | 150*150*250mm/750g |

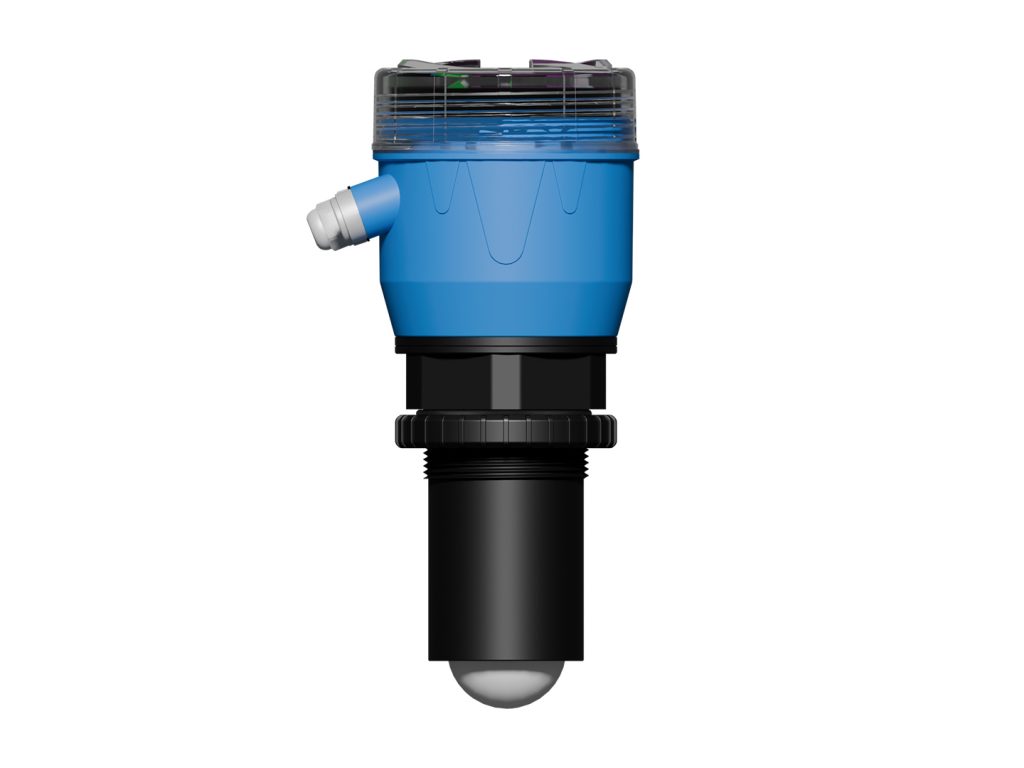

The JJY-YLD128SP is an 80 GHz FMCW radar level transmitter with an on-board LCD display, measuring from 0.05 m to 40 m with a very narrow ±2.75° beam and ±2 mm accuracy on the RS485 output. The level and the temperature are read straight off the display on the housing, and every parameter is configured wirelessly from the free RadarBLE app on Android and iOS. Both industrial outputs are built into the same unit — RS485 and a 2-wire 4-20 mA loop with HART — inside a polycarbonate housing rated IP67 for outdoor service from −40 °C to 75 °C.
The JJY-YLD128SP is built for non-contact level measurement in the places where a float or pressure sensor struggles — aggressive chemicals, wastewater pits, marine ballast and beverage tanks, as well as tall silos and process vessels. Its 80 GHz FMCW beam stays narrow (±2.75°) so the reading ignores sidewalls and internal fittings, while a 5 cm blind zone and millimetre-level accuracy keep short-range measurements reliable. The on-board LCD and Bluetooth commissioning let an installer validate the level on site without a laptop, and the same unit speaks both RS485 and HART 4-20 mA for direct drop-in to a PLC or DCS.
JiaJia Eye is an ISO 9001:2015 certified manufacturer in Shenzhen, established in 2015. We supply OEM/ODM buyers and instrument distributors across Southeast Asia — water treatment, palm oil, rubber, food & beverage — with free samples, custom measuring ranges, custom protocols and private labelling.
Commission the transmitter from your phone with the free RadarBLE app (Android & iOS): pair over Bluetooth and adjust range mapping, output mode, filtering and calibration in real time — no laptop, no ladder, no opening the housing. A Windows upper-computer tool is available for bench setup and firmware upgrades.

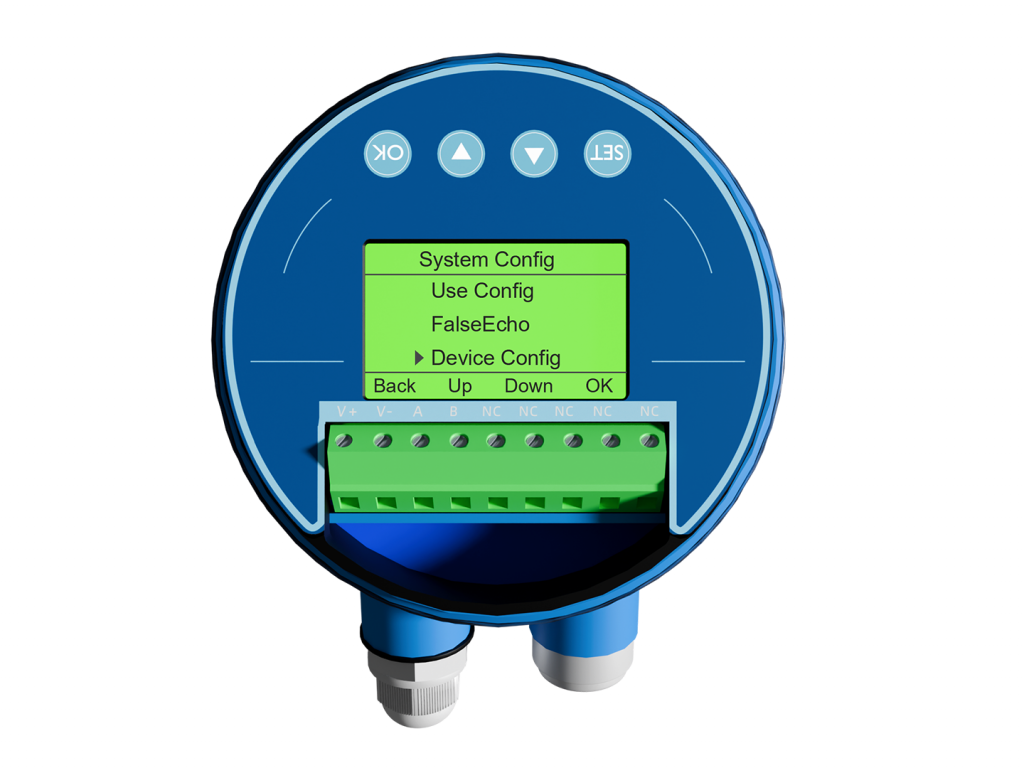

The built-in LCD display shows the live level reading and the temperature directly on the housing, so installers can aim the sensor, check the echo and confirm the output without any tool, app or multimeter. Useful wherever the transmitter is mounted out of reach of a control room.
Output: 4–20 mA HART for the analogue loop and Output: RS485 (Modbus-RTU, or a custom text protocol for OEM projects) for the digital link — both available in the same transmitter. Wire the interface your PLC, data logger or DCS expects; no protocol converter, no second model to stock.

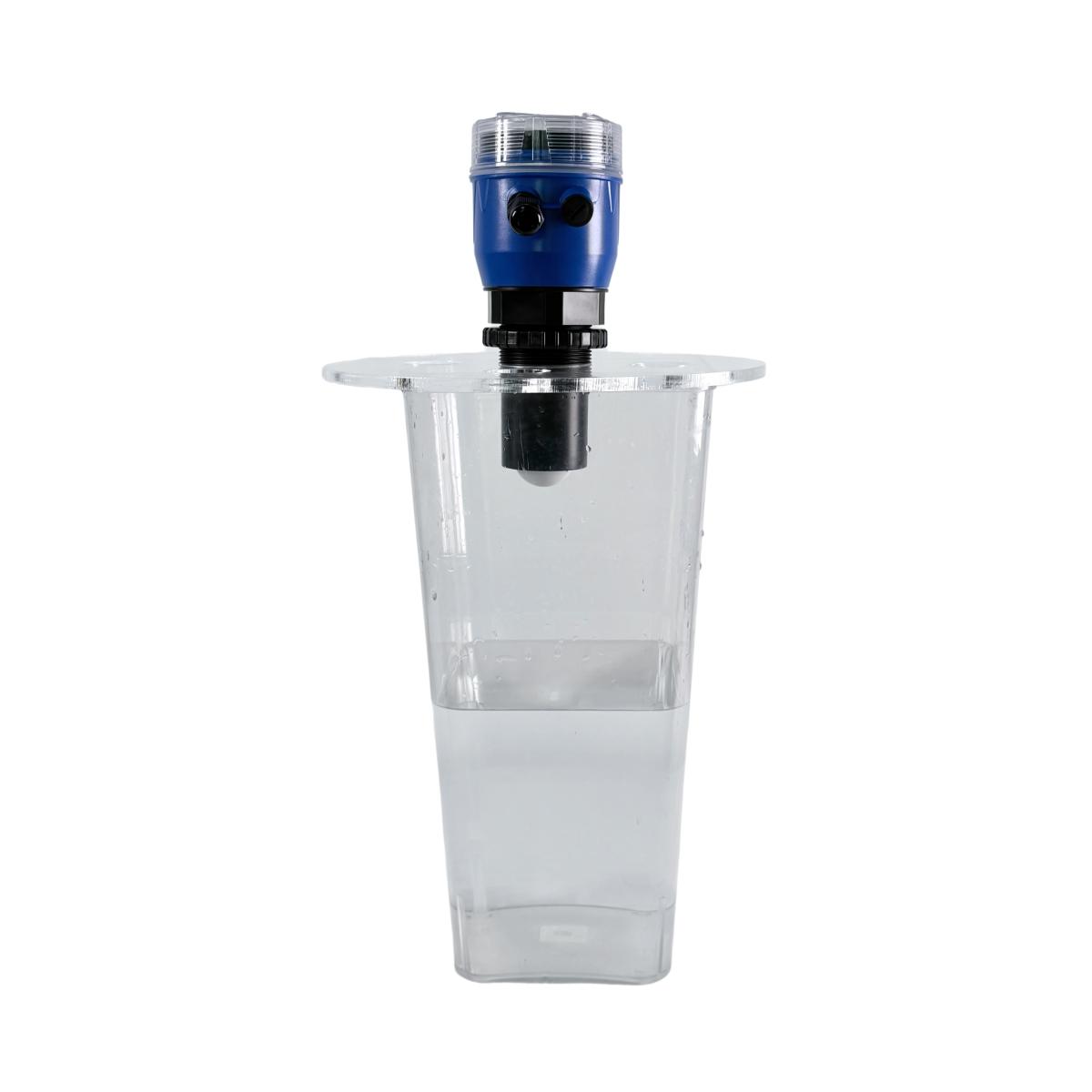

Reservoirs, pump wells, buffer tanks and fire-water tanks — the IP67 housing and −40 °C to 75 °C rating suit outdoor pits and partially flooded chambers.

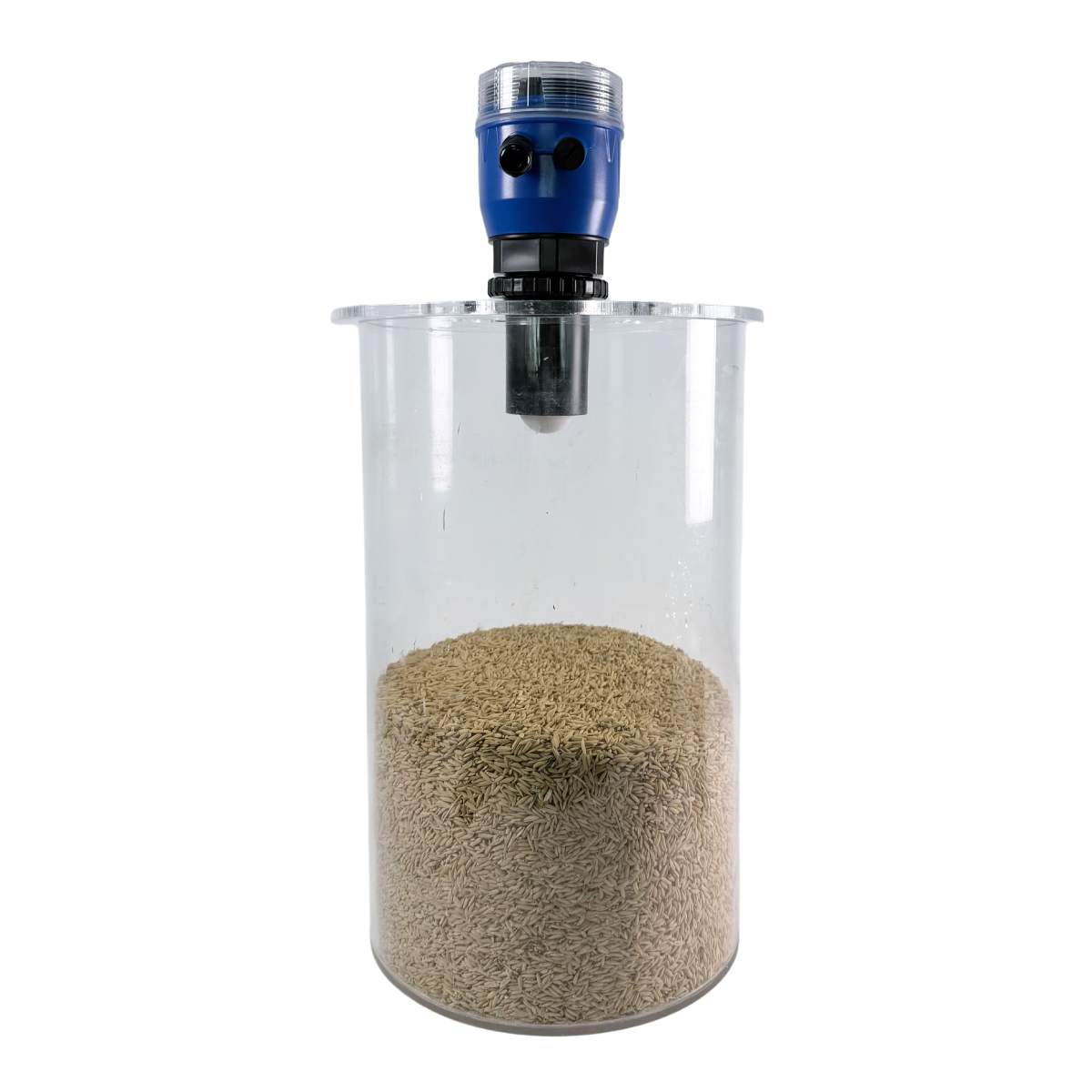

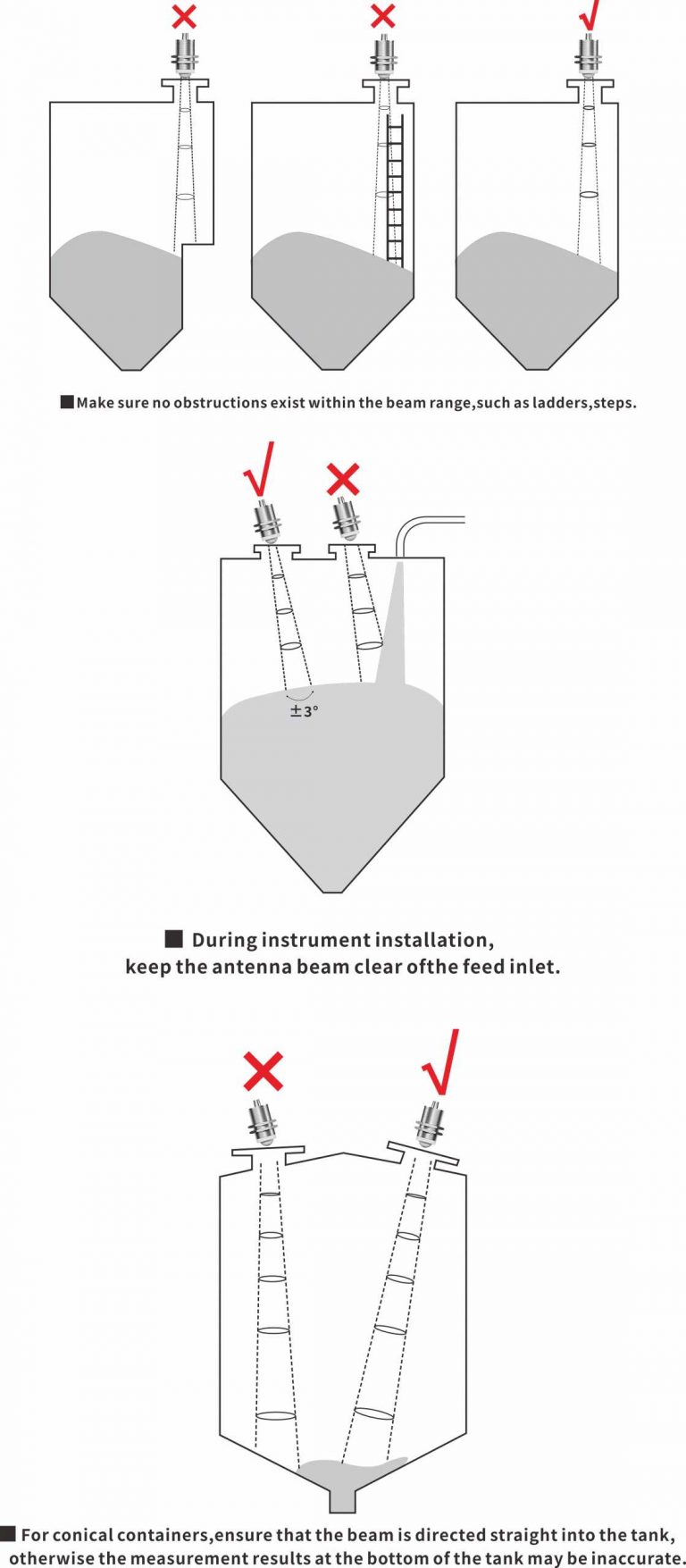

Contactless 80 GHz measurement in tall vessels — chemicals, palm oil, slurry and grain — where a 5 cm blind zone and a ±2.75° beam keep the reading clear of sidewalls and internal fittings.
The LCD gives the machine operator the level at the tank, while RS485 or 4–20 mA feeds the PLC — a natural fit for packaged plants, dosing skids and rental equipment.
Tell us the cable length you need and whether you want an adapter for a thread other than G2 — both are optional extras.
Yes. The LCD on the housing shows the live level reading and the temperature, so you can commission the transmitter and verify the measurement on site without connecting anything.
No PC needed. Install RadarBLE from Google Play or the App Store, pair with the transmitter over Bluetooth and set range, output mode, filtering and calibration from your phone. A Windows upper-computer tool is also free to download for bench configuration and firmware upgrades.
Both interfaces are built into the transmitter: RS485 (Modbus-RTU or a custom text protocol) and 4–20 mA HART. You wire up the one your PLC, data logger or DCS expects — supply is 9–24 V on RS485 and 24 V on the 4-20 mA loop.
±2 mm on the RS485 output and 0.1 % of span on the HART 4-20 mA output, across a 0.05–40 m measuring range. The radar blind zone is 5 cm, and the beam angle is only ±2.75°, which keeps the measurement clear of sidewalls and internal fittings.

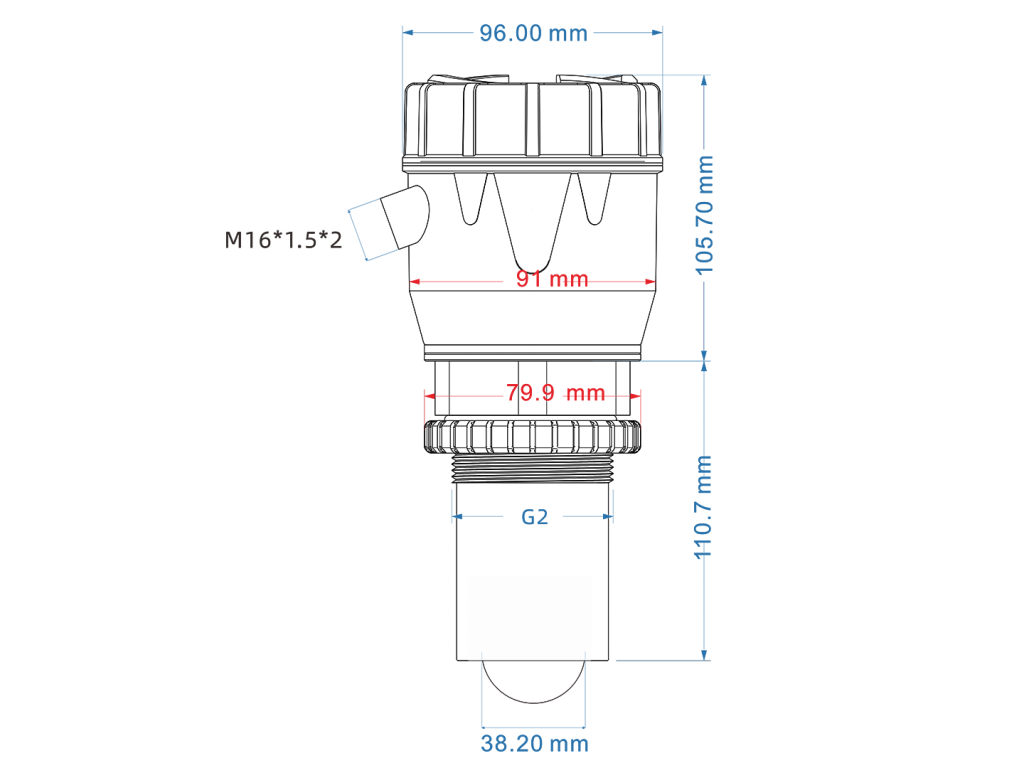

Yes. The polycarbonate housing is rated IP67 and operates from −40 °C to 75 °C. Mount it on a G2 thread, with a cable gland for 6–12 mm cable; the unit weighs 720 g.
One unit. There is no minimum order quantity: a single evaluation unit, a 20-unit trial order and a 500-unit batch are all accepted. Quantities under 20 units ship directly from stock; 20–500 units are scheduled into production.
1–20 units: dispatched within 2 working days from stock. 20–500 units: 1–4 weeks for a scheduled production run, depending on the current schedule. Customised versions follow exactly the same schedule — customisation does not extend the lead time.
Measuring range, mounting thread (G2), communication protocol and housing are all customisable. One free sample is provided — the buyer covers the freight.
ISO 9001:2015 (certificate 02426Q00028R101, valid until 2029-01-15). CE certification is in preparation.
Dispatched within 2 working days of payment confirmation.
Depending on the production schedule: 1 week when a run is already planned, up to 4 weeks at peak, followed by calibration, 48 h burn-in and waterproof testing.
Customisation adds no extra lead time.
Tell us the tank height, output signal and quantity — our engineers reply within two working days with a quotation, a sample arrangement or the 3D files for your enclosure design.
Tell us the tank, the medium and the quantity — we answer with a quotation, datasheet and lead time within two working days.
✅ Your enquiry has been sent successfully
Thank you! We reply within two working days. If it is urgent, WhatsApp us or email [email protected].
Looking for the full range? Browse all radar level sensors →
Every file here is free — no registration and no email wall. Files marked Download open straight away; where the direct link is not live yet, the file is emailed to you within one working day.
Installation, wiring, LCD display readout, parameter configuration and Bluetooth setup for the RadarBLE app.
Modbus-RTU register map for the RS-485 interface, plus the HART command set. A custom text protocol can be written for OEM projects.
STP solid of the radar housing for enclosure and mounting-boss design. Standard thread is G2 — ask us for the exact model if you need it.
Parameter setup, data logging, range calibration and firmware upgrade from a Windows PC.
Search RadarBLE on Google Play, or install the APK. On-site pairing, output switching, false echo mapping and live readings from your phone.
Search RadarBLE in the App Store. On-site pairing, output switching, false echo mapping and live readings from your iPhone
Wiring, COM port settings, parameter setup and live data view.
Watch on YouTube
Pair the transmitter, map out false echoes and monitor readings from your phone.
RadarBLE (iOS) availability: United States, Canada, Germany, France, United Kingdom, Italy, Spain, Greece, Japan, South Korea, Australia, New Zealand, Singapore, Malaysia, Thailand, Philippines, Indonesia, Vietnam, Mexico, Brazil, Saudi Arabia, United Arab Emirates, Turkey, Mainland China, Hong Kong (China).
Need a datasheet, 3D file, test report or a manual in another language? Tell us what you need:
