| Model | JJY-YLD128HS-1.5 |
|---|---|
| Communication Method | 【RS485/Hart 4-20mA 】 |
| Operating Voltage | 【RS485:9–24V】 / 【/Hart 4-20mA:24V】 |
| Average Current | 【RS485:12V /11MA 】 / 【4-20mA :24V 3.3mA】 |
| Accuracy / Beam Angle | ±1mm / Beam Angle ±2.75° |
| Comm. Protocol | Customizable Modbus / Text Protocol |
| Range / Blind Zone | 0.05–40m / Radar Blind Zone 5cm |
| Housing Material / Cable | Polycarbonate+PTFE/ M12 Waterproof Cordset, 5 m |
| Prot. Class / Temp | IP68/ -40°C ~ 75°C |
| Mounting Thread | Upper G1 / Lower G1½ |
| Configuration Software | Windows Serial Port Debugger / Android & iOS — RadarBLE app |
| Packaging Dims. & Wt. | 150*150*200mm/670g |

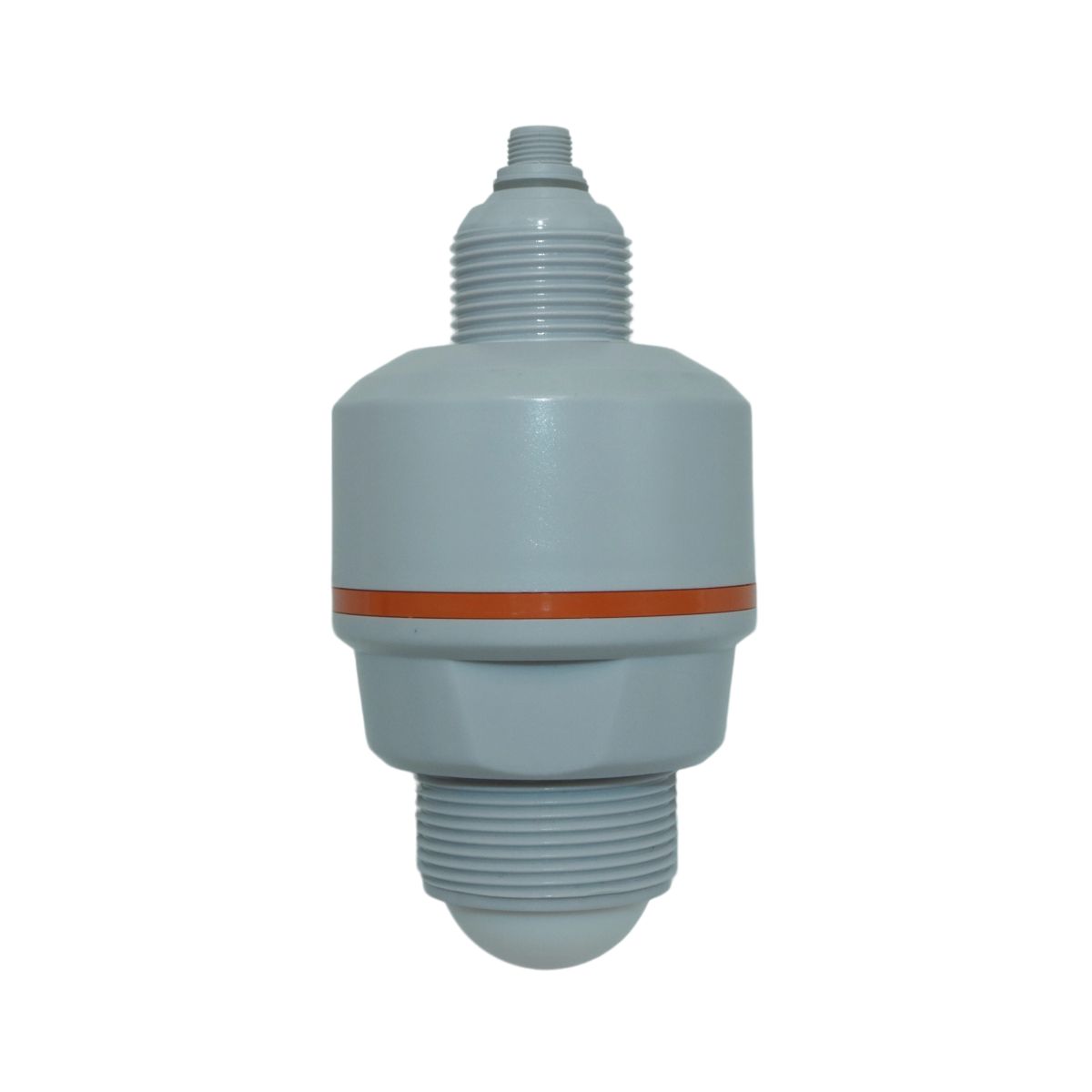

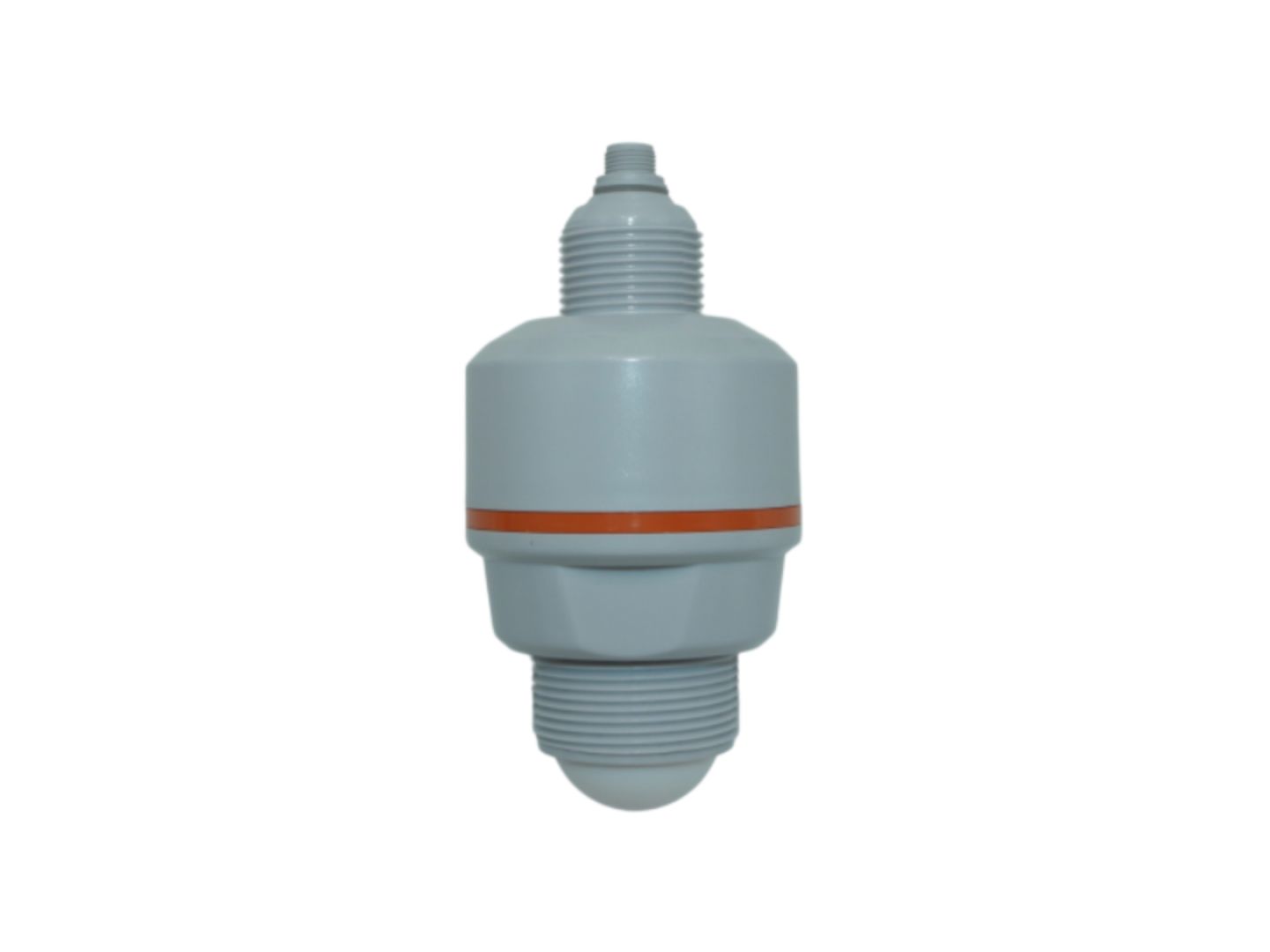

The JJY-YLD128HS-1.5 is an FMCW radar level transmitter built around a 1.5-inch process connection, measuring from 0.05 m to 40 m with ±1 mm accuracy and a very narrow ±2.75° beam angle. Both industrial interfaces are built in — RS485 Modbus-RTU and a 2-wire 4-20 mA loop with HART — and false echo suppression is on board to keep the reading on the real liquid surface. The polycarbonate housing is rated IP68 for outdoor and flooded installations.
JiaJia Eye is an ISO 9001:2015 certified manufacturer in Shenzhen, established in 2015. We supply OEM/ODM buyers and instrument distributors across Southeast Asia — water treatment, palm oil, rubber, food & beverage — with free samples, custom measuring ranges, custom protocols and private labelling.
High-precision FMCW measurement down to ±1 mm — tight enough for household and building water tanks, day tanks and dosing vessels, where a couple of millimetres of level error is the difference between a full tank and an overflow. Standard accuracy across the whole 0.05–40 m range is ±1 mm.
Both outputs are built into the same transmitter: Output: RS485 Modbus-RTU for the digital link, and Output: 4–20 mA HART for the analogue loop. Run RS485 to your PLC or data logger and keep 4–20 mA for the DCS or the indicator — two signals from one device, no protocol converter, no second model to stock.
On-board false echo suppression filters out returns from agitators, ladders, tank walls, welds and internal fittings, so the transmitter locks onto the true liquid surface instead of the strongest reflection.

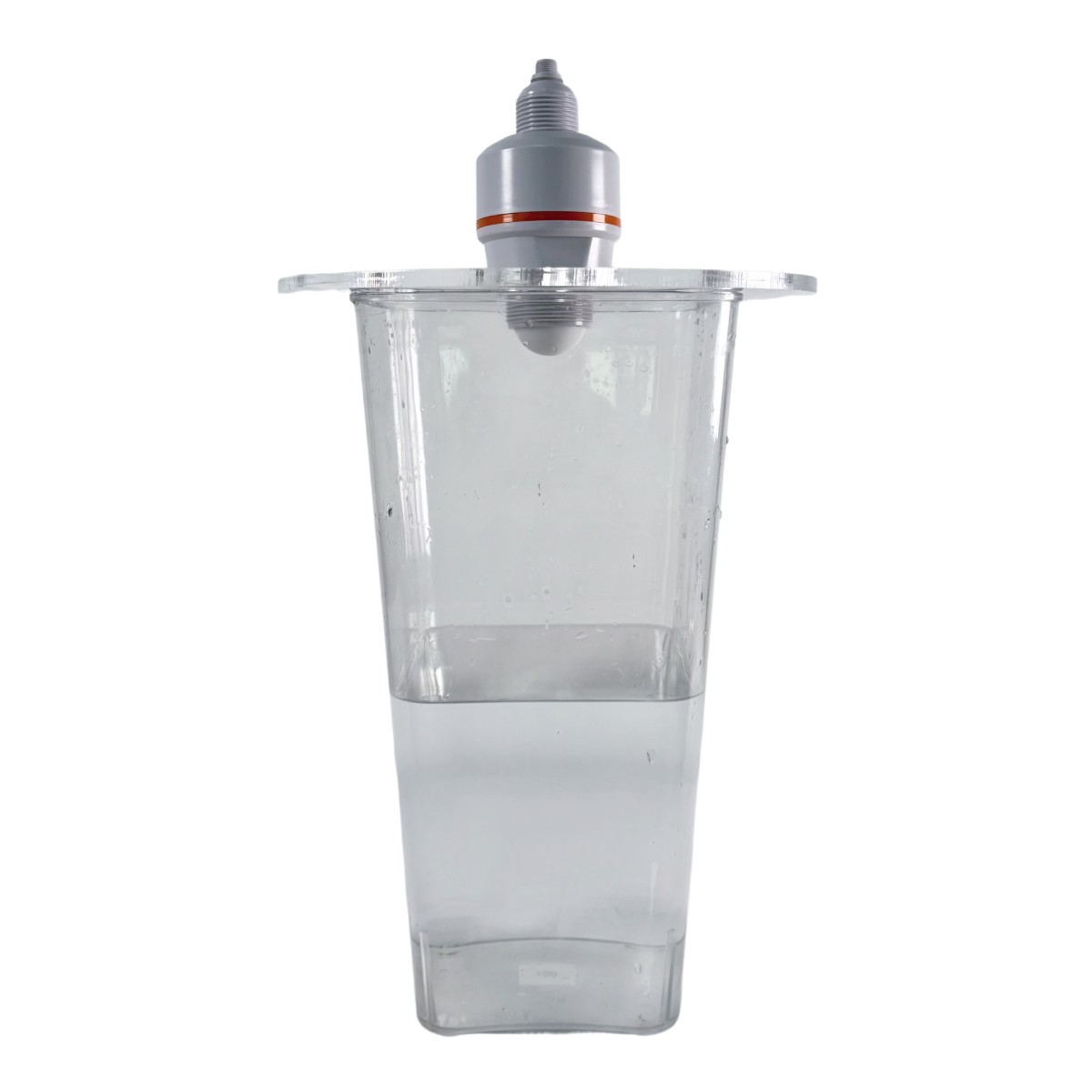

Loft tanks, basement cisterns, rooftop storage tanks and rain-water harvesting tanks — wherever a compact 1.5-inch opening is all that is available.
Sewage pits, fire-water tanks, buffer tanks and PLC level feedback loops in non-sealed or partially flooded vessels.
Contactless measurement in tall vessels and deep wells, with an IP68 polycarbonate housing for outdoor and wash-down environments.
Yes. RS485 Modbus-RTU and the 2-wire 4-20 mA loop with HART are both built into the same transmitter — you wire up the interface your PLC, data logger or DCS expects, and configure it from the RadarBLE app (Android & iOS) or the WeChat mini program.
It lets you mask out the reflections the transmitter should ignore — agitator blades, ladder rungs, weld seams, inlet streams and tank walls. Without it a radar gauge will happily report the strongest echo rather than the liquid surface; with it, the reading stays on the level you care about.

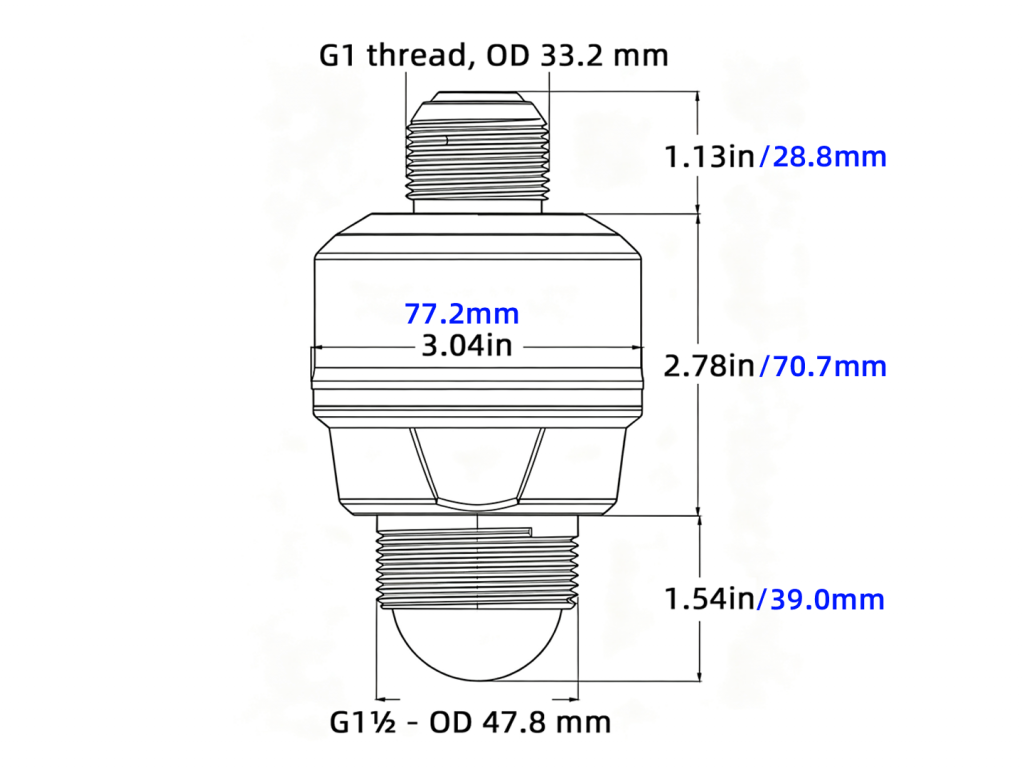

DN 1 inch and DN 1.5 inch mounting, supplied with a G1 / G1½ thread and a matching DN 1 inch nut. If your vessel uses a different boss or a flange, we machine an adapter plate or a custom thread — send us the drawing.
At ±2.75° the beam stays narrow all the way down the tank, so it misses sidewalls, internal pipework and fittings that would otherwise create competing echoes. That is what lets a 1.5-inch device hold ±1 mm accuracy out to 40 m.
One unit. There is no minimum order quantity: a single evaluation unit, a 20-unit trial order and a 500-unit batch are all accepted. Quantities under 20 units ship directly from stock; 20–500 units are scheduled into production.
1–20 units: dispatched within 2 working days from stock. 20–500 units: 1–4 weeks for a scheduled production run, depending on the current schedule. Customised versions follow exactly the same schedule — customisation does not extend the lead time.
Measuring range, mounting thread (G1 / G1½), communication protocol and cable length are all customisable. One free sample is provided — the buyer covers the freight.
ISO 9001:2015 (certificate 02426Q00028R101, valid until 2029-01-15). CE certification is in preparation.
Dispatched within 2 working days of payment confirmation.
Depending on the production schedule: 1 week when a run is already planned, up to 4 weeks at peak, followed by calibration, 48 h burn-in and waterproof testing.
Customisation adds no extra lead time.
Tell us the tank height, output signal and quantity — our engineers reply within two working days with a quotation, a sample arrangement or the 3D files for your enclosure design.
Tell us the tank, the medium and the quantity — we answer with a quotation, datasheet and lead time within two working days.
✅ Your enquiry has been sent successfully
Thank you! We reply within two working days. If it is urgent, WhatsApp us or email [email protected].
Looking for the full range? Browse all radar level sensors →
Every file here is free — no registration and no email wall. Files marked Download open straight away; where the direct link is not live yet, the file is emailed to you within one working day.
Installation, wiring, parameter configuration and false echo suppression setup for the JJY-YLD128HS-1.5.
Modbus-RTU register map for the RS-485 interface, plus the HART command set. A custom text protocol can be written for OEM projects.
STP AP214 solid of the housing with the G1 / G1½ thread and 1.5-inch body, for enclosure and mounting-boss design.
Parameter setup, data logging, range calibration and firmware upgrade from a Windows PC.
Search RadarBLE on Google Play, or install the APK. On-site pairing, output switching, false echo mapping and live readings from your phone.
Search RadarBLE in the App Store. On-site pairing, output switching, false echo mapping and live readings from your iPhone
Wiring, COM port settings, parameter setup and live data view.
Watch on YouTube
Pair the transmitter, map out false echoes and monitor readings from your phone.
RadarBLE (iOS) availability: United States, Canada, Germany, France, United Kingdom, Italy, Spain, Greece, Japan, South Korea, Australia, New Zealand, Singapore, Malaysia, Thailand, Philippines, Indonesia, Vietnam, Mexico, Brazil, Saudi Arabia, United Arab Emirates, Turkey, Mainland China, Hong Kong (China).
