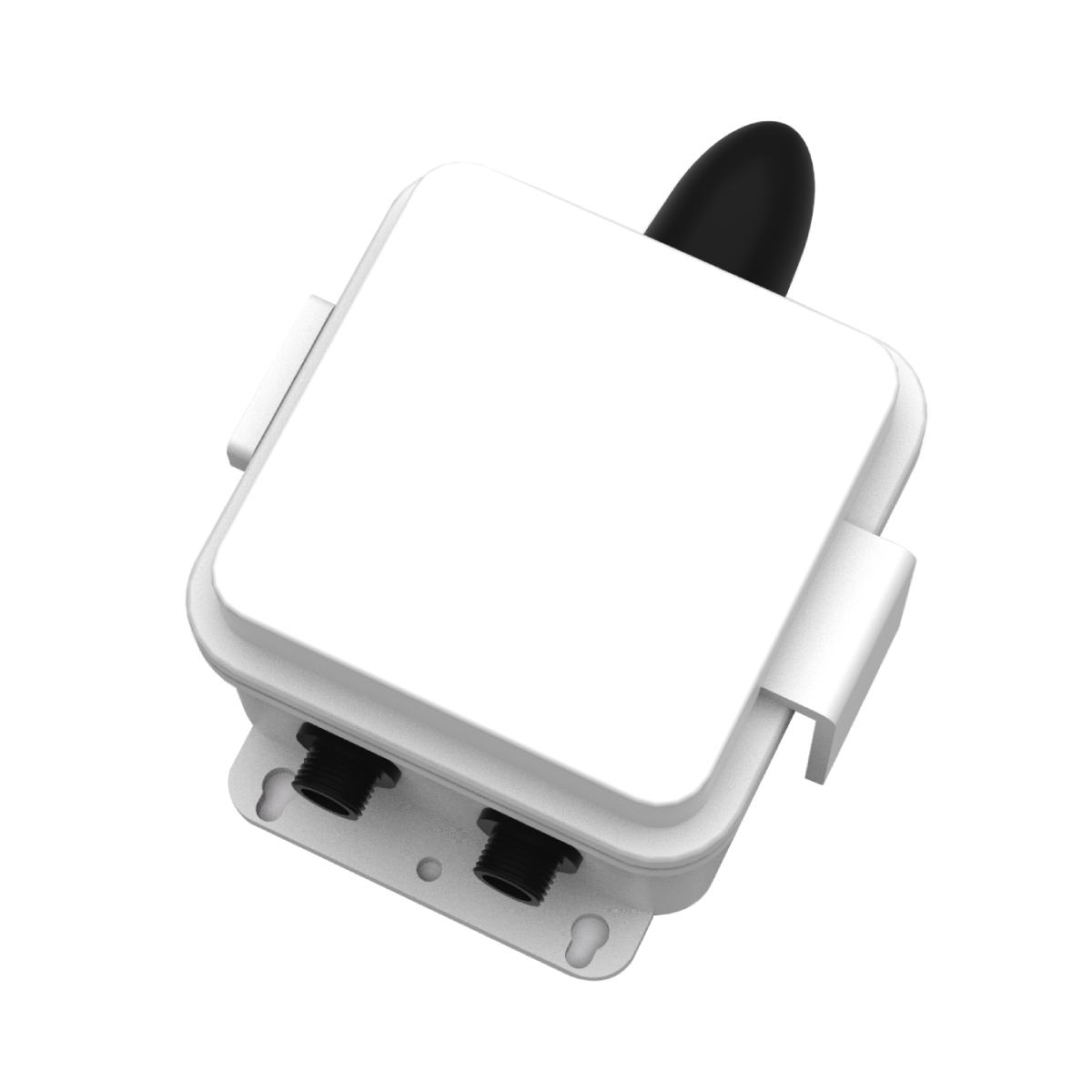

| Model | JJY-2458S-Z |
|---|---|
| Communication Method | 【4G】LTE-TDD B34/B38/B39/B40/B41； LTE-TDD B1/B3/B5/B8 |
| mobile data | Supports global SIM card data in 100+ countries |
| Sensor signal input | RS-485/4-20ma |
| Supply Voltage | DC 9-12V/15ma |
| PWR IN | DC12V 1A, 2P M12 F |
| SENSOR | RS485 A/B, DC12V OUT, 4P M12 F |
| Data Reporting Method | HTTP / MQTT encrypted reporting |
| Reporting Interval | 5 min / 12 h / software-configurable |
| Configuration Software | Windows B/S Architecture Platform Software / Android & iOS |
| Housing Material | ABS |
| Operating Temperature | -40°C to +75°C |
| Packaging Dims. & Wt. |

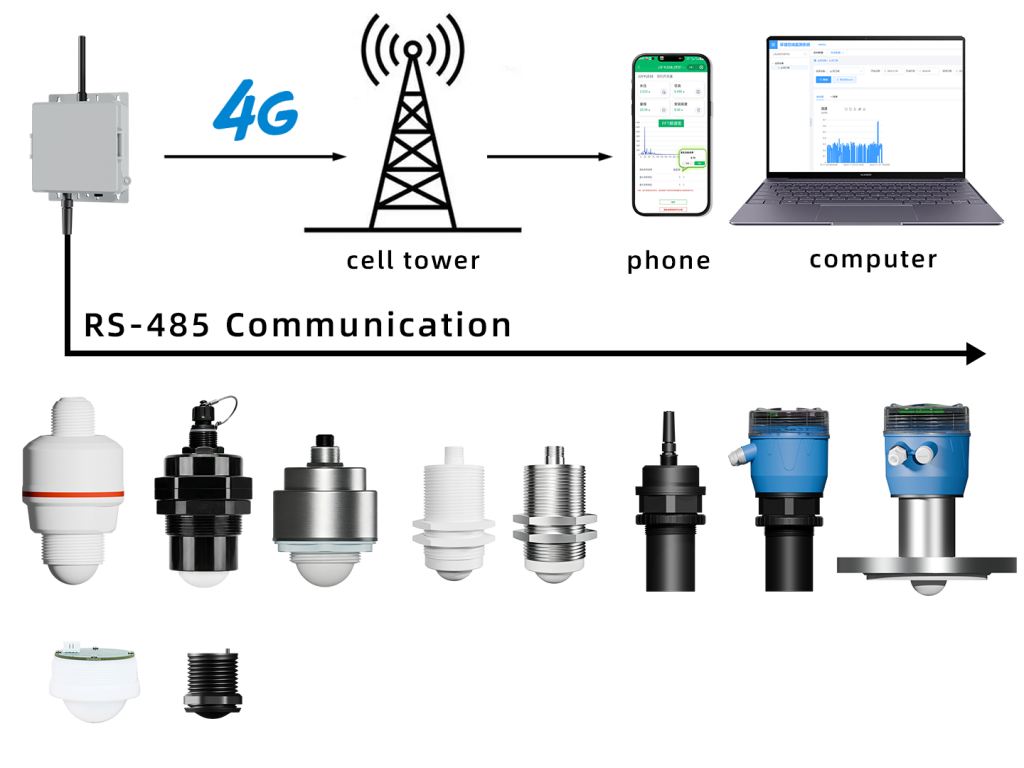

The 4G radar level gauge gateway collects readings from multiple radar / ultrasonic level gauges over one RS-485 bus and pushes them over 4G straight to the cloud — every tank shows up on your phone or computer, with no site visit and no cable run back to the office.
JiaJia Eye is an ISO 9001:2015 certified manufacturer in Shenzhen, established in 2015. We supply OEM/ODM buyers and instrument distributors across Southeast Asia — water treatment, palm oil, rubber, food & beverage — with remote level monitoring solutions, custom protocols and private labelling.
A single gateway supports 32 radar / ultrasonic level gauges at the same time. One RS-485 bus replaces thirty-two separate data connections — one SIM card, one cloud account, one dashboard for the whole site.
From the cloud you can push firmware upgrades, run false-echo (clutter) learning and change configuration parameters on every gauge behind the gateway — no technician travel, no on-site laptop.
The gateway accepts both types on the same unit: digital RS-485 radar level gauges and analogue 4-20 mA gauges, so you can add new digital sensors to an existing 4-20 mA installation without replacing anything.
Sites spread across a city or a plant where pulling network cable is impractical — each cluster gets one gateway and one 4G uplink.
Dozens of tanks reported together to one dashboard, with level trends used for stock control rather than manual dipping.
Remote locations with mains power and no fixed line — continuous level data uploaded over 4G, with historised curves for flood season.
| Item | Description |
|---|---|
| Product type | 4G data gateway for radar / ultrasonic level gauges |
| Sensor-side interface | RS-485 bus and 4-20 mA input – connects up to 32 radar / ultrasonic level gauges (digital RS-485 or analog 4-20 mA) on one gateway |
| Remote management | Over-the-air firmware upgrade, false-echo (clutter) learning and parameter configuration for every connected gauge – no site visit needed |
| Network uplink | 4G cellular, uploads data directly to the cloud platform |
| Remote access | Phone app and computer web dashboard — view all connected gauges in real time |
| Antenna | External 4G antenna (included) |

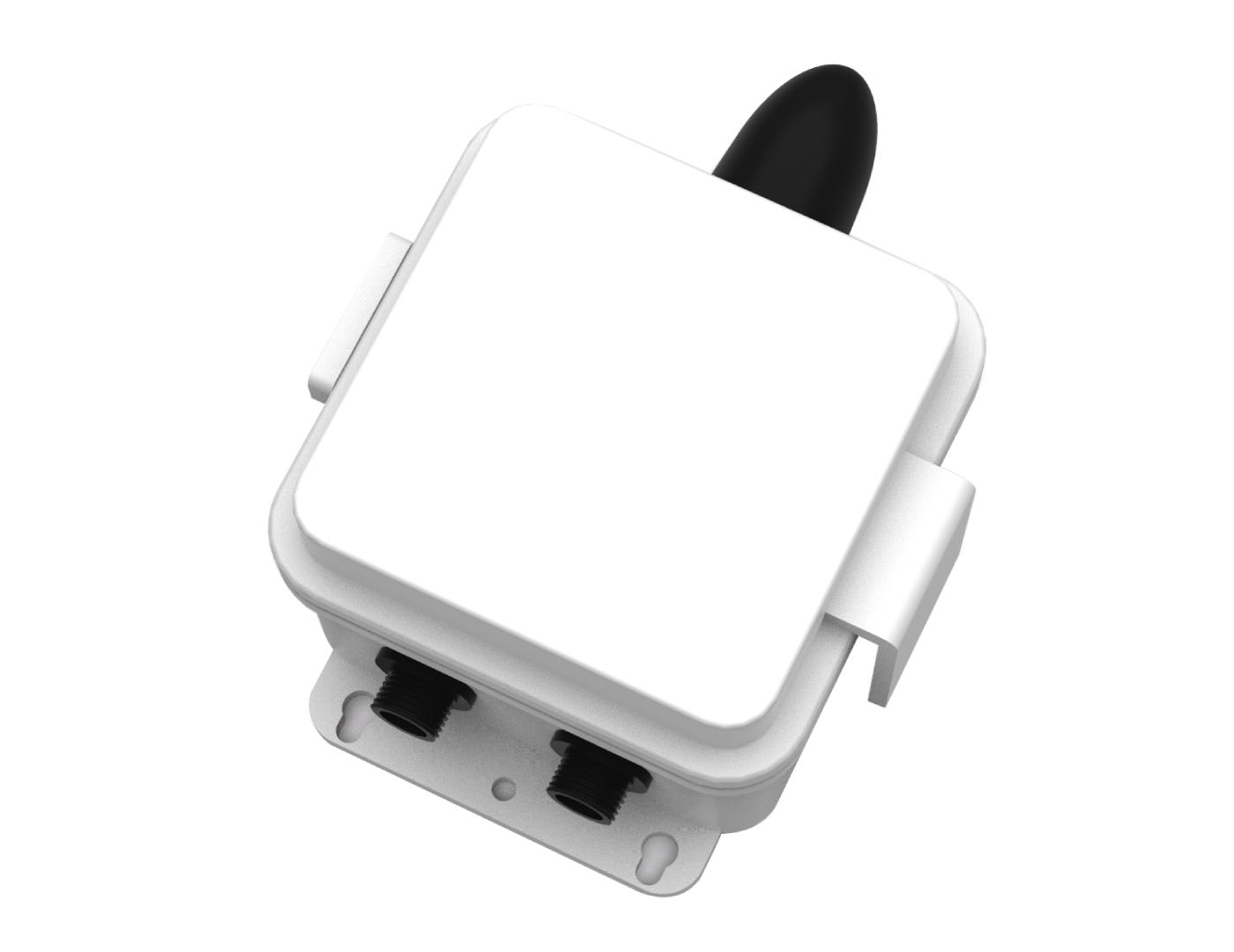

| Enclosure | Wall-mount industrial housing with sealed cable glands |
| Typical applications | Scattered tanks, wells, rivers and remote sites where running cables is impractical |
The gateway works with JiaJia Eye radar and ultrasonic level gauges on the RS-485 bus, including the 4-20 mA versions. Tell us your SIM preference — we can pre-install a data SIM or leave it open for your local carrier.
A single gateway handles up to 32 radar / ultrasonic level gauges on one RS-485 bus and reports them all to the cloud together. The exact count depends on your bus layout and polling interval — tell us your gauge list and we will size it.
Yes. The gateway carries both an RS-485 bus and 4-20 mA inputs, so digital RS-485 gauges and analogue 4-20 mA gauges can run side by side on one unit — useful when you extend an existing analogue installation with digital sensors.
Yes. From the cloud platform you can push firmware upgrades, run false-echo (clutter) learning and change configuration parameters for each connected gauge — no technician visit and no on-site laptop.
It teaches the gauge to ignore fixed reflections inside the tank — ladders, agitators, welds and joints — so only the real liquid surface is measured. On a site where the tank interior changes (a new mixer, a relocated ladder), you trigger a new learning cycle remotely from the cloud.
Data is pushed over 4G straight to our cloud platform; you view every connected tank on the phone app or the web dashboard in real time, with no cable run back to the office.
No. The gateway initiates the 4G connection to the cloud itself, so scattered tanks, wells and remote sites work without site networking or a static IP.
Either way. We can pre-install a data SIM before shipment, or leave the slot open so you use your own local carrier — which usually gives better coverage and cheaper tariffs at the destination country.
It is built for JiaJia Eye RS-485 and 4-20 mA level gauges. For third-party sensors, send us the protocol or the register map and our engineers will confirm compatibility — Modbus-RTU devices are usually straightforward.
One unit. There is no minimum order quantity: a single evaluation gateway, a 20-unit trial order and a 500-unit batch are all accepted.
1–20 units: dispatched within 2 working days from stock. 20–500 units: 1–4 weeks for a scheduled production run, depending on the current schedule. Customised versions follow exactly the same schedule — customisation does not extend the lead time.
Yes. Protocol adaptation, enclosure colour and private label on the housing and documentation are all available, together with OEM/ODM support for your own product line.
ISO 9001:2015 (certificate 02426Q00028R101, valid until 2029-01-15). CE certification is in preparation.
Dispatched within 2 working days of payment confirmation.
Depending on the production schedule: 1 week when a run is already planned, up to 4 weeks at peak, followed by configuration, ageing test and final inspection.
Customisation adds no extra lead time.
Tell us how many level gauges you need to connect, their output (RS-485 or 4-20 mA) and the quantity — our engineers reply within two working days with a quotation, a gateway configuration proposal or the integration documents you need.
Looking for the full range? Browse all radar level sensors →
Every file here is free — no registration and no email wall. Files marked Download open straight away; where the direct link is not live yet, the file is emailed to you within one working day.
RS-485 register map, Modbus-RTU frames and the remote commands used to upgrade firmware, re-range and re-map false echoes on the gauges behind the gateway.
Gateway installation, SIM card setup, wiring of RS-485 and 4-20 mA gauges, and binding to the cloud platform. The manual is being finalised — request it by email and it is sent within one working day.
How to register the gateway on the cloud platform, map each gauge to a tank, and issue upgrades, false-echo learning and parameter changes remotely.
Specification summary with the RS-485 bus layout, power requirements and enclosure drawing, for your project documentation.
Mounting the enclosure, wiring the RS-485 bus and the 4-20 mA inputs, and first cloud connection.
Coming soon
Need a datasheet, wiring diagram, integration guide or a manual in another language? Tell us what you need:
