| Model | JJY-YLB4S-47 |
|---|---|
| Communication Method | 【4G】LTE-TDD B34/B38/B39/B40/B41; LTE-TDD B1/B3/B5/B8 |
| mobile data | Supports global SIM card data in 100+ countries. |
| Data Upload Mode | Encrypted upload via HTTP/MQTT |
| Data Upload Interval | 5minute / 2 hours, 60+ days runtime without solar charging. |
| Accuracy / Beam Angle | ±2mm / Beam Angle ±2.75° |
| Range / Blind Zone | 0.05–40m / Radar Blind Zone 5cm |
| Prot. Class / Temp | IP68/ -40°C ~ 75°C |
| Housing Material | PC/Polycarbonate/PTFE |
| Solar Pane | 5V / 10W Cable length 1.7m |
| Charging Volt. / Battery Cap. | DC 5V/4.2V 15AH |
| Packaging Dims. & Wt. |

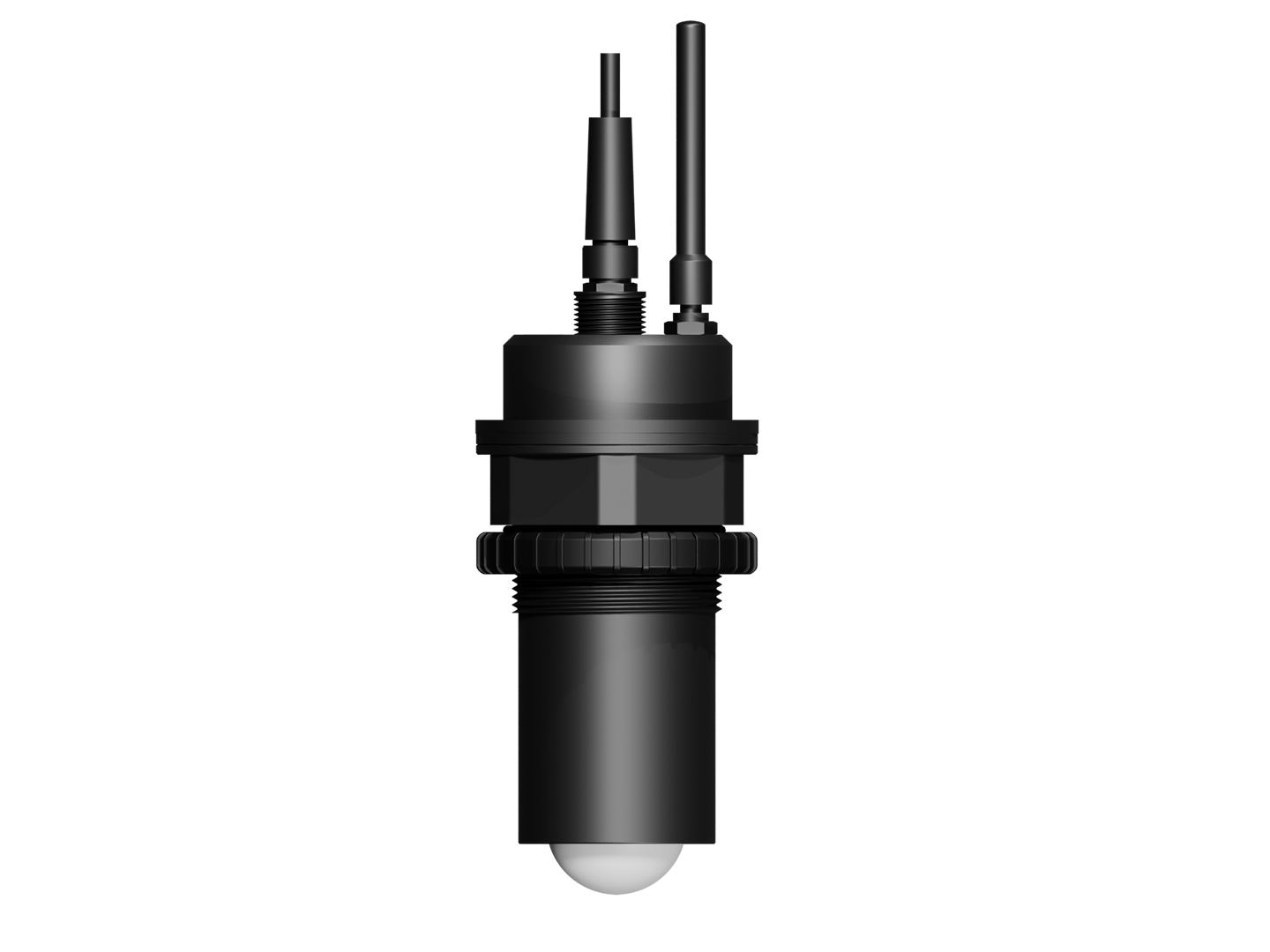

The JJY-YLB4S-47 is a 4G solar radar level gauge for remote pipes, tanks and open channels where no power or cable run exists. The built-in battery keeps it measuring for about 60 days without any sunlight, a 5 V / 7 W solar panel recharges it in the field (or top it up over any 5 V supply), and the 4G modem with a global SIM reports from 100+ countries — ±2 mm accuracy over a 40 m range, IP68 sealed. Ideal for off-grid private water tanks, plantations and rural utilities, and eligible for FORM E 0% import duty into ASEAN.
The internal 15 Ah battery carries the gauge through about 60 days of overcast or shaded weather with no solar input at all — so a week of rain or a north-facing mounting spot never takes the sensor offline. Data upload interval is configurable from 5 minutes to 2 hours to trade reporting frequency for battery life.

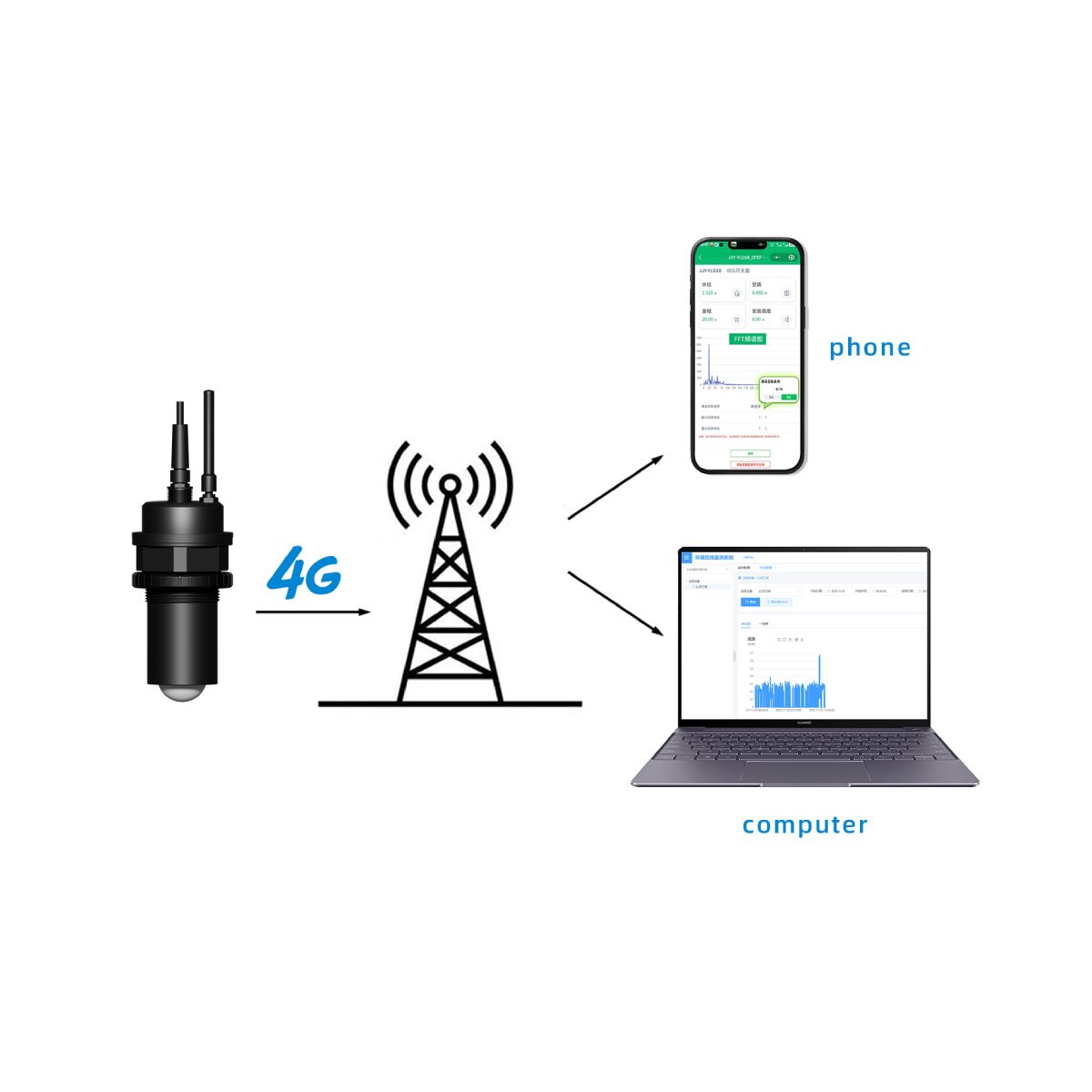

The LTE modem (TDD B34/B38/B39/B40/B41 + FDD B1/B3/B5/B8) works with a global SIM card covering more than 100 countries — one gauge, deployable across export projects and multi-country fleets without changing hardware. Data uploads encrypted over HTTP / MQTT, straight into your platform or ours.

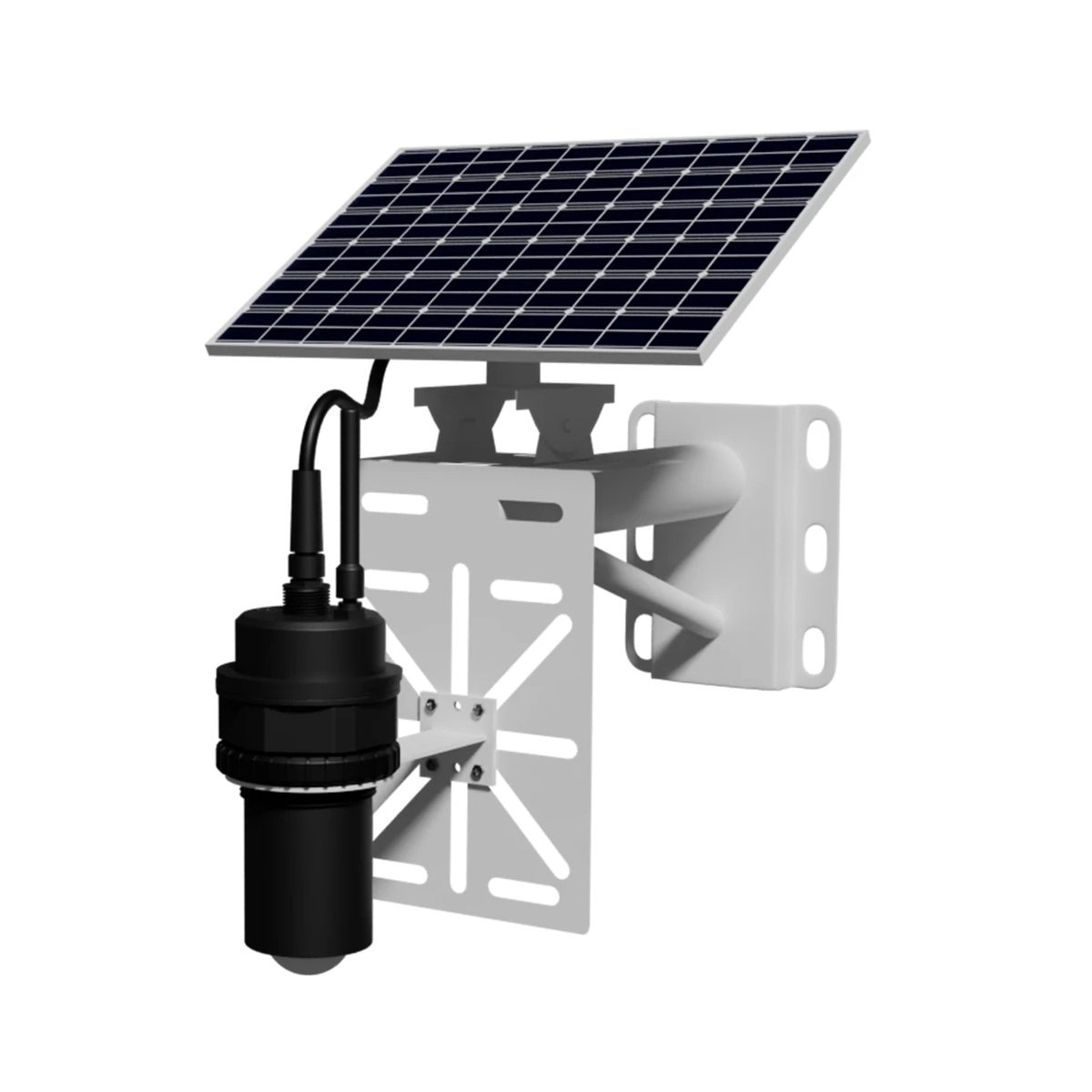

The 5 V / 7 W solar panel (1.7 m cable) keeps the battery topped up under normal daylight. No sun or panel in the wrong spot? Charge over any 5 V supply — a phone charger, a power bank or a site DC outlet. Power in, then forget about it.
The internal 15 Ah battery carries the gauge through about 60 days of overcast or shaded weather with no solar input at all. The 5 V / 7 W solar panel recharges it under normal daylight, or you top it up over any 5 V supply — a phone charger, a power bank or a site DC outlet. The data upload interval is configurable from 5 minutes to 2 hours to trade reporting frequency for battery life.
The LTE modem (FDD B1/B3/B5/B8 + TDD B34/B38/B39/B40/B41) works with a global SIM card covering more than 100 countries — one gauge deployable across export projects and multi-country fleets without changing hardware.
No. The built-in 4G modem reports over HTTP / MQTT straight to your platform or ours, with no cable run back to the office. Tell us your SIM preference (we can pre-install a data SIM or leave it open for your local carrier).
Yes. Using the RadarBLE app, we configure the transmitter’s Modbus protocol to match the protocol your PLC already uses — the existing PLC program stays untouched. You can also commission it from the RadarBLE app / mini program.

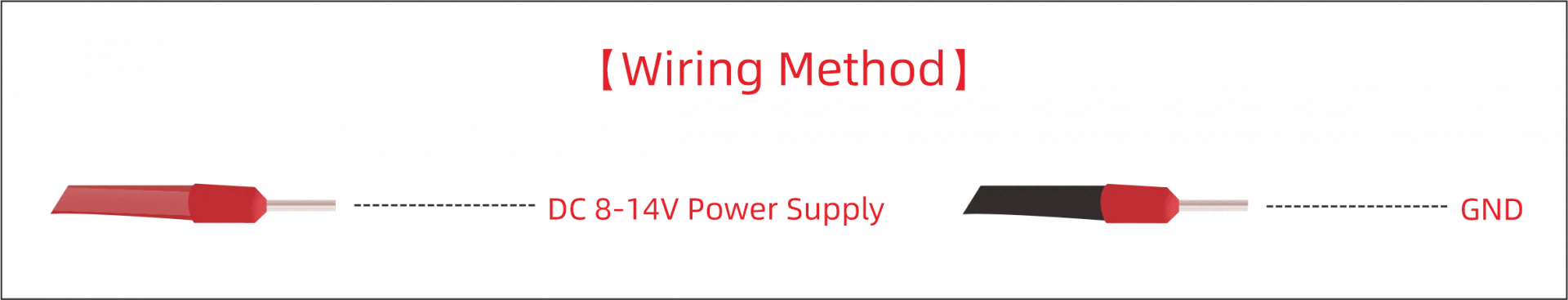

It uses an M20×1.5 thread with a G2″ boss and a 2-inch nut, and runs on DC 8–14 V. The IP68 sealed housing is rated −40 °C to 75 °C for outdoor and flooded installations.
One unit. There is no minimum order quantity: a single evaluation unit, a 20-unit trial order and a 500-unit batch are all accepted. Quantities under 20 units ship directly from stock; 20–500 units are scheduled into production.
1–20 units: dispatched within 2 working days from stock. 20–500 units: 1–4 weeks for a scheduled production run, depending on the current schedule. Customised versions follow exactly the same schedule — customisation does not extend the lead time.
Measuring range, M20×1.5 / G2 mounting, communication protocol and solar-panel cable length are all customisable. One free sample is provided — the buyer covers the freight.
ISO 9001:2015 (certificate 02426Q00028R101, valid until 2029-01-15). CE certification is in preparation.
Dispatched within 2 working days of payment confirmation.
Depending on the production schedule: 1 week when a run is already planned, up to 4 weeks at peak, followed by calibration, 48 h burn-in and waterproof testing.
Customisation adds no extra lead time.
Tell us the tank, the medium and the quantity — we answer with a quotation, datasheet and lead time within two working days.
✅ Your enquiry has been sent successfully
Thank you! We reply within two working days. If it is urgent, WhatsApp us or email [email protected].
Looking for the full range? Browse all radar level sensors →
Every file here is free — no registration, no forms. Files marked Download open straight away; product-specific documents are being updated and will be added shortly.
Installation, wiring, parameter configuration and data-platform setup for the 4G solar radar level gauge.
Frame format, command set and the HTTP / MQTT data-payload definition used for cloud upload.
STP solid of the housing and bracket for pole-mount and tank-side design.
In preparation
Parameter setup, upload-interval configuration, range and echo calibration, output scaling and data logging from a Windows PC.
Full specification table — measuring range, blind zone, accuracy, beam angle, battery capacity, solar panel, 4G bands and housing material on one page.
Coming soon

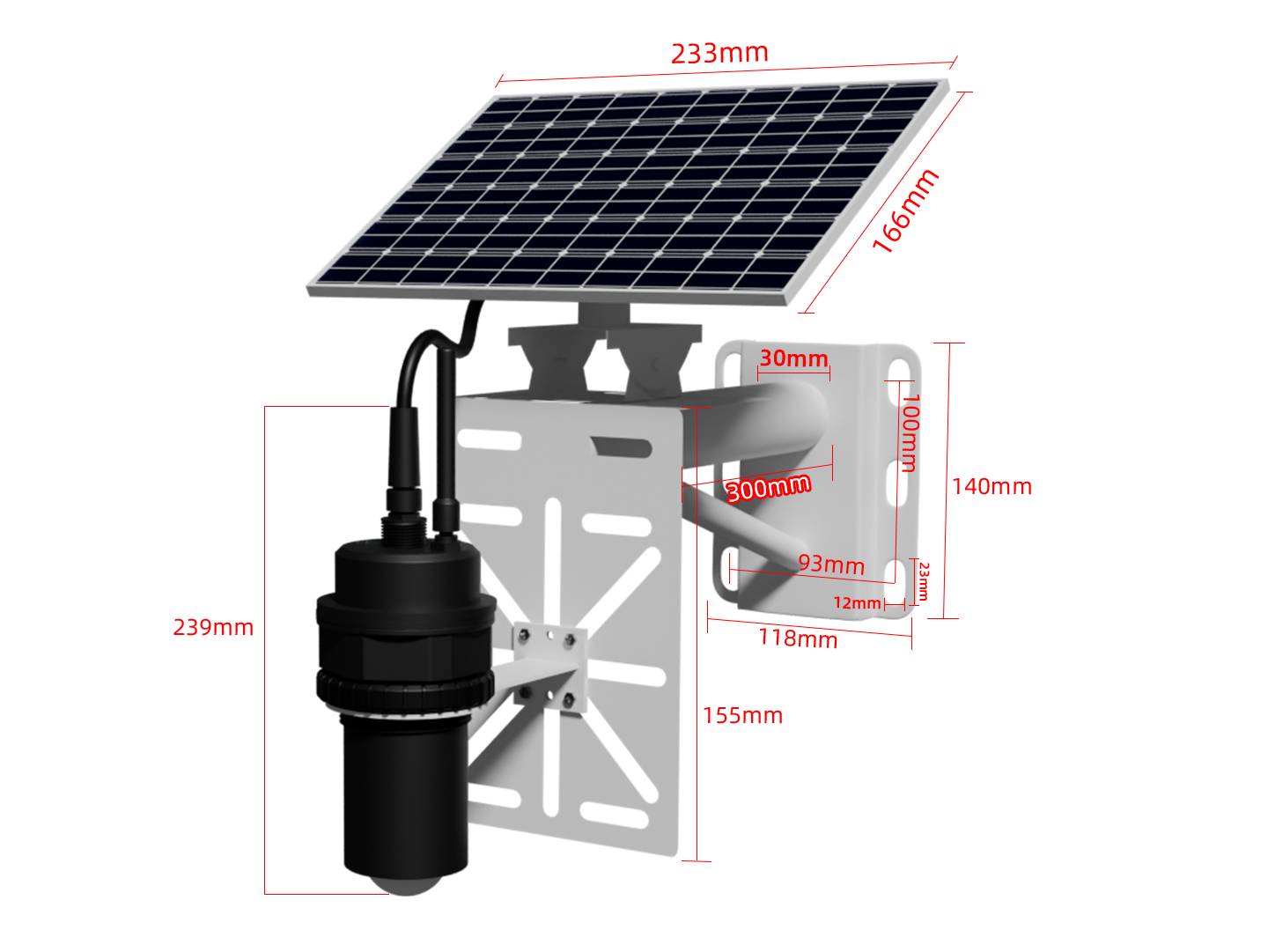

Outline drawing with body diameter, mounting thread, antenna height and bracket envelope — for planning the pole mount before the gauge arrives.
Coming soon
Pair the gauge, configure parameters and monitor readings from your phone.
▶ Watch on YouTube
Need a test report, a calibration certificate or a manual in another language? Call us and tell us what you need:
