| Model | JJY-YLD158DP |
|---|---|
| Sensor signal input | radar level transmitter RS-485 |
| Signal output | 4-20mA 3-wire System/RS485 |
| Operating voltage | AC 220V |
| Sampling Frequency | 500ms/Configurable |
| Measurement Accuracy | ±2mm |
| Control interlock | Contact rating: 250 VAC / 4 A or 30 VDC / 4 A (2 channels) |
| Housing Material | Aluminum Alloy |
| Operating Temperature | –40 °C to +75 °C |
| Packaging Dims. & Wt. |

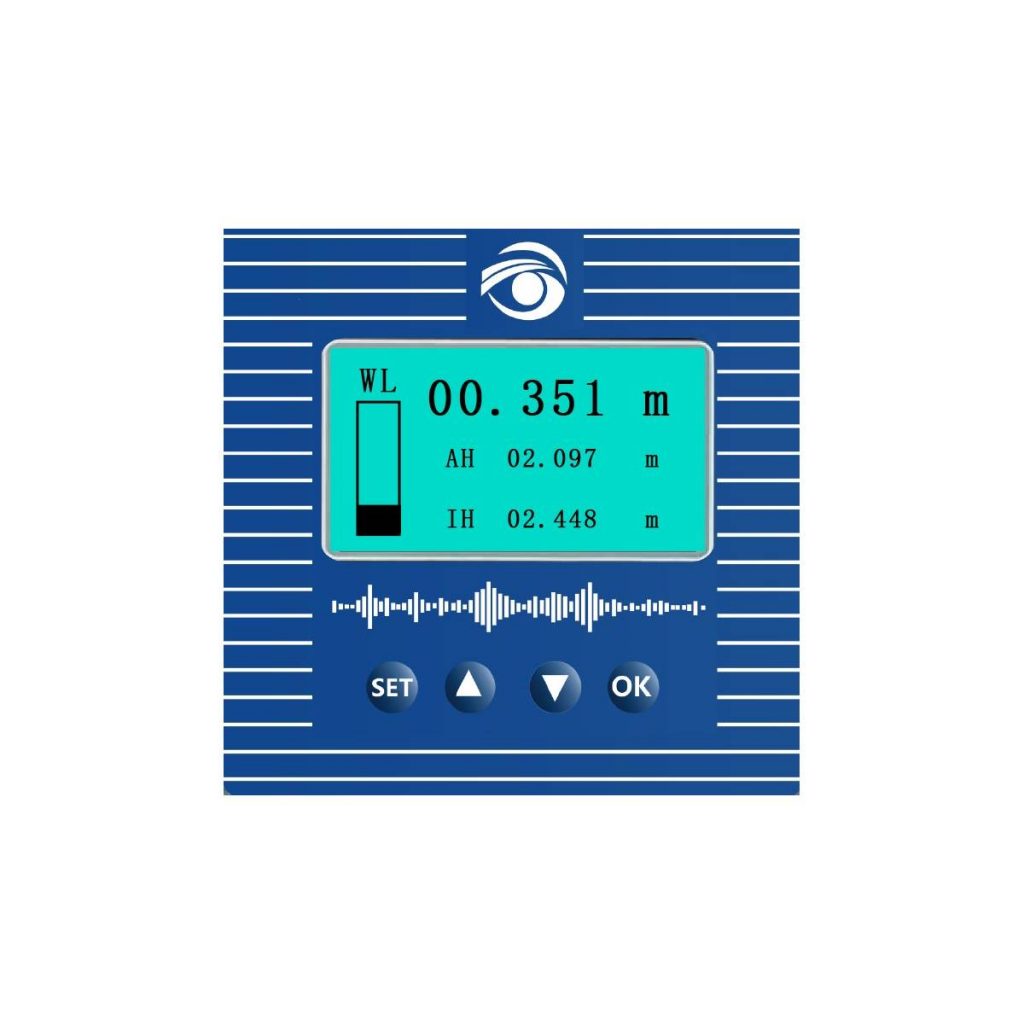

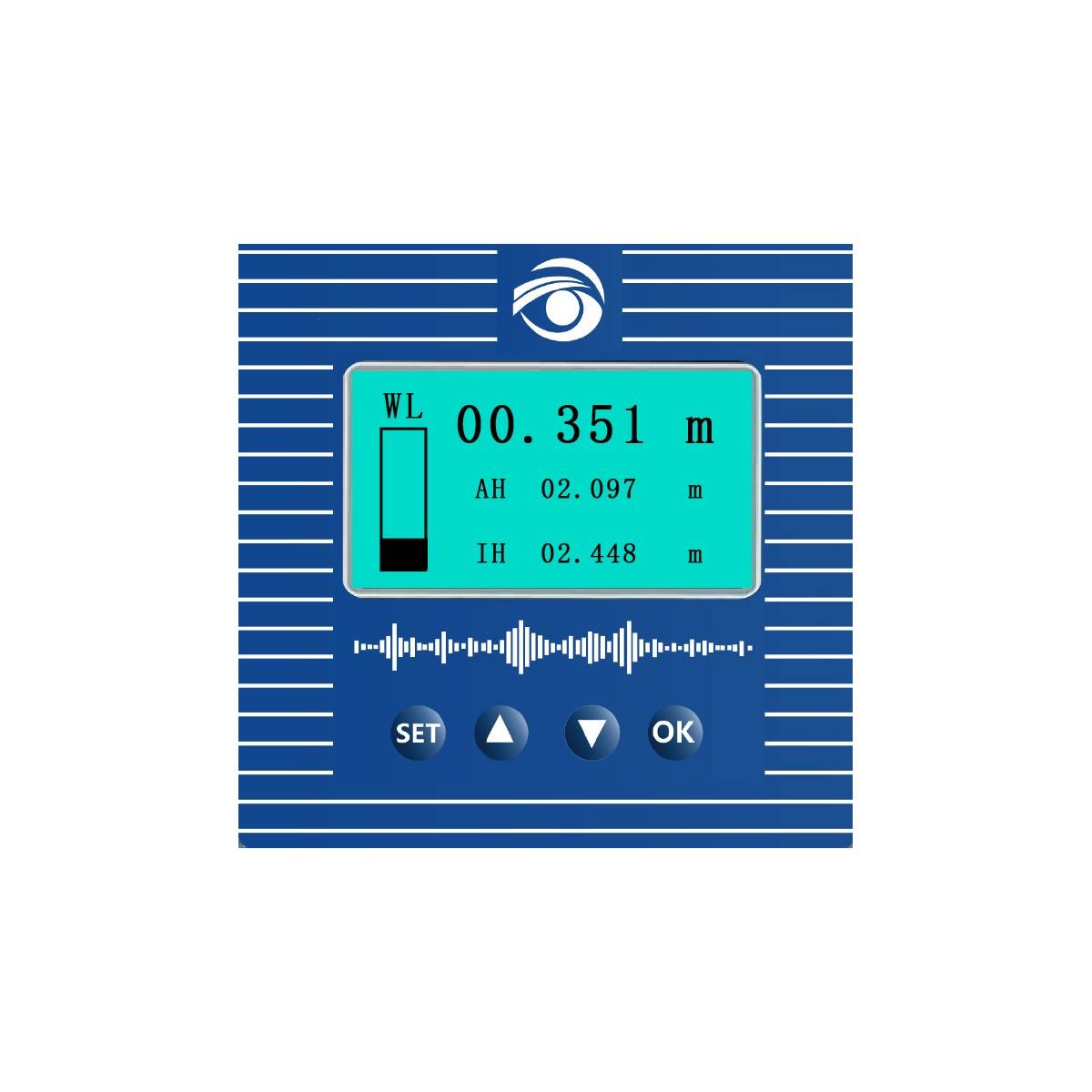

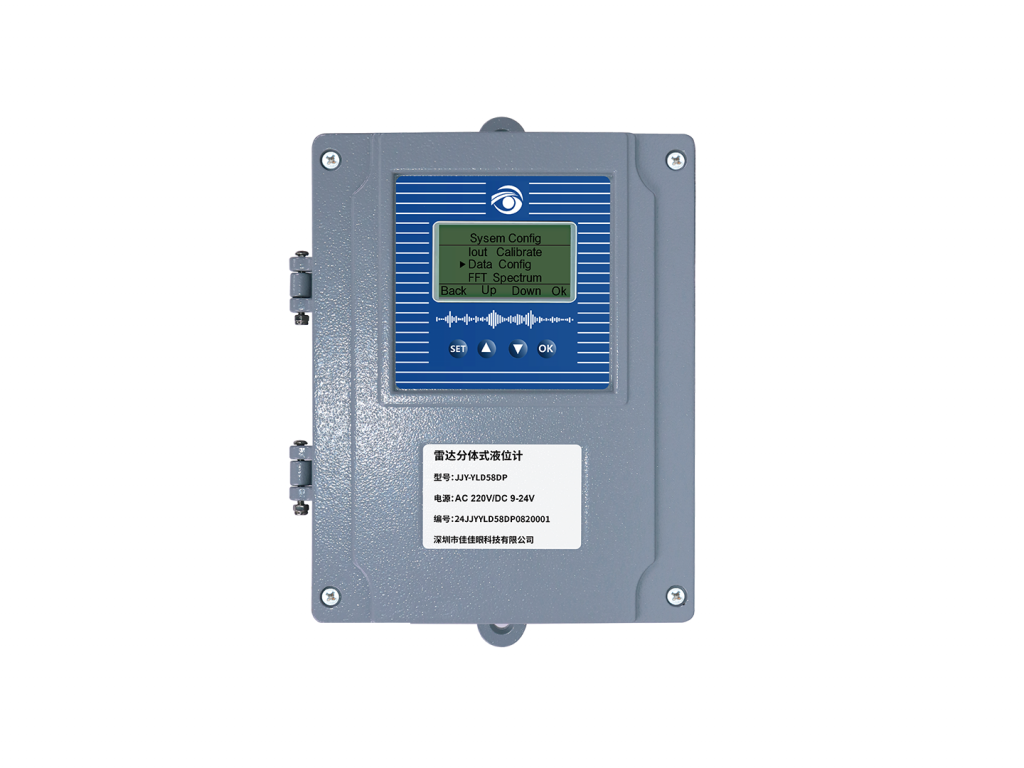

The JJY-YLD158DP is a remote level indicator for radar level gauges. It connects straight to your radar level transmitter, shows the live level on a backlit LCD, and adds two switch outputs plus RS-485 and 4–20 mA so you can drive a pump, feed a PLC or push data to a SCADA/HMI — all from one wall-mounted unit.
Plug the unit straight into the JJY radar level transmitter and the live level shows on the backlit LCD. No separate converter, gateway or controller is needed — pair the sensor, set the range from the keypad, and the reading is there.

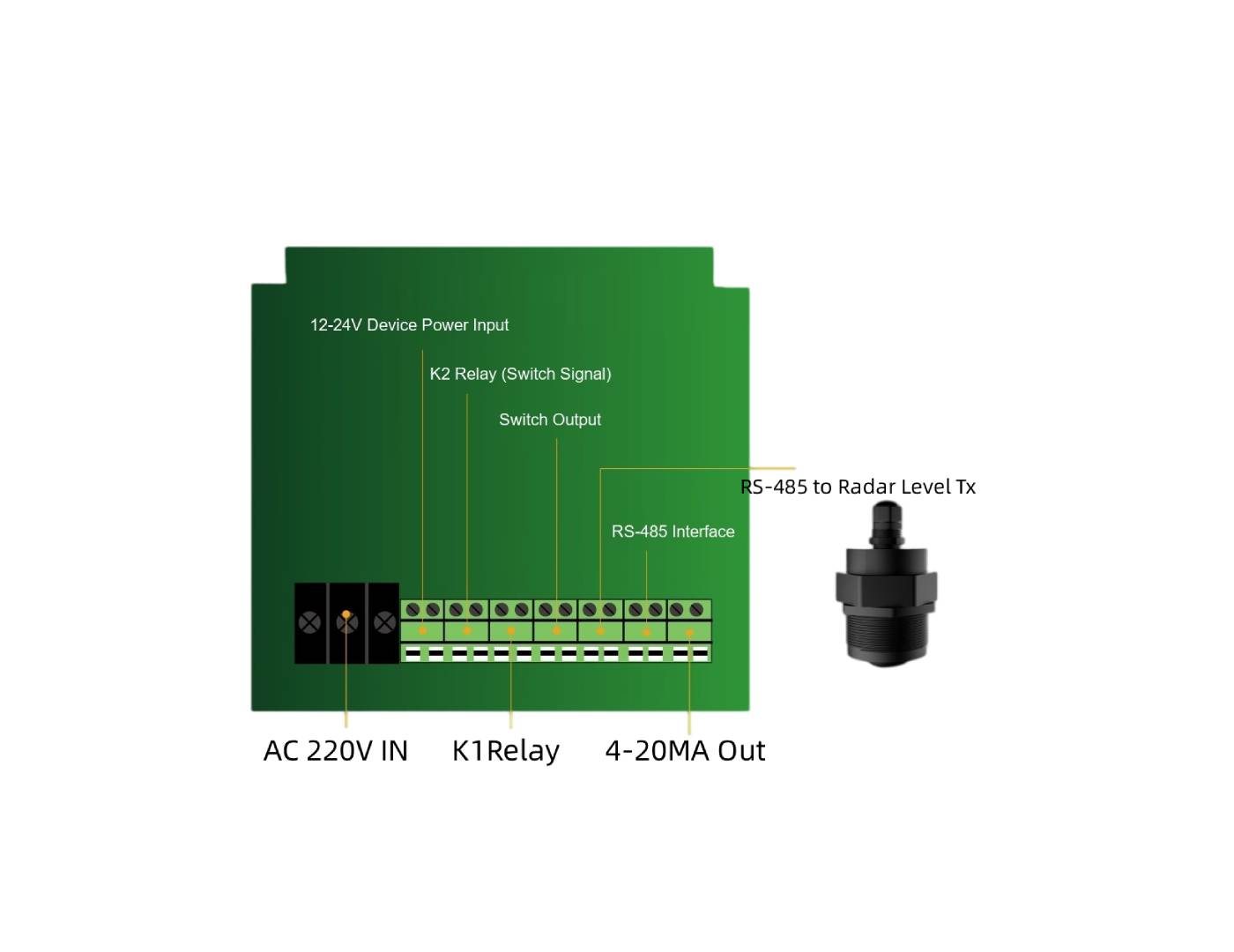

Two independent switch (relay) outputs let you trigger a pump or valve on high and low level. Wire them to your motor starter and the indicator becomes the level controller — alarm and automation in one box.
Standard RS-485 (Modbus) connects to your SCADA, HMI or BMS, while a calibrated 4–20 mA current loop feeds a PLC or analog recorder. Integrate the level into any existing system without custom hardware.
Looking for the full range? Browse all radar level sensors →
Every file here is free — no registration, no forms. Files marked Download open straight away; product-specific documents are being updated and will be added shortly.
Mechanical mounting, wiring, parameter configuration and the upper-computer software setup for the JJY-YLD158DP remote level indicator.
Frame format and command set for the RS-485 interface. A custom text protocol or Modbus register map can be written for integration projects.

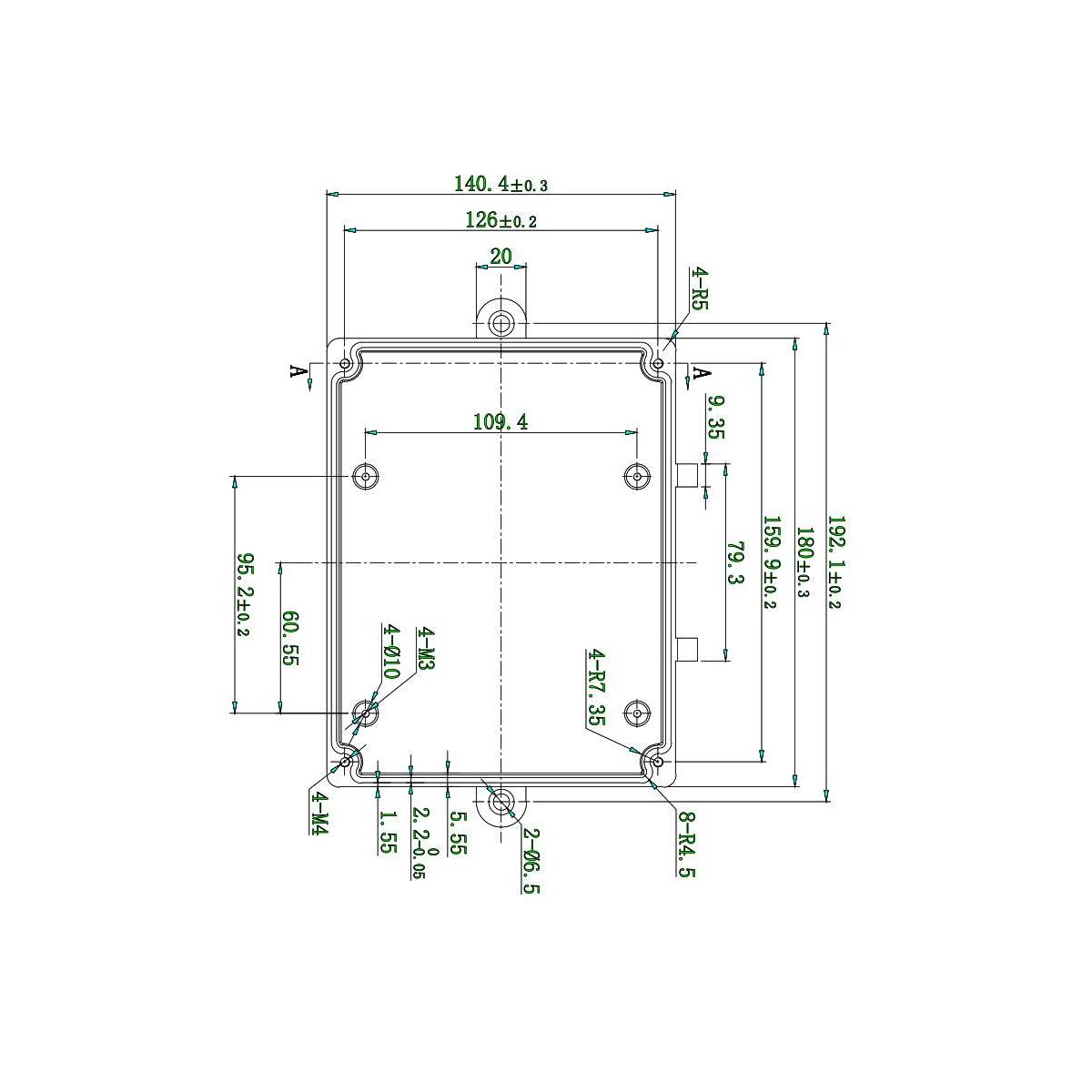

STP solid of the indicator for enclosure and panel-mount design. Ask us for the exact model if you need a different boss or thread.
Parameter setup, sampling-interval setting, range calibration, data logging and firmware upgrade from a Windows PC.
Search RadarBLE on Google Play, or install the APK. On-site pairing, output switching, configuration and live readings from your phone.
Search RadarBLE in the App Store. On-site pairing, output switching, configuration and live readings from your iPhone
Full specification table — measuring range, blind zone, accuracy, beam angle, supply, current draw and dimensions on one page.
Coming soon
Pair the gauge, configure parameters and monitor readings from your phone.
Need a test report, a calibration certificate or a manual in another language? Call us and tell us what you need:
