| Model | JJY-YLD128D-1.5 |
|---|---|
| Communication Method | 【RS485】 / 【4-20mA / 2-Wire】 |
| Operating Voltage | 【RS485:9–24V】 / 【4-20mA:24V】 |
| Average Current | 【RS485:12V /11MA 】 / 【4-20mA :24V 3.3mA】 |
| Accuracy / Beam Angle | ±1mm / Beam Angle ±2.75° |
| Comm. Protocol | Customizable Modbus / Text Protocol |
| Range / Blind Zone | 0.05–40m / Radar Blind Zone 5cm |
| Housing Material / Cable | 304+PTFE/ M12 Waterproof Cordset, 5 m |
| Prot. Class / Temp | IP68/ -40°C ~ 75°C |

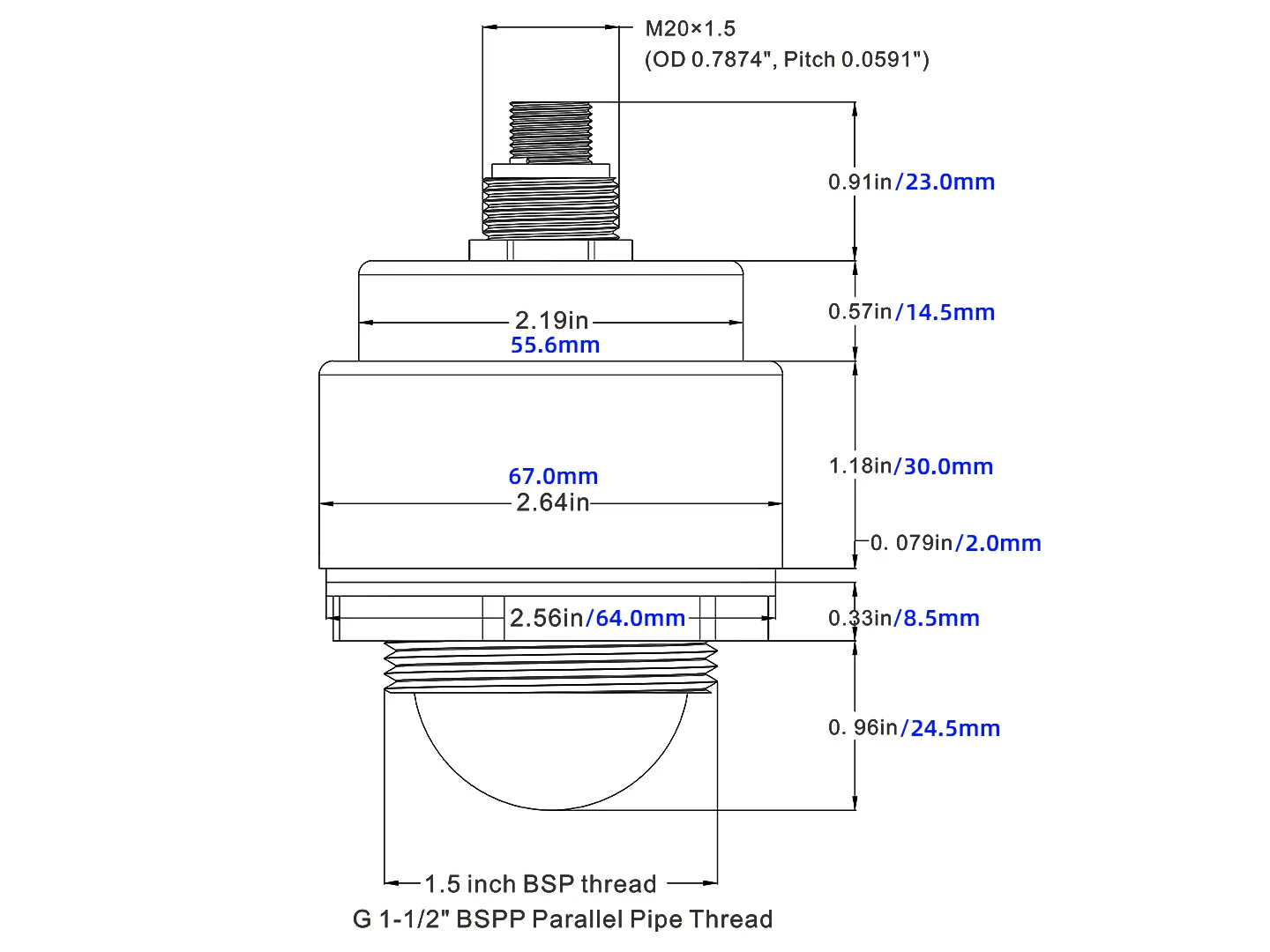

| Mounting Thread | Upper M20 / Lower G1½ |
| Configuration Software | Windows Serial Port Debugger / Android & iOS — RadarBLE app |
| Packaging Dims. & Wt. | 150*150*180mm/920g |

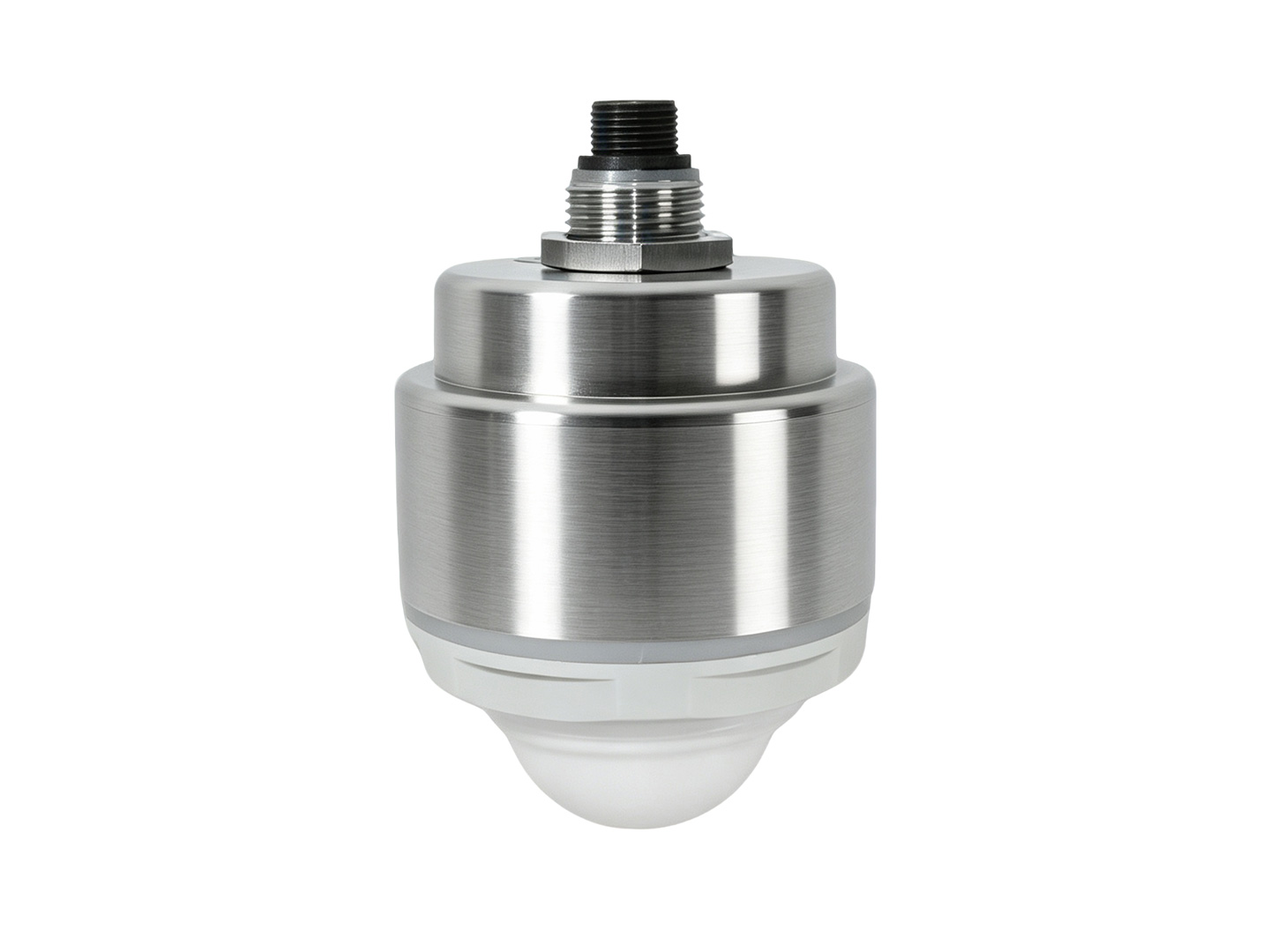

The JJY-YLD128D-1.5 is an 80 GHz FMCW radar level transmitter built in a full 304 stainless-steel housing with a PTFE (Teflon) antenna, measuring from 0.05 m to 40 m with ±1 mm accuracy and a narrow ±2.75° beam angle. It is supplied in two output versions — RS485 Modbus-RTU or a 2-wire 4-20 mA loop — and every parameter is set over Bluetooth from the free RadarBLE app (Android & iOS), so no PC is needed on site. The metal housing and the chemically inert PTFE antenna are rated IP68 for corrosive liquids, food-grade vessels and outdoor installations.
JiaJia Eye is an ISO 9001:2015 certified manufacturer in Shenzhen, established in 2015. We supply OEM/ODM buyers and instrument distributors across Southeast Asia — water treatment, chemicals, palm oil, food & beverage — with free samples, custom measuring ranges, custom protocols and private labelling.
The whole enclosure is machined from 304 stainless steel and the radar antenna face is PTFE (Teflon) — the wetted face is chemically inert and food-safe, so the transmitter handles acids, alkalis, oils and potable water without corrosion or contamination. Metal housing also means it survives knocks, pressure washing and outdoor UV exposure that a plastic body will not.
FMCW measurement resolves the liquid surface to ±1 mm, with a ±2.75° beam that stays clear of sidewalls, ladders and internal pipework. Accuracy is held across the full 0.05–40 m range, with a 5 cm blind zone right at the antenna.
Install RadarBLE from Google Play or the App Store, pair with the transmitter and set range, output mode, filtering, damping and calibration from your phone, standing next to the tank. A Windows upper-computer tool is also free to download for bench configuration, firmware upgrades and batch setup.
Acid and alkali tanks, dosing skids and chemical storage, where a PTFE antenna face and a 304 SS body are what keep the gauge alive.
Food-grade vessels, brewing and dairy tanks, RO and purified-water systems — inert wetted materials with no plastic in contact with the product.

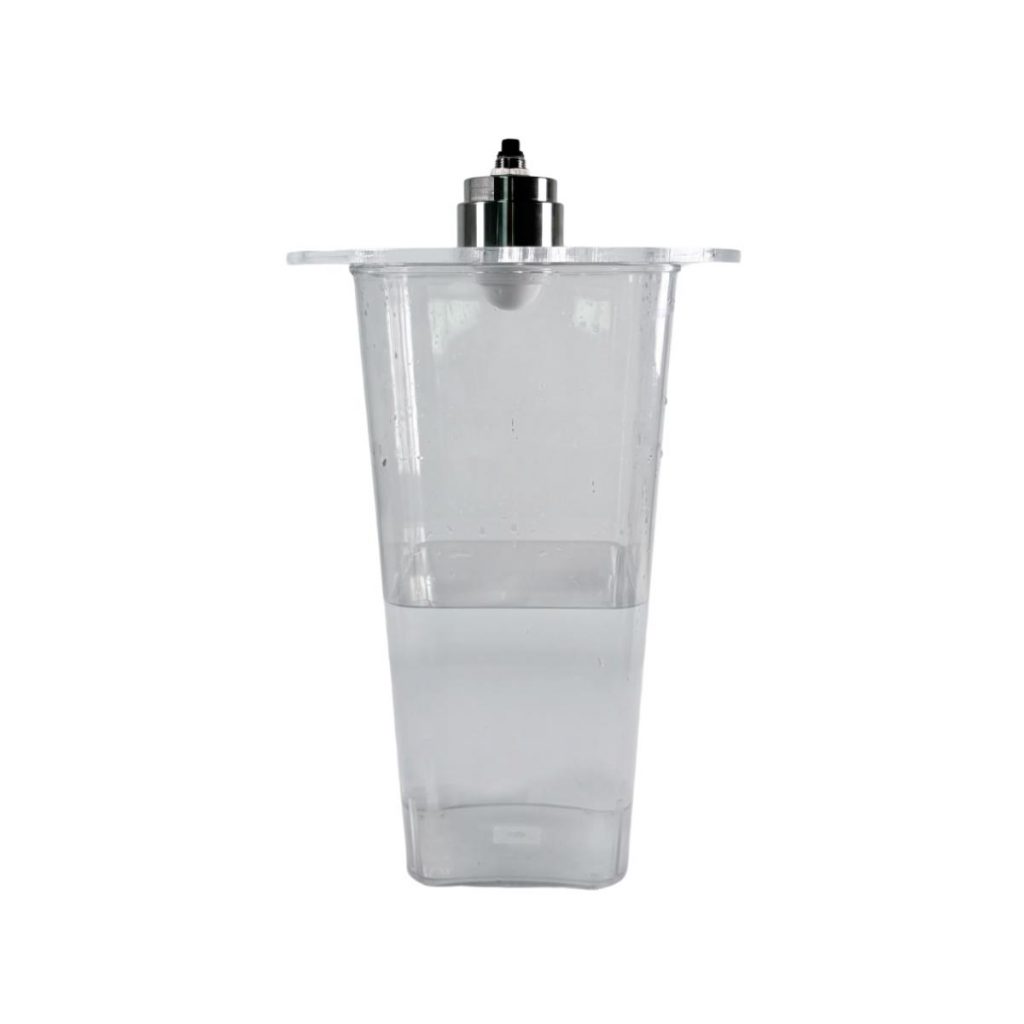

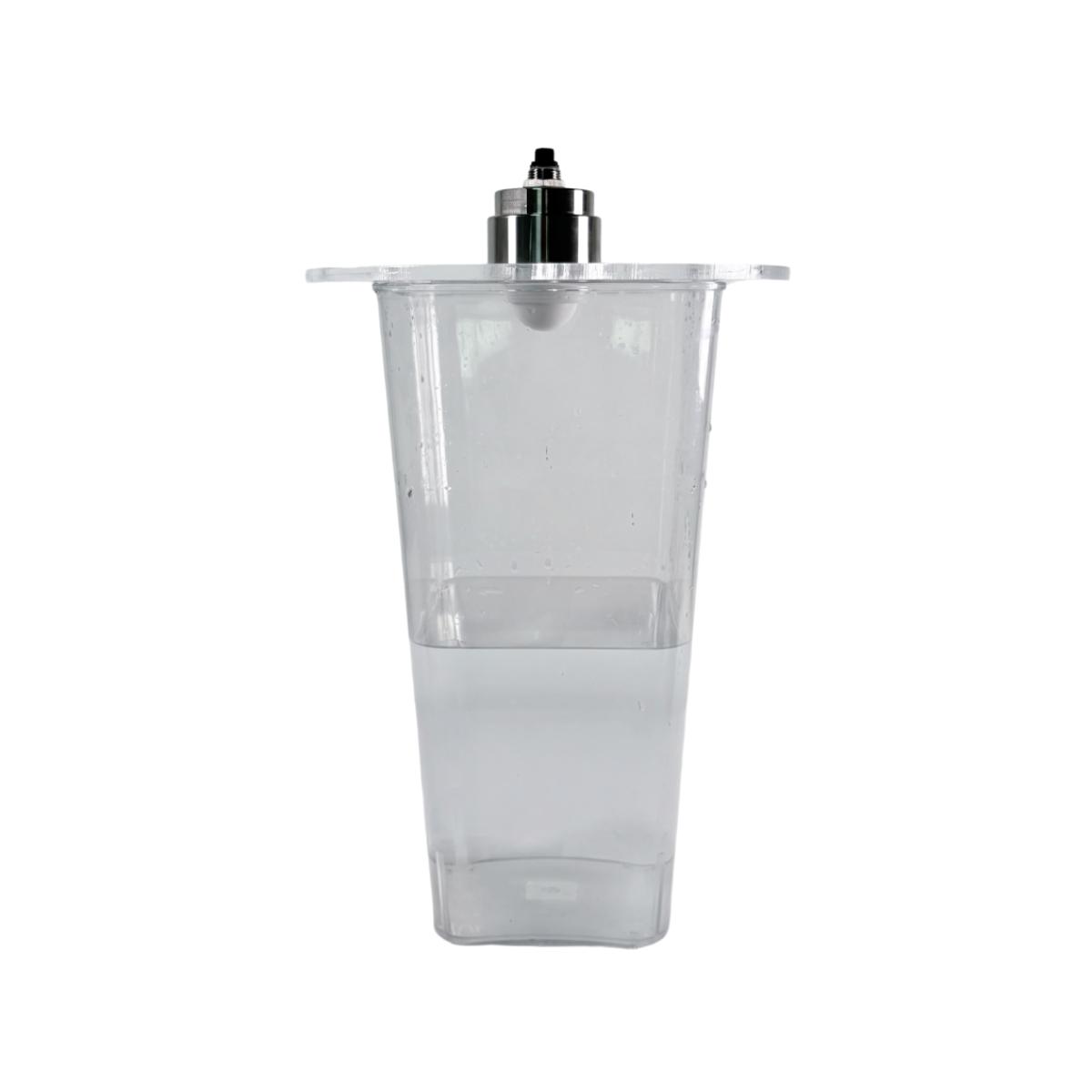

Contactless measurement in tall vessels, deep wells and open reservoirs, with an IP68 metal housing for rain, wash-down and flooded pits.
Tell us if you also need a mounting nut or an adapter for a thread other than M20 / G1½ — both are optional extras.
Yes — the enclosure is 304 stainless steel, not plated plastic, and the antenna face is PTFE (Teflon). PTFE is chemically inert and food-safe, so acids, alkalis, solvents and oils attack neither the antenna nor the seal, and nothing leaches into potable water. The steel body takes the mechanical abuse and the UV that a polycarbonate housing will not.
It is the ranging resolution of the FMCW measurement, held across 0.05–40 m with a ±2.75° beam and a 5 cm blind zone at the antenna. In practice the reading stays within a millimetre of the true surface as long as the beam has a clear path — that is why false echo masking matters more than the number on the datasheet.
No. Install RadarBLE from Google Play or the App Store, pair over Bluetooth and set range, output mode, damping and calibration from your phone while you stand at the tank. A free Windows upper-computer tool is also available for bench configuration and firmware upgrades.
The transmitter is supplied in one of two output versions: RS485 (Modbus-RTU, 9–24 V) or a 2-wire 4-20 mA loop (24 V). Choose the one your PLC, data logger or indicator expects when you order; the protocol on the RS485 version can be customised to Modbus or a simple text protocol for OEM projects.
0.05 m to 40 m from the antenna face, with a 5 cm blind zone directly at the antenna — keep the highest expected level at least 5 cm below the antenna and the reading stays linear over the rest of the tank.
One unit. There is no minimum order quantity: a single evaluation unit, a 20-unit trial order and a 500-unit batch are all accepted. Quantities under 20 units ship directly from stock; 20–500 units are scheduled into production.
1–20 units: dispatched within 2 working days from stock. 20–500 units: 1–4 weeks for a scheduled production run, depending on the current schedule. Customised versions (range, thread, protocol, housing, private label) follow exactly the same schedule — customisation does not extend the lead time.
Yes to all. Measuring range, mounting thread (M20 / G1½ as standard) and communication protocol are all customisable, and the 5 m cable can be built to any length you need. One free sample is provided — the buyer covers the freight.
ISO 9001:2015 (certificate 02426Q00028R101, valid until 2029-01-15). CE certification is in preparation.
Dispatched within 2 working days of payment confirmation.
Depending on the production schedule: 1 week when a run is already planned, up to 4 weeks at peak, followed by calibration, 48 h burn-in and waterproof testing.
Customisation adds no extra lead time.
Tell us the tank height, output signal and quantity — our engineers reply within two working days with a quotation, a sample arrangement or the 3D files for your enclosure design.
Looking for the full range? Browse all radar level sensors →
Every file here is free — no registration and no email wall. Files marked Download open straight away; where the direct link is not live yet, the file is emailed to you within one working day.
Installation, wiring, parameter configuration and Bluetooth setup with the RadarBLE app for the 1.5-inch metal-housing transmitter.
Modbus-RTU register map for the RS-485 version. A custom text protocol can be written for OEM projects.
STP solid of the radar housing for enclosure and mounting-boss design. Standard thread is upper M20 / lower G1½ — ask us for the exact model if you need it.
Parameter setup, data logging, range calibration and firmware upgrade from a Windows PC.
Search RadarBLE on Google Play, or install the APK. On-site pairing, output switching, false echo mapping and live readings from your phone.
Search RadarBLE in the App Store. On-site pairing, output switching, false echo mapping and live readings from your iPhone
Wiring, COM port settings, parameter setup and live data view.
Watch on YouTube
Pair the transmitter, map out false echoes and monitor readings from your phone.
RadarBLE (iOS) availability: United States, Canada, Germany, France, United Kingdom, Italy, Spain, Greece, Japan, South Korea, Australia, New Zealand, Singapore, Malaysia, Thailand, Philippines, Indonesia, Vietnam, Mexico, Brazil, Saudi Arabia, United Arab Emirates, Turkey, Mainland China, Hong Kong (China).
Need a datasheet, 3D file, test report or a manual in another language? Tell us what you need:
