Three things that decide whether a radar sensor fits inside your product — solved.
It reads to ±2 mm across its full 0.05–10 m range, so your finished device reports level with the precision engineers trust for batching, inventory and process control.

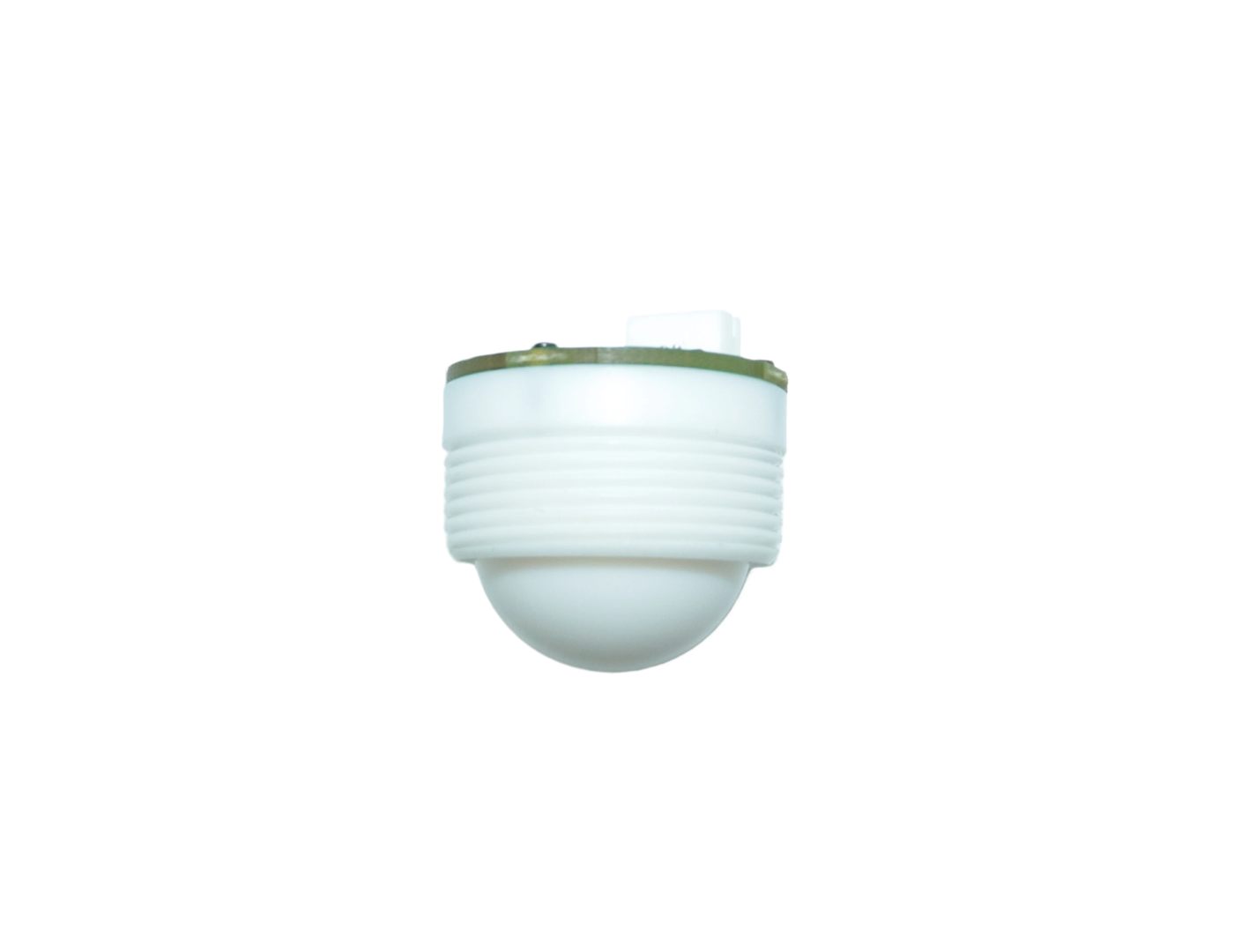

Ø32 mm body with an M32×1.5 thread — the same size as a cable gland, not an instrument. It drops straight into tight enclosures and thin-wall housings where a full-size radar has no room.
Supplied as a bare module with full developer docs — dimension drawing, wiring diagram, protocol and sample code. Build it behind your own M32 opening and ship under your name; we stay your sensor supplier.
Real hardware, real dimensions, real integration files — not stock renders.
Manufacturing & test — click to play
OEM/ODM manufacturer since 2015
Everything required to drop it into a design.
| Model | JJY-YLD138M-32 |
|---|---|
| Frequency | 80 GHz FMCW |
| Range | 0.05 – 10 m |
| Blind zone | 5 cm |
| Accuracy | ±2 mm |
| Beam angle | ±2.75° |
| Output | TTL UART / RS-485 |
| Protocol | Customizable Modbus / Text |
| Operating voltage | 2.8 – 3 V |
| Operating temp. | −40 °C ~ 75 °C |
| Thread / body | M32×1.5 / Ø32 mm |

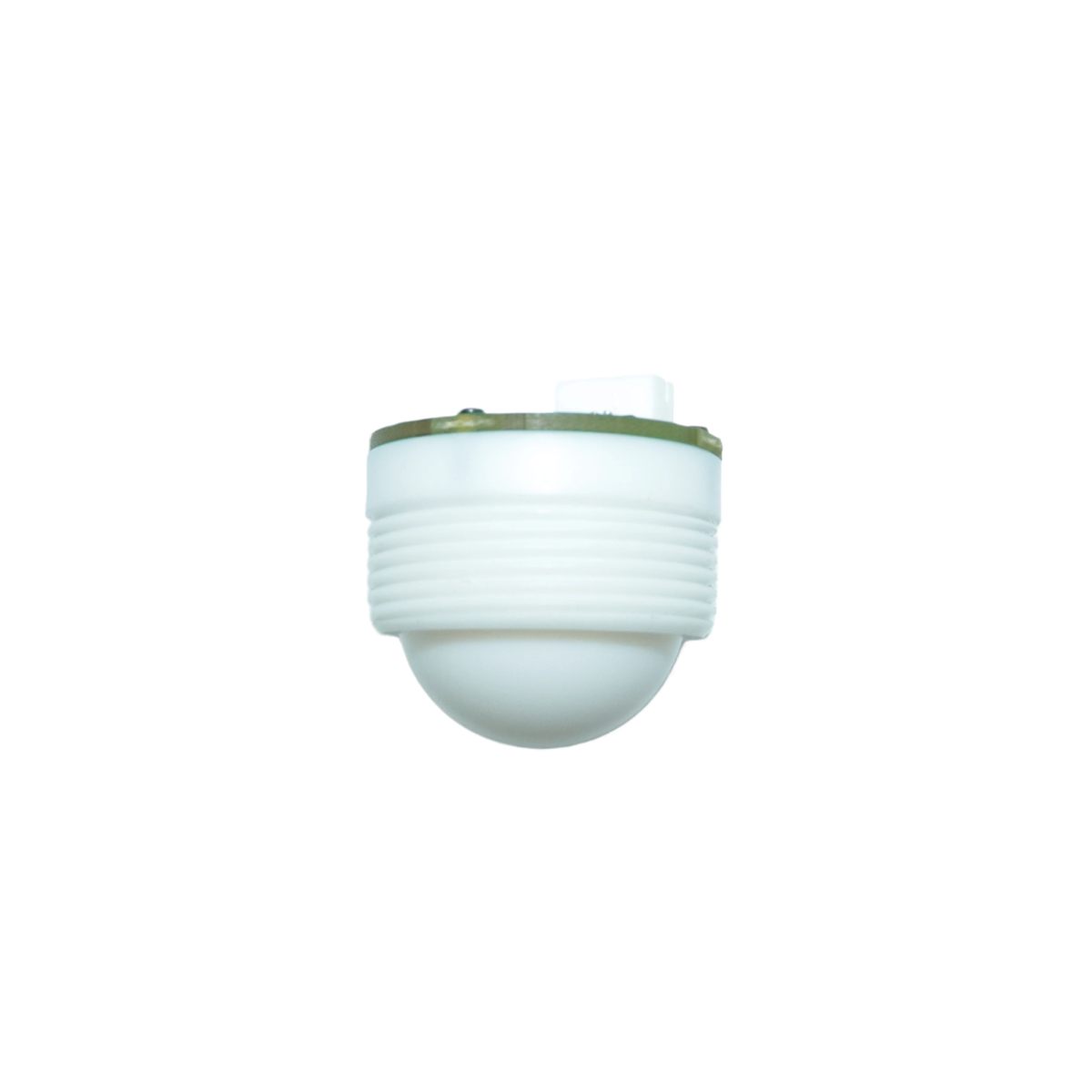

| Antenna | PTFE lens, PH2.0 4P cable 0.3 m |
| Packaging | 50 × 70 × 100 mm / 60 g |

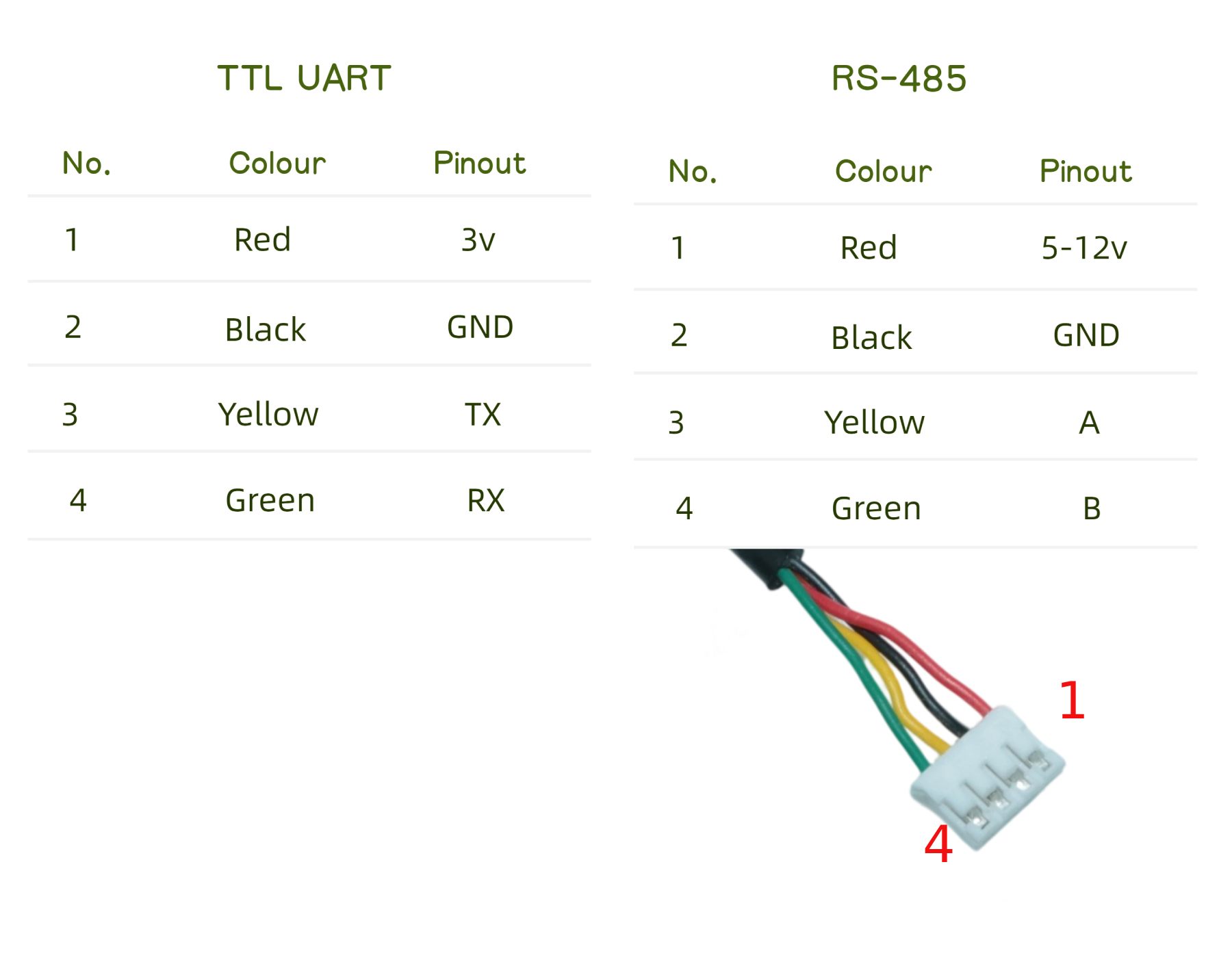

Get the dimension drawing, wiring diagram, protocol documentation and sample code for easy system integration.
TTL UART by default, with RS-485 also available. The communication protocol is customizable — Modbus or a simple text protocol — so it drops into most MCU or PLC designs without a bridge board.
The body is Ø32 mm with an M32×1.5 thread — the same size as a cable gland. Cut an M32 hole in your housing, screw the module in from the outside, and the finished device ships under your own brand.
Yes. MOQ is 1 unit, sample orders are supported, and we supply FORM E for 0% import duty into ASEAN. We have been an OEM/ODM manufacturer since 2015.
Tell us the tank, the medium and the quantity — we answer with a quotation, datasheet and lead time within two working days.
