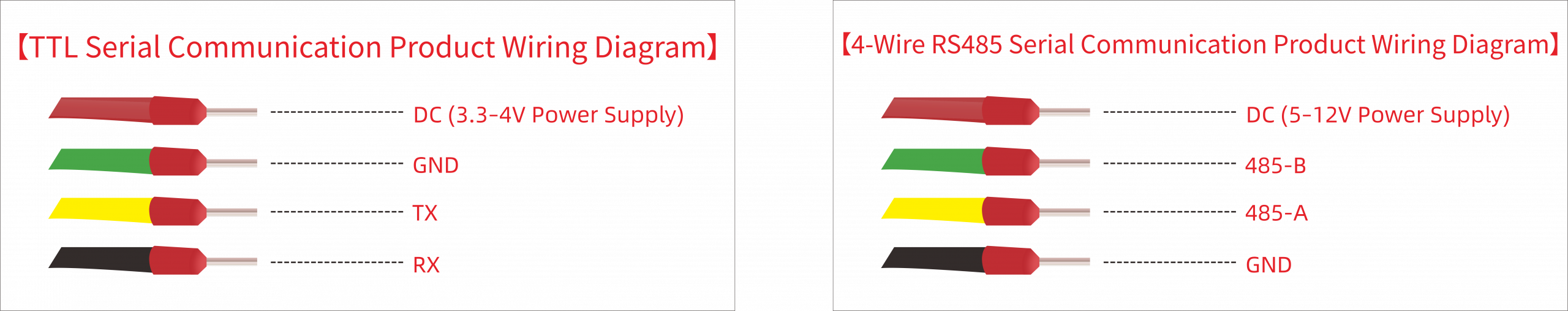

| Communication Interface | 【TTL】 / 【RS485】 |
|---|---|
| Average Current | 【TTL:3.3–4V / 10mA】 / 【RS485:5–12V / 12mA】 |
| RF Pulse Current | 100mA |
| Sampling Interval | 20ms (Configurable) |
| Measurement Accuracy | ±2mm |
| Operating Frequency | 60GHz |

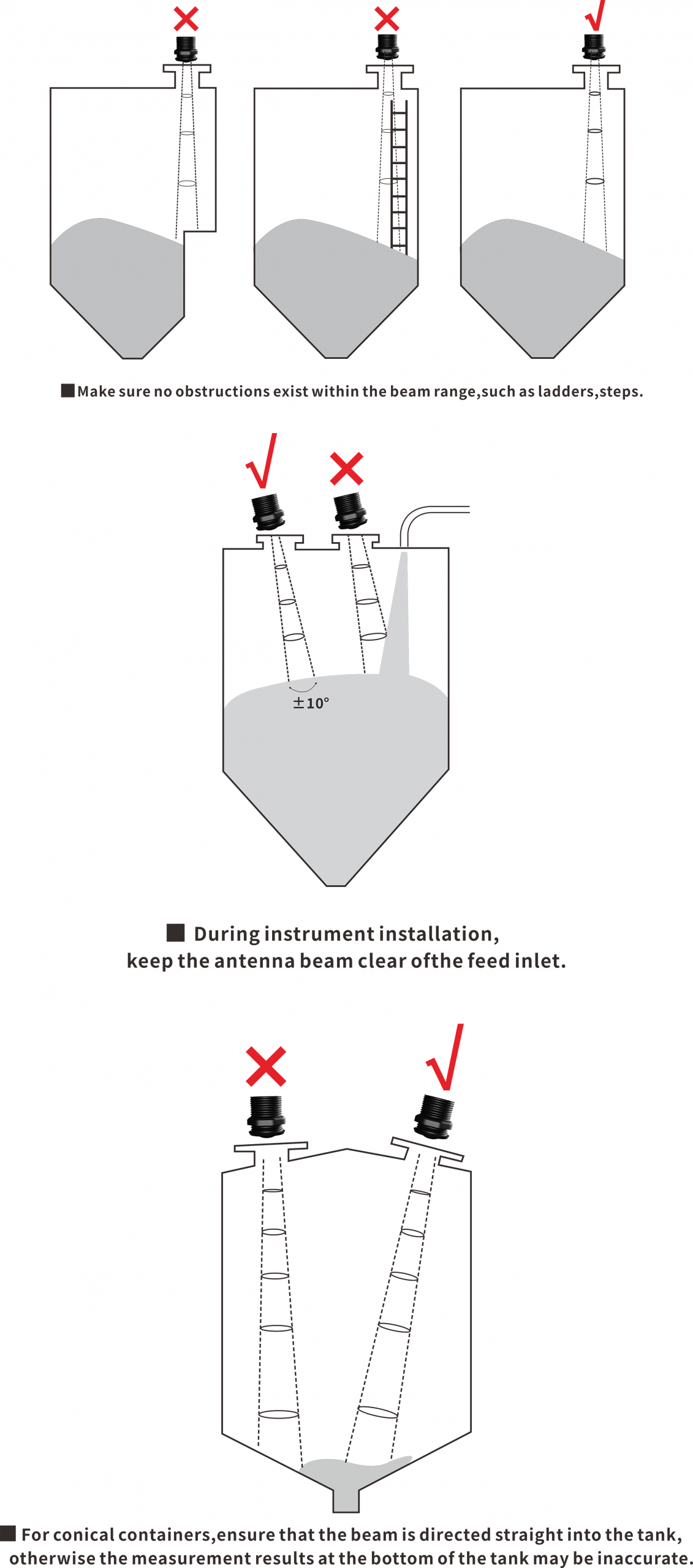

| Beam Angle | ±10° |
| Communication Protocol | Customizable Modbus / Text Protocol |
| Radar Blind Zone | 4cm |
| Measuring Range | 0.04–2m |
| Housing Material | ABS |
| Operating Temperature | -40°C ~ 75°C |
| Debugging Method | Upper Computer |

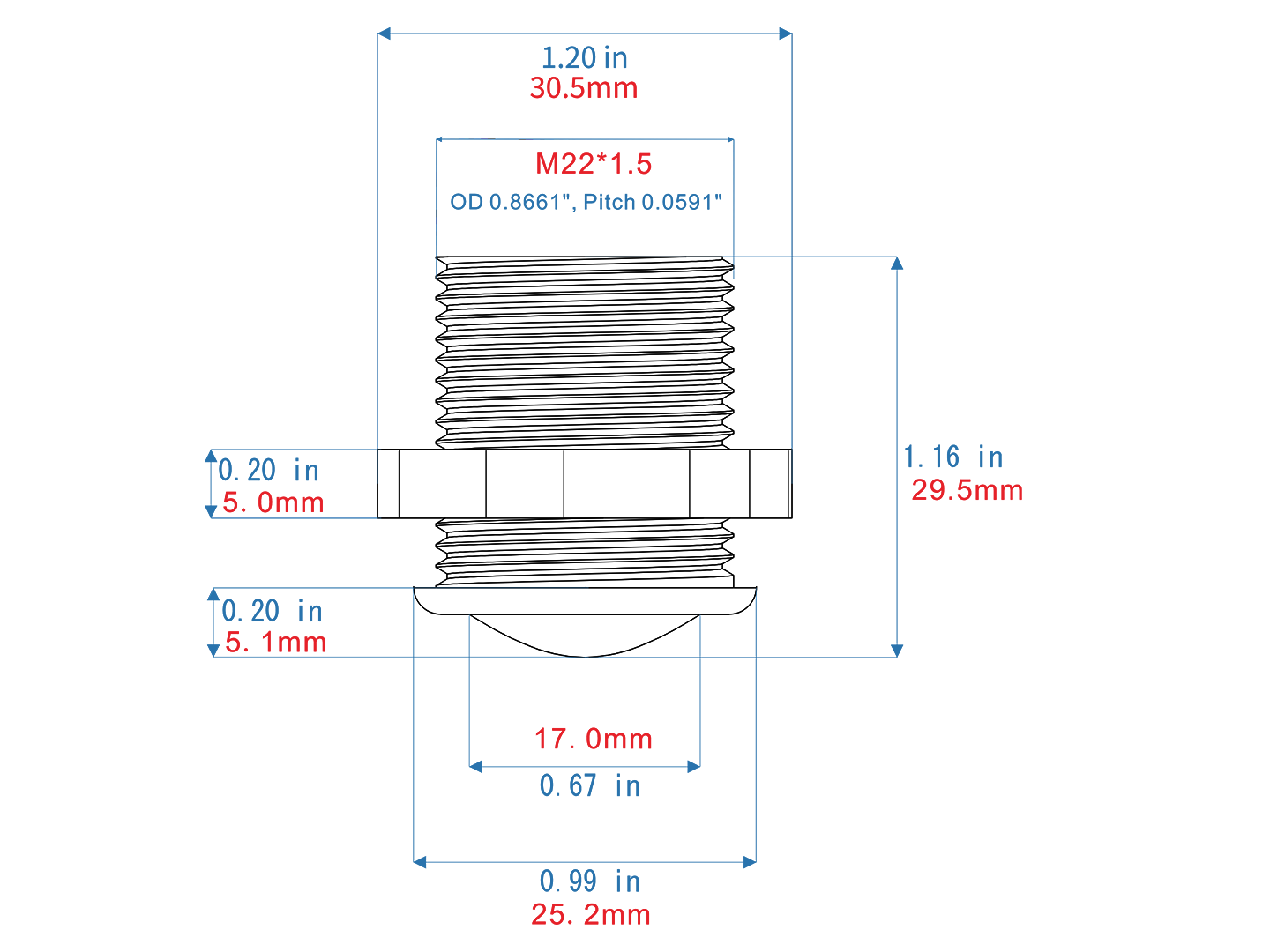

| Mounting Thread | M22×1.5 |
| Debugging Method | Upper Computer / Mobile APP / Bluetooth Mini Program (Chinese & English Version) |
