| Model | JJY-YLD12358S-1.5 |
|---|---|

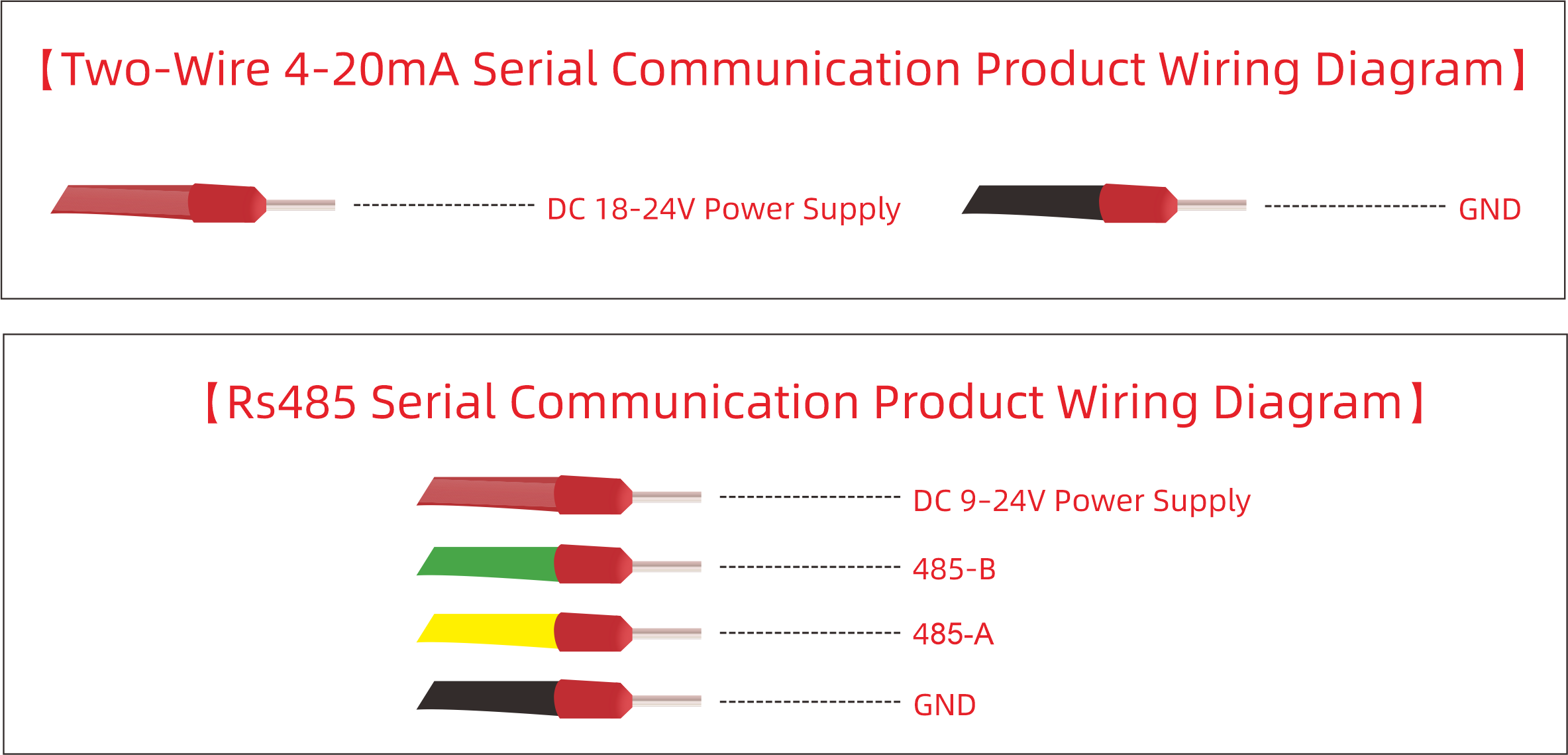

| Communication Method | 【RS485】/ 【4-20mA / 2-Wire】 |
| Average Current | 【RS485:12V / 11mA】 / 【4-20mA / 2-Wire:12V / 11mA】 |
| Pulse Current | 【RS485:100mA / 10ms】 / 【4-20mA / 2-Wire:40mA / 24V】 |
| Sampling Frequency | 【RS485:200ms / Configurable】 / 【4-20mA / 2-Wire:1500ms / Configurable】 |
| Operating Voltage Range | 【RS485:9–24V】 / 【4-20mA / 2-Wire:8–24V】 |
| Measurement Accuracy | ±2mm |
| ±2mm | 80GHz |

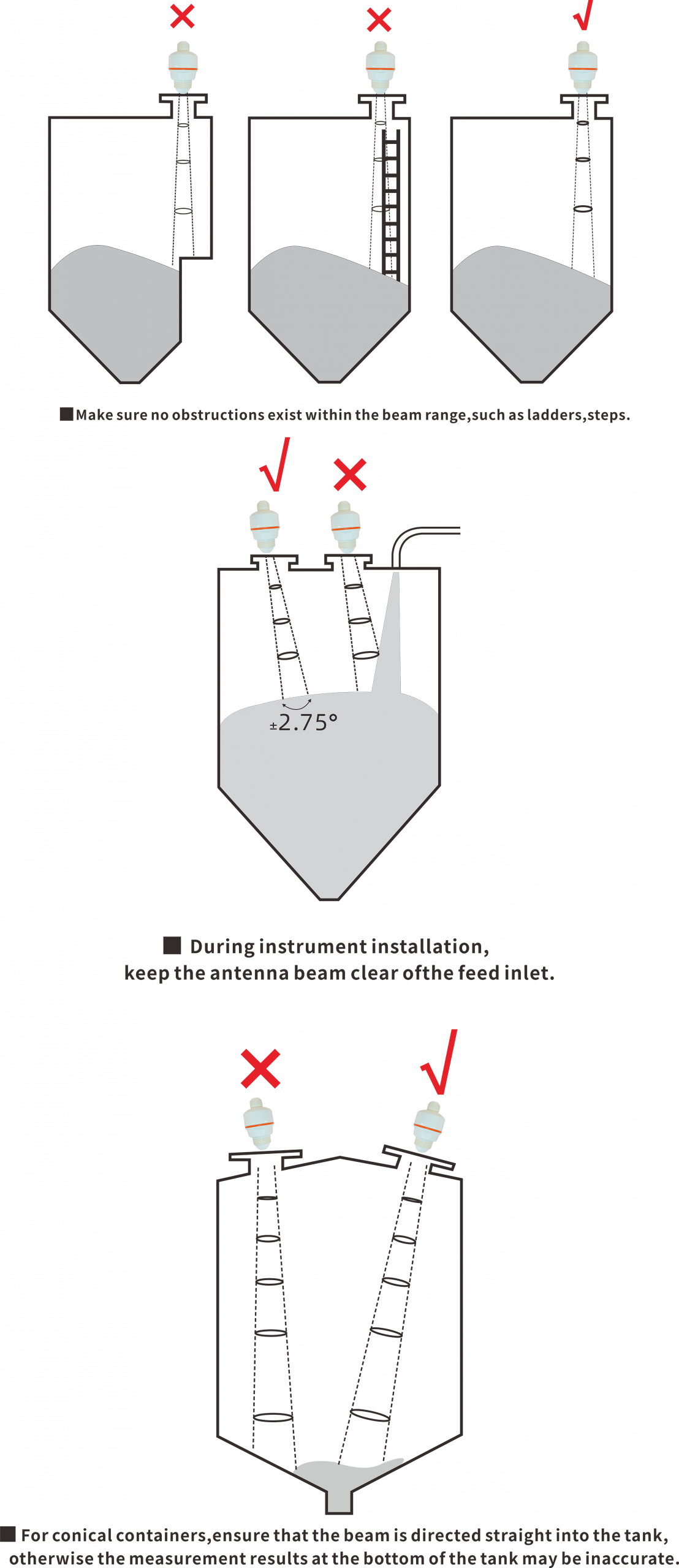

| Beam Angle | ±2.75° |
| Communication Protocol | Customizable Modbus / Text Protocol |
| Radar Blind Zone | 5cm |
| Measuring Range | 0.05–40m |
| Housing Material | PC (Polycarbonate) |
| Operating Temperature | -40°C ~ 75°C |

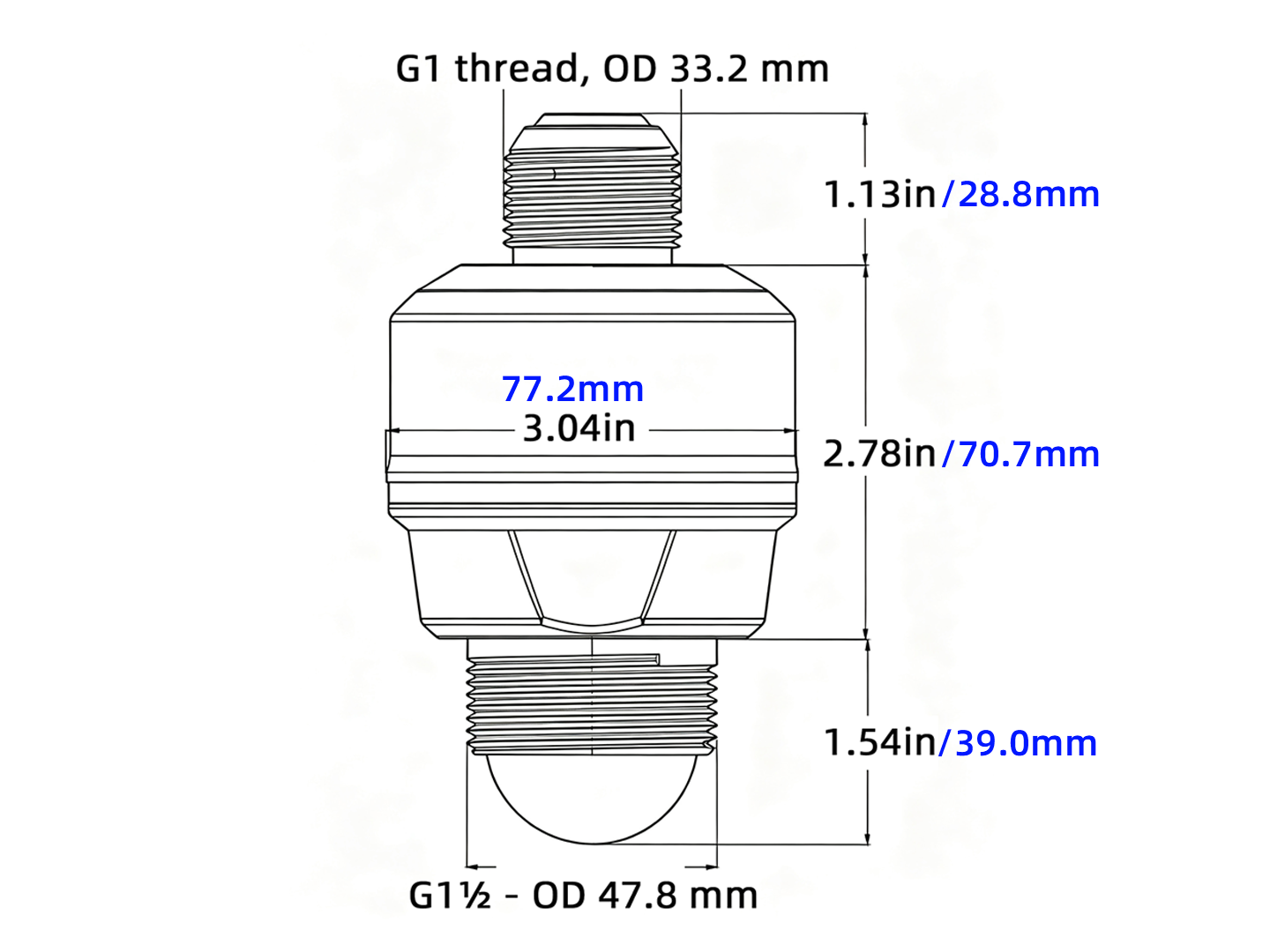

| Mounting Thread | G1.5 |
