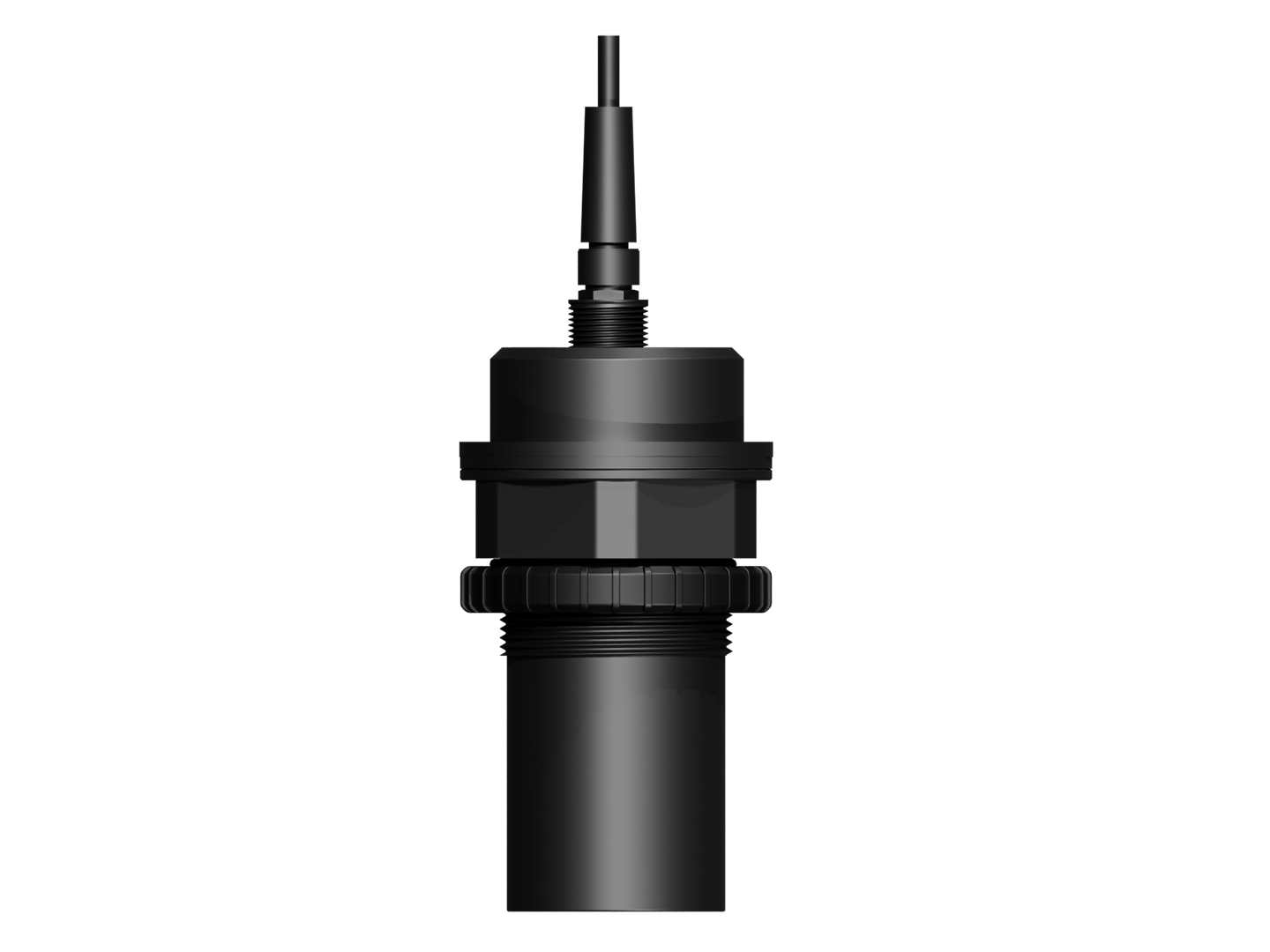

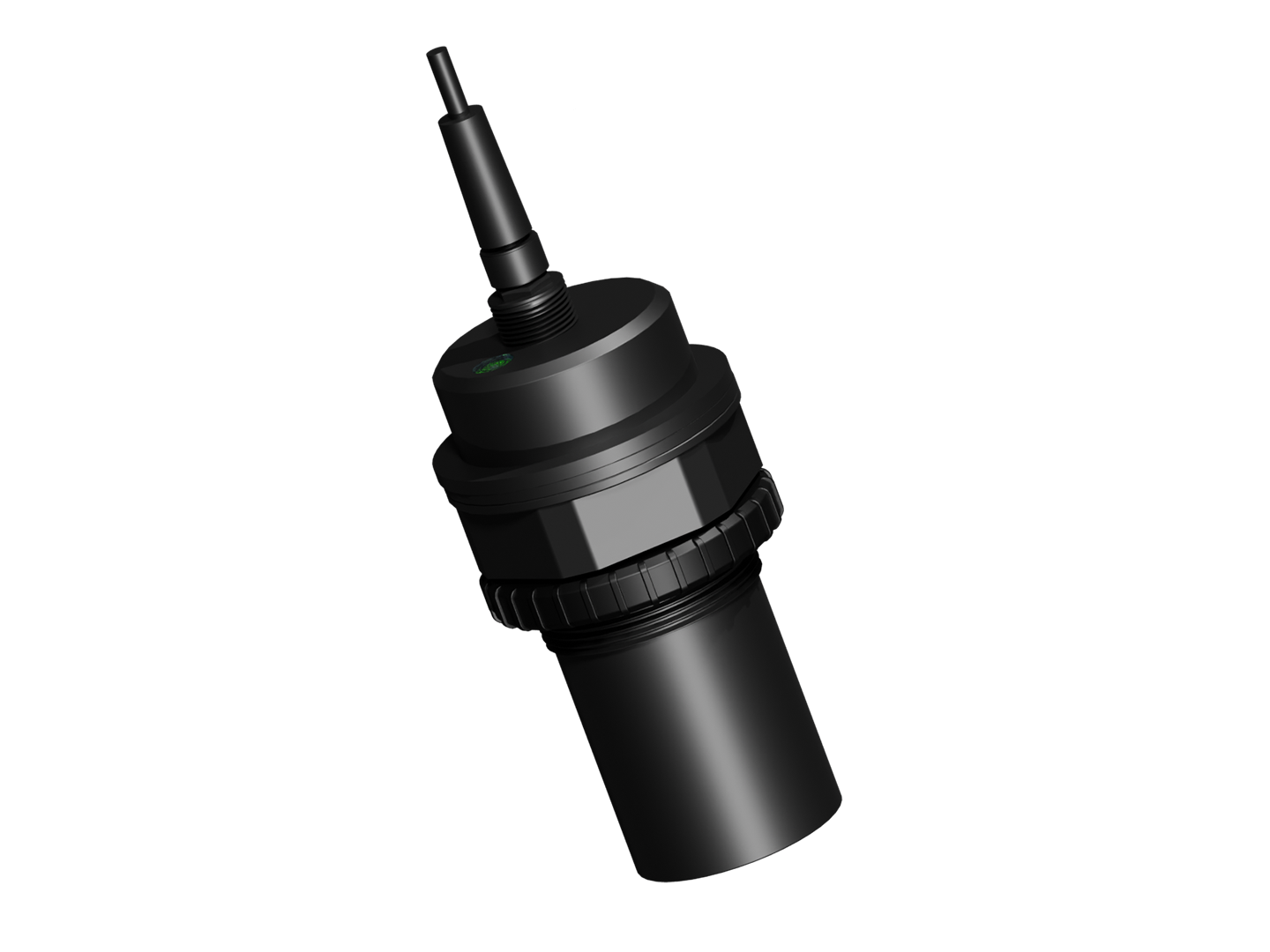

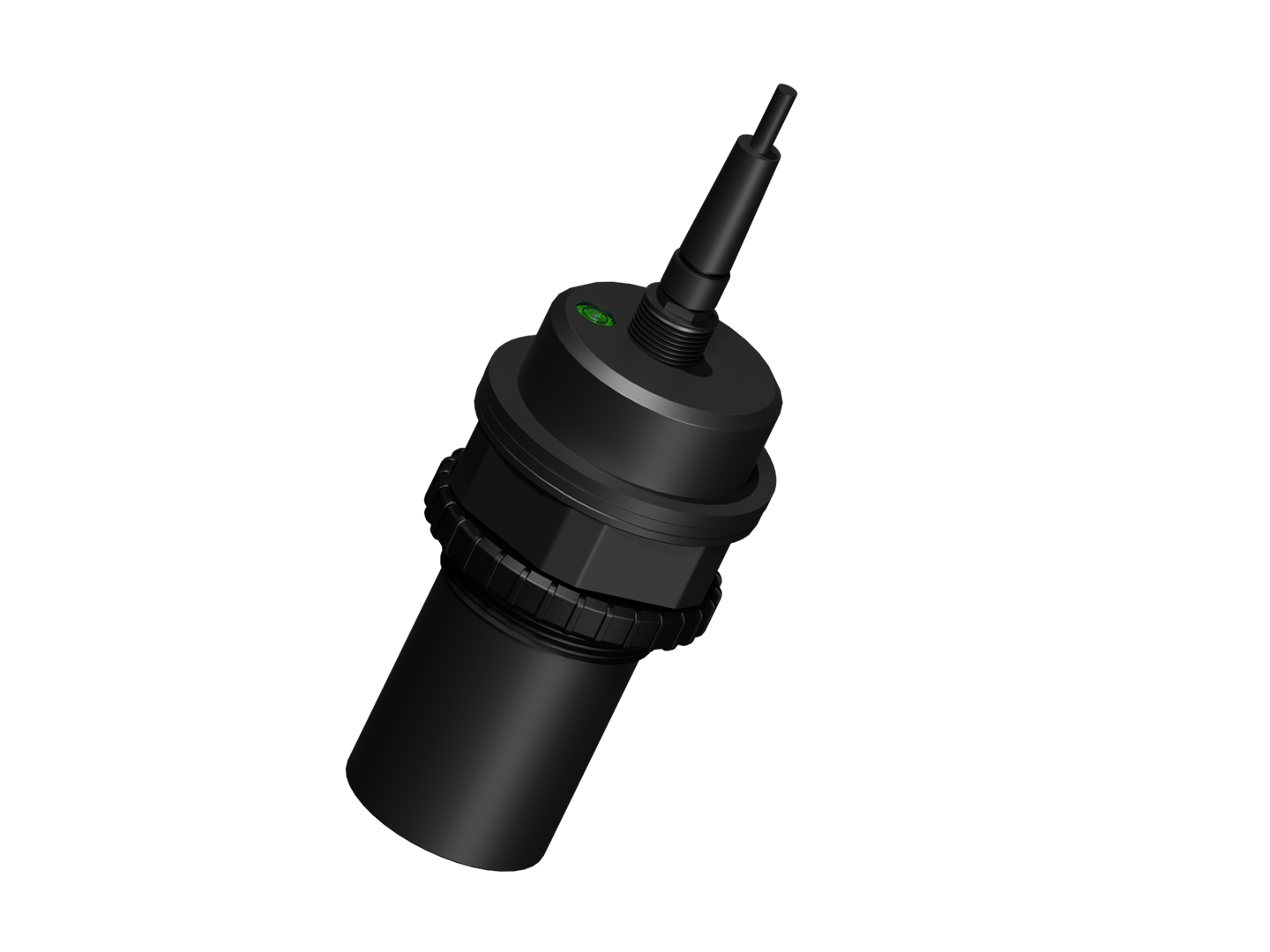

Ultrasonic Water Level Gauge

Model	JJY-YCD12358S

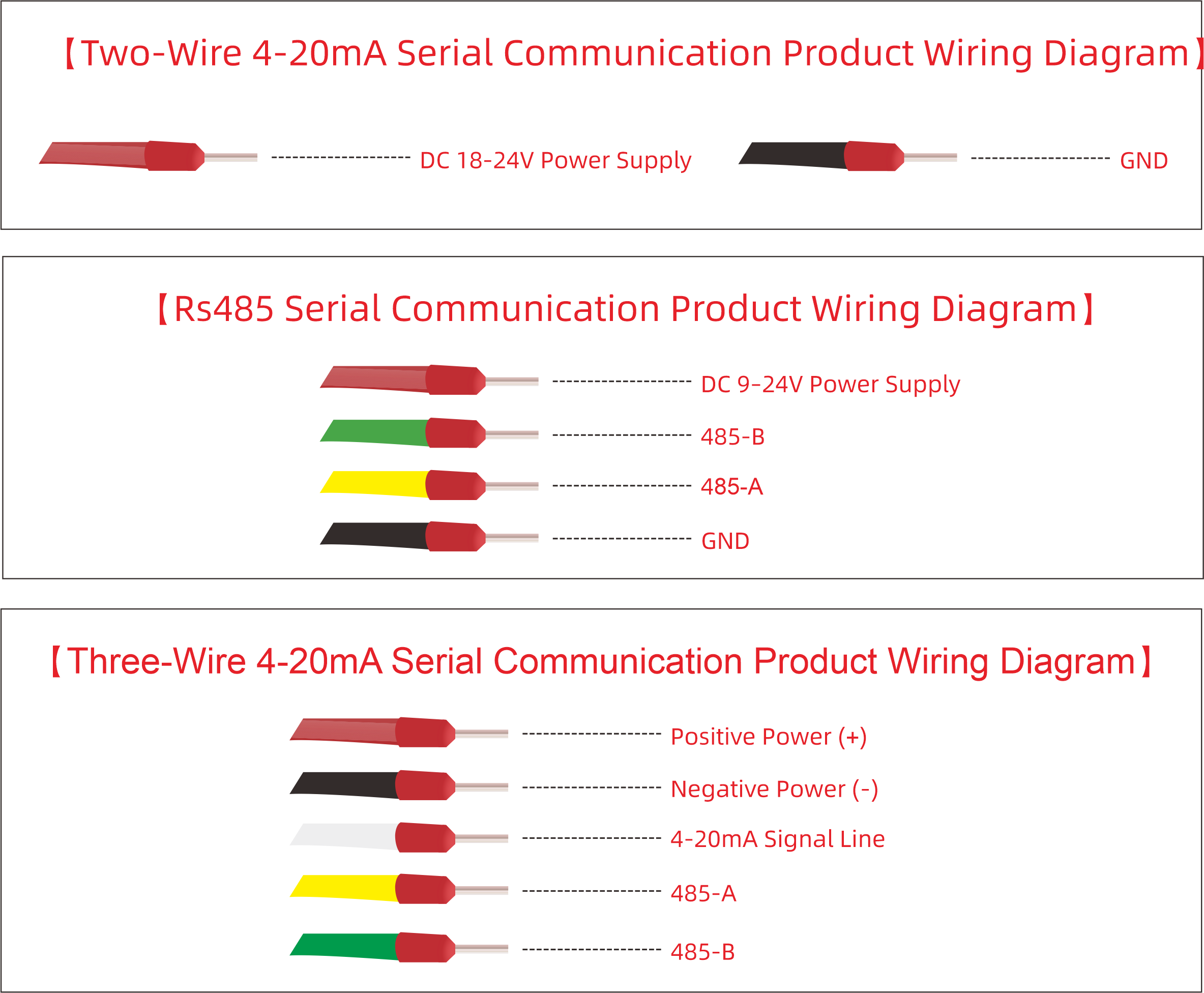

Communication Interface	【RS485】 / 【4-20mA 3-wire System】 / 【4-20mA 2-wire System】
Average Current	【RS485:8mA】 / 【4-20mA 3-wire System:8mA】 / 【4-20mA 2-wire System:3.4mA / 24V】
Pulse Current	【RS485:200mA/10ms】 / 【4-20mA 3-wire System:200mA/10ms】 / 【4-20mA 2-wire System:40mA / 24V】
Operating Voltage	【RS485:9-24V】 / 【4-20mA 3-wire System:9-24V】 / 【4-20mA 2-wire System:18-24V】
Sampling Frequency	【RS485:500ms/Configurable】 / 【4-20mA 3-wire System:500ms/Configurable】 / 【4-20mA 2-wire System:1500ms/Configurable】
Measurement Accuracy	±2mm
Beam Angle	±6°
Communication Protocol	Customizable Modbus/Text Protocol
Measuring Range	0.05-20m
Housing Material	ABS/PTFE
Operating Temperature	-40°C~75°C
Debugging Method	RS485:Upper Computer/APP/Bluetooth Mini Program

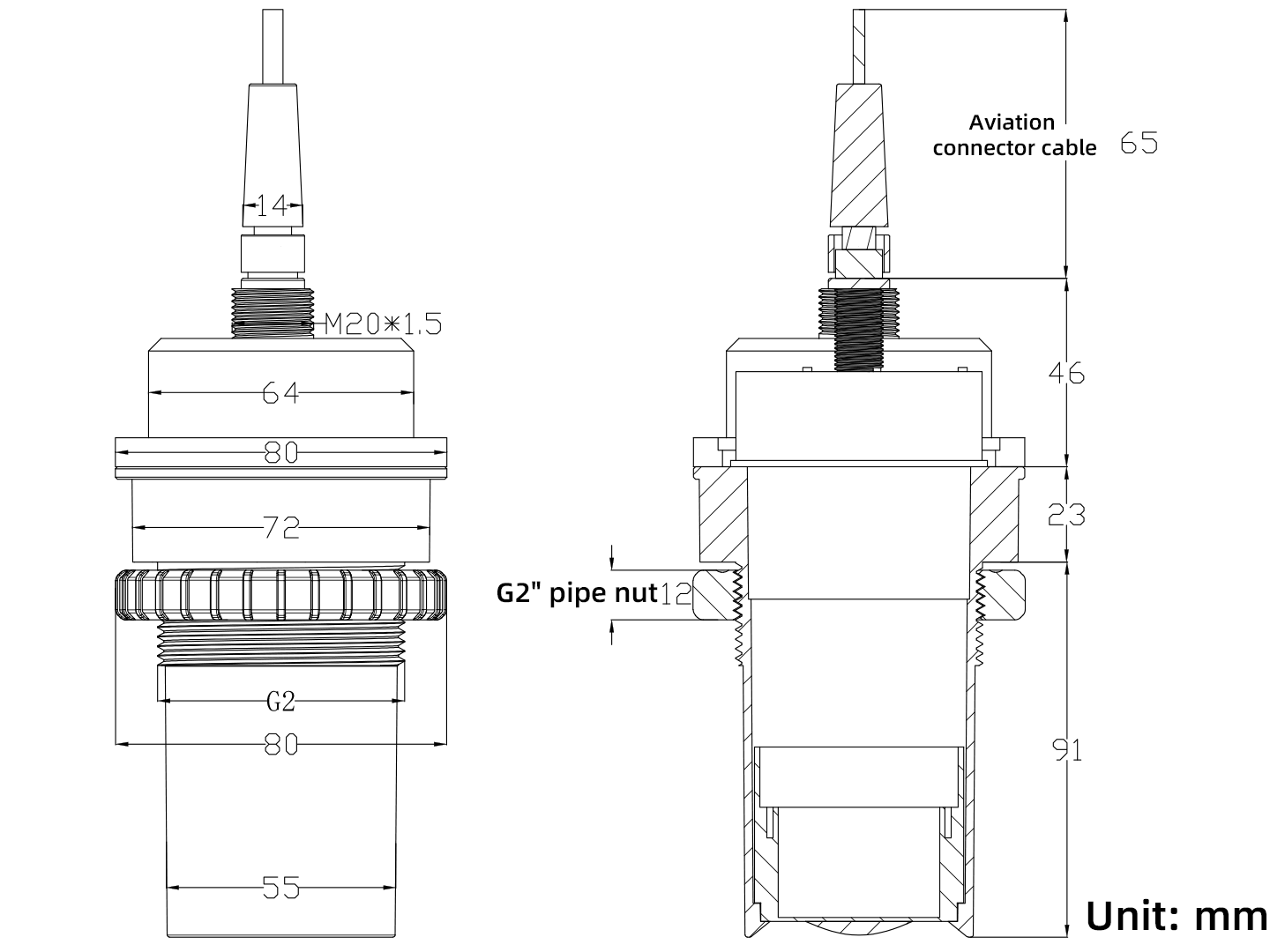

Mounting Thread	G2
Debugging Method	Upper Computer / Mobile APP / Bluetooth Mini Program (Chinese & English Version)
