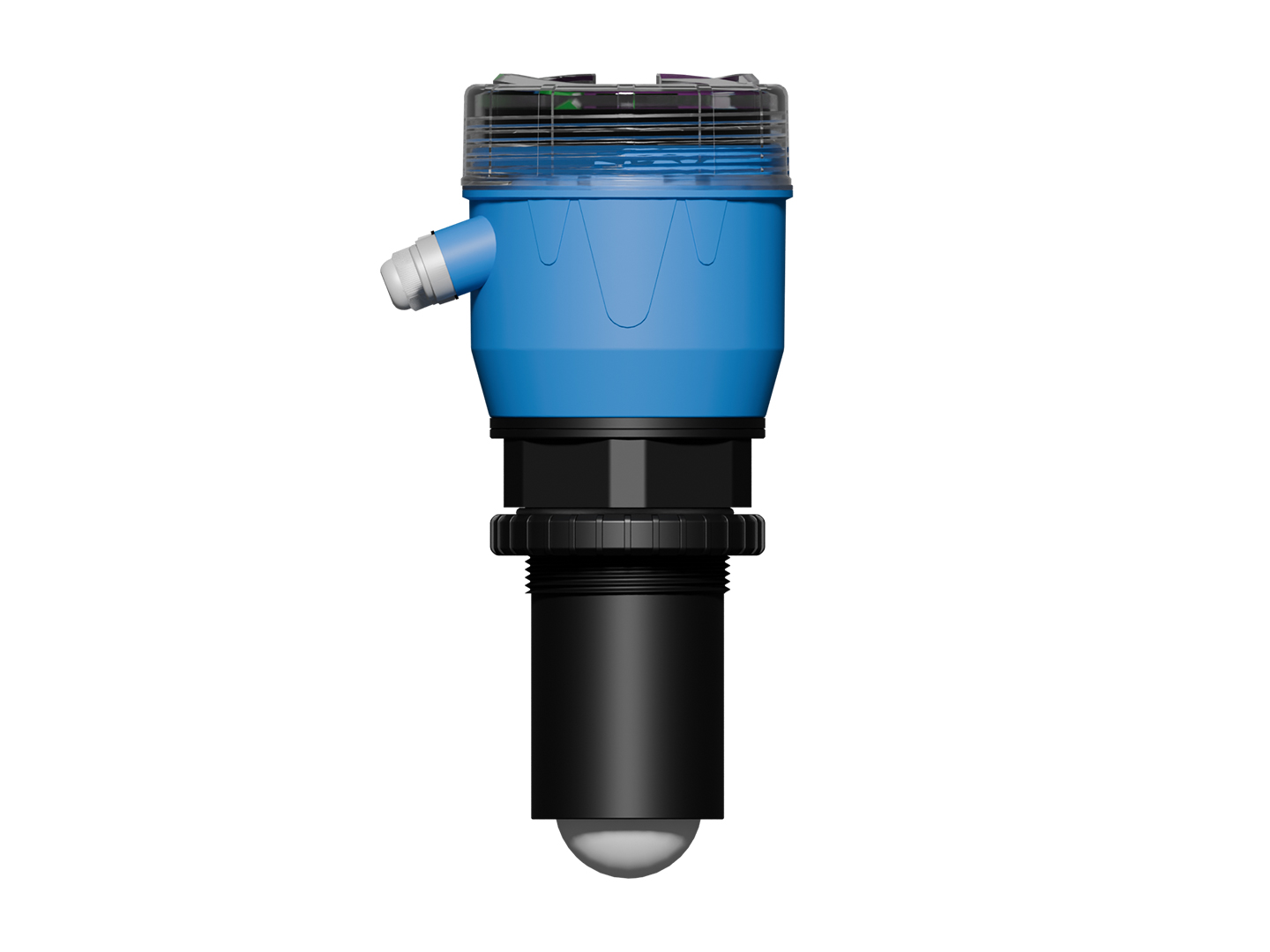

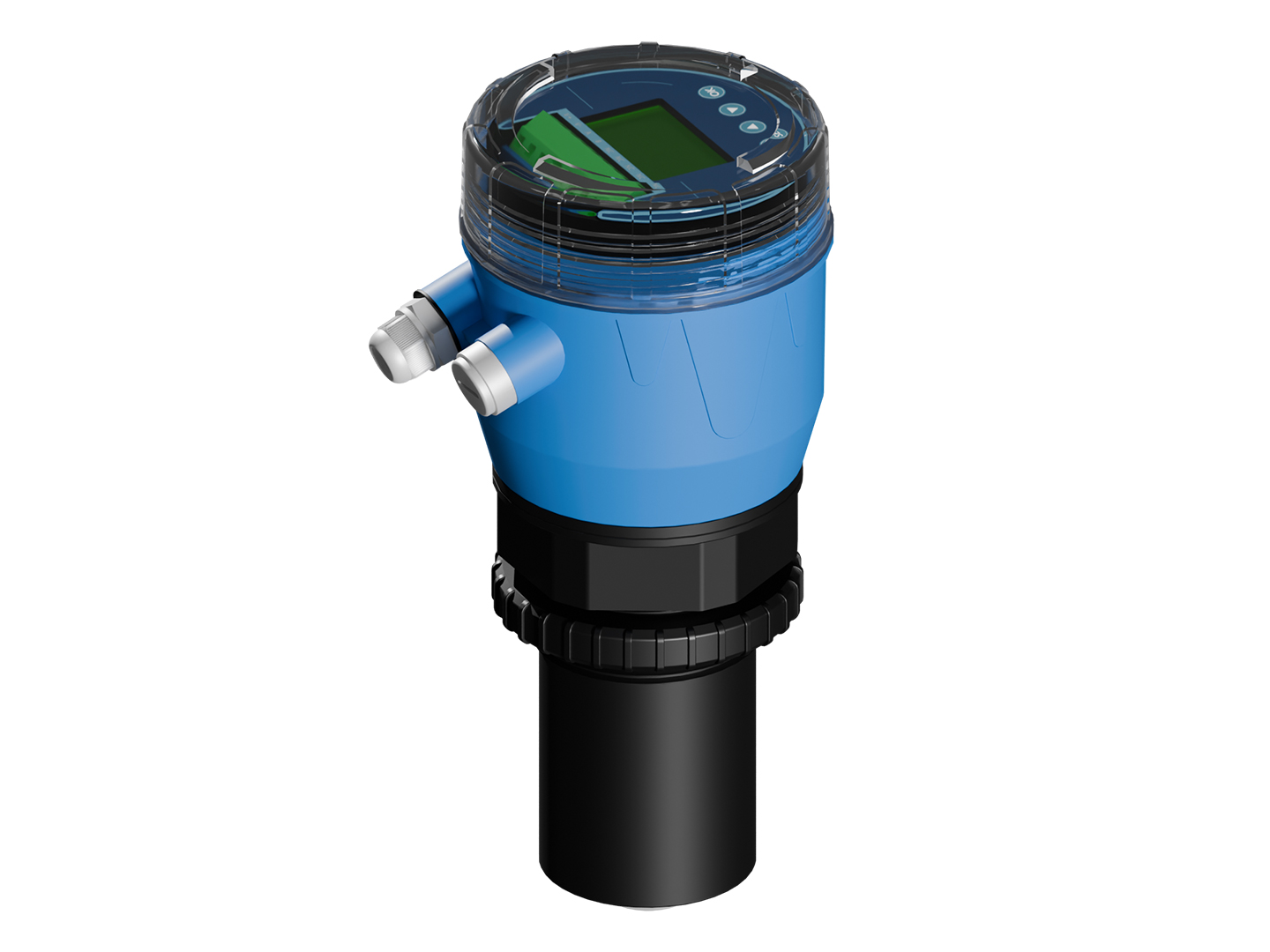

| Model | JJY-YLD2SP |
|---|---|
| Communication Mode | 【4-20mA two-wire】 / 【4-20mA three-wire】 |
| Operating Voltage Range | 【4-20mA two-wire:24V 】 / 【4-20mA three-wire:9-24V】 |
| Operating Current | 【4-20mA 2-wire System:58mA transient startup current】 / 【4-20mA three-wire:81mA/12V】 |
| Measurement Accuracy | ±2mm |
| Sampling Frequency | 【4-20mA two-wire:1500ms / configurable】 / 【4-20mA three-wire:200ms / configurable】 |
| Measuring Resolution | 【4-20mA two-wire:0.1% of full range】 / 【4-20mA three-wire:0.1% of full range / 1mm】 |
| Relay Switch Output | 【4-20mA two-wire:None】 / 【4-20mA three-wire:AC 250V/4A or DC 30V/4A】 |
| Linked Output Mode | 【4-20mA two-wire:None】 / 【4-20mA three-wire:2 Normally Open outputs】 |
| Measuring Range | 0.05~40m |
| Operating Temperature | -40℃ ~ 75℃ |

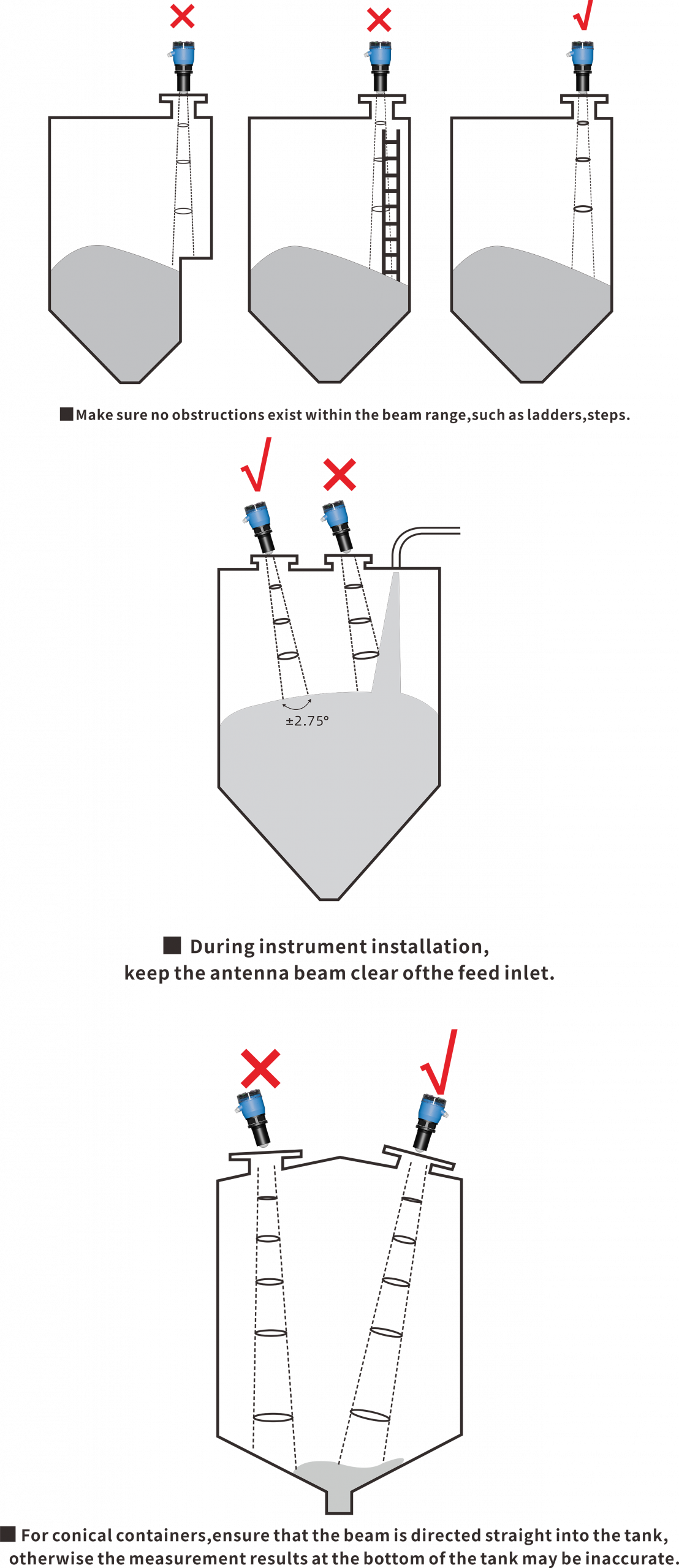

| Beam Angle | ±2.75° |
| Protection Class | IP67 |
| Display Mode | Chinese & English bilingual display |
| Base Resolution | 1mm |
| Temperature Display | Supports temperature readout |
| Recommended Cable Diameter | 6-12mm cable |
