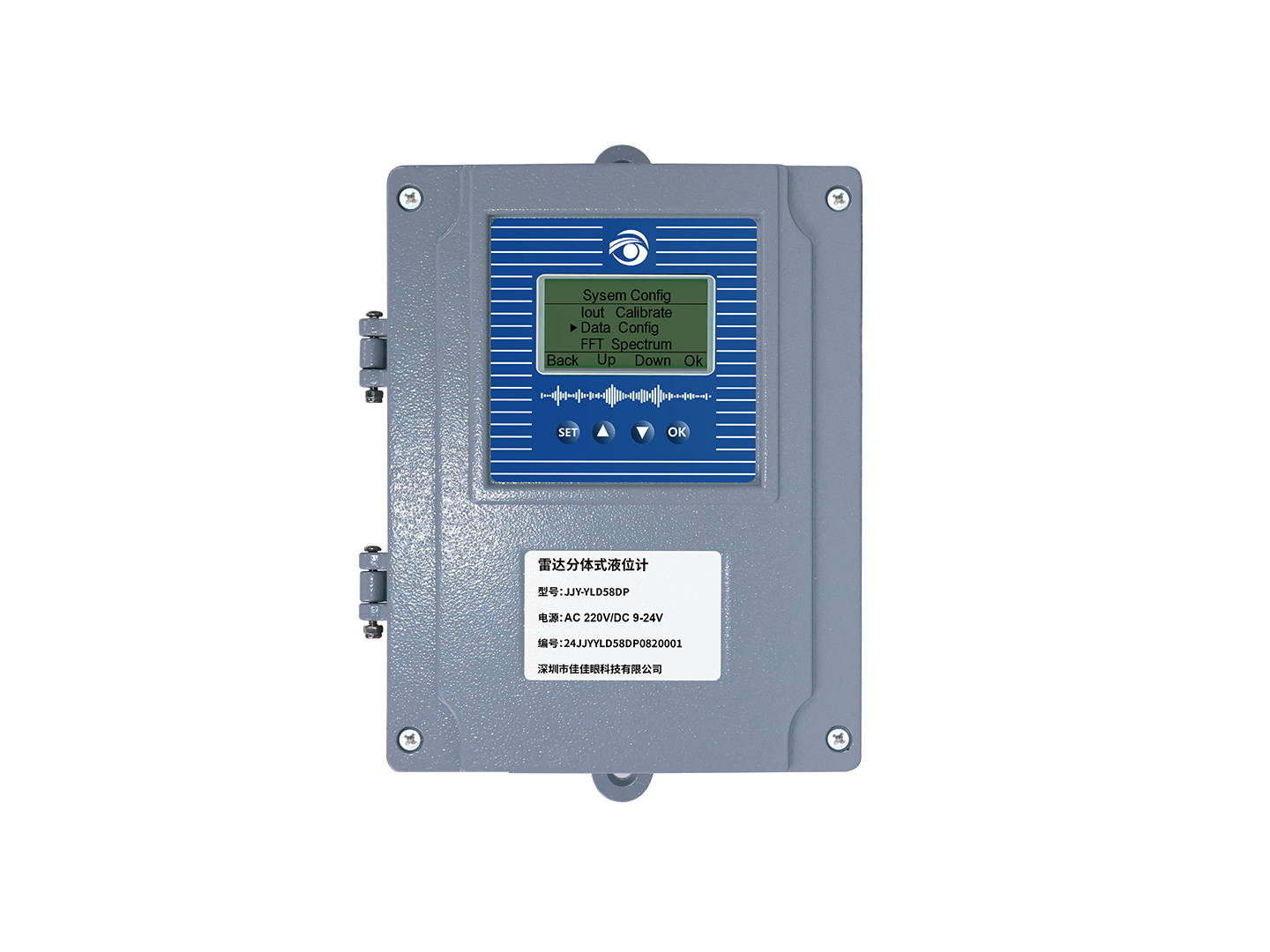

| Model | JJY-YLD158DP |
|---|---|
| Communication Method | 4-20mA 3-wire System/RS485 |
| Operating Current | 12V/90mA12V/90mA |
| Power Supply Voltage | AC 220V |
| Sampling Frequency | 200ms/Configurable |
| Output Resolution | Range*0.1/1mm |
| Measurement Accuracy | ±2mm |
| Housing Material | Aluminum Alloy |
| Linkage Output Mode | 2-channel Normally Open Output |
| Ingress Protection Rating | IP65 |
| Display Mode | Chinese and English Dual Display |
| Relay Switch Capacity | AC 250V/4A or DC 30V/4A |
| Debugging Method | Menu Keys |
| Operating Temperature | Screen operating temperature: -20°C~70°C |
| Debugging Method | Upper Computer / Mobile APP / Bluetooth Mini Program (Chinese & English Version) |
