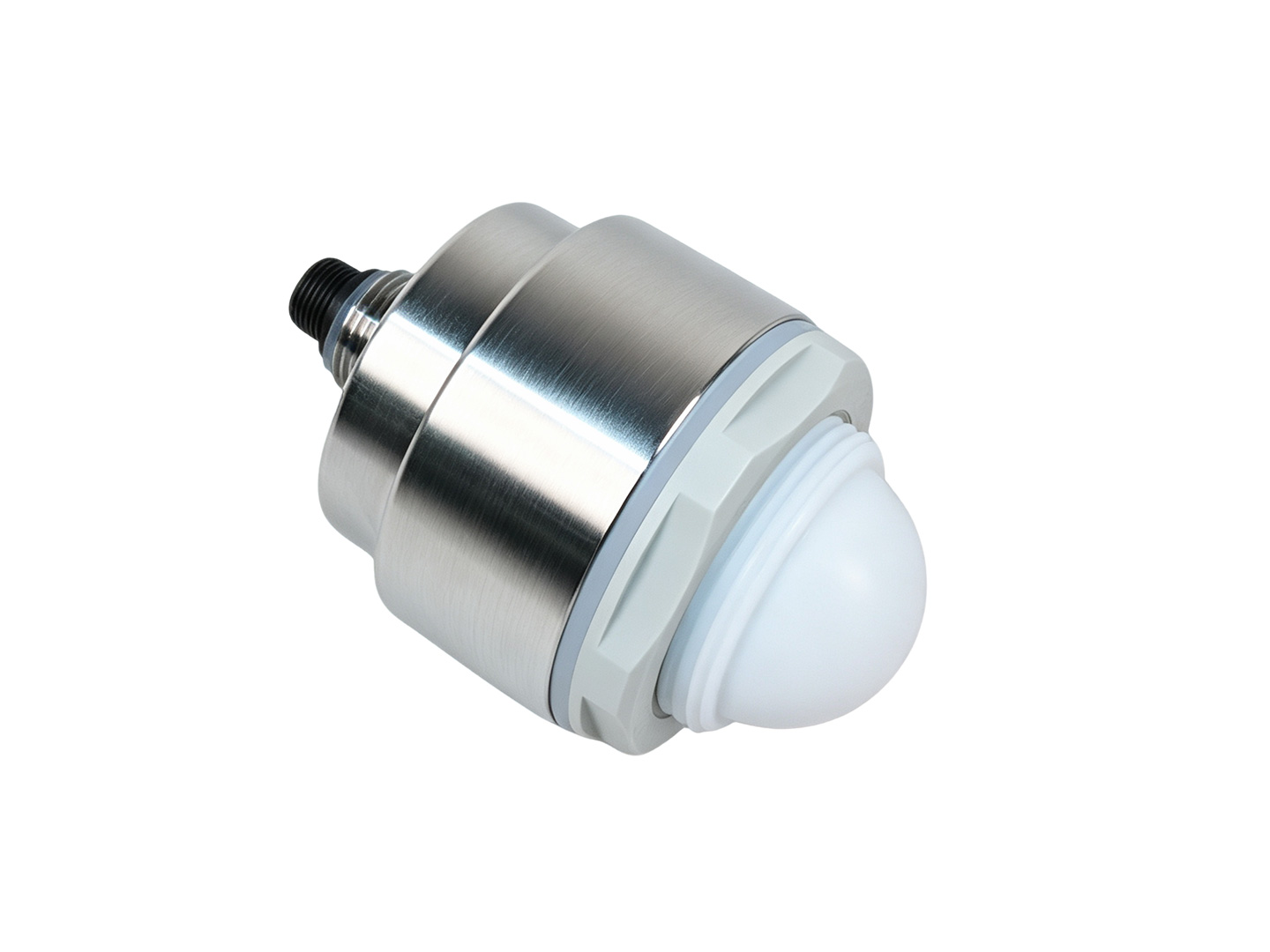

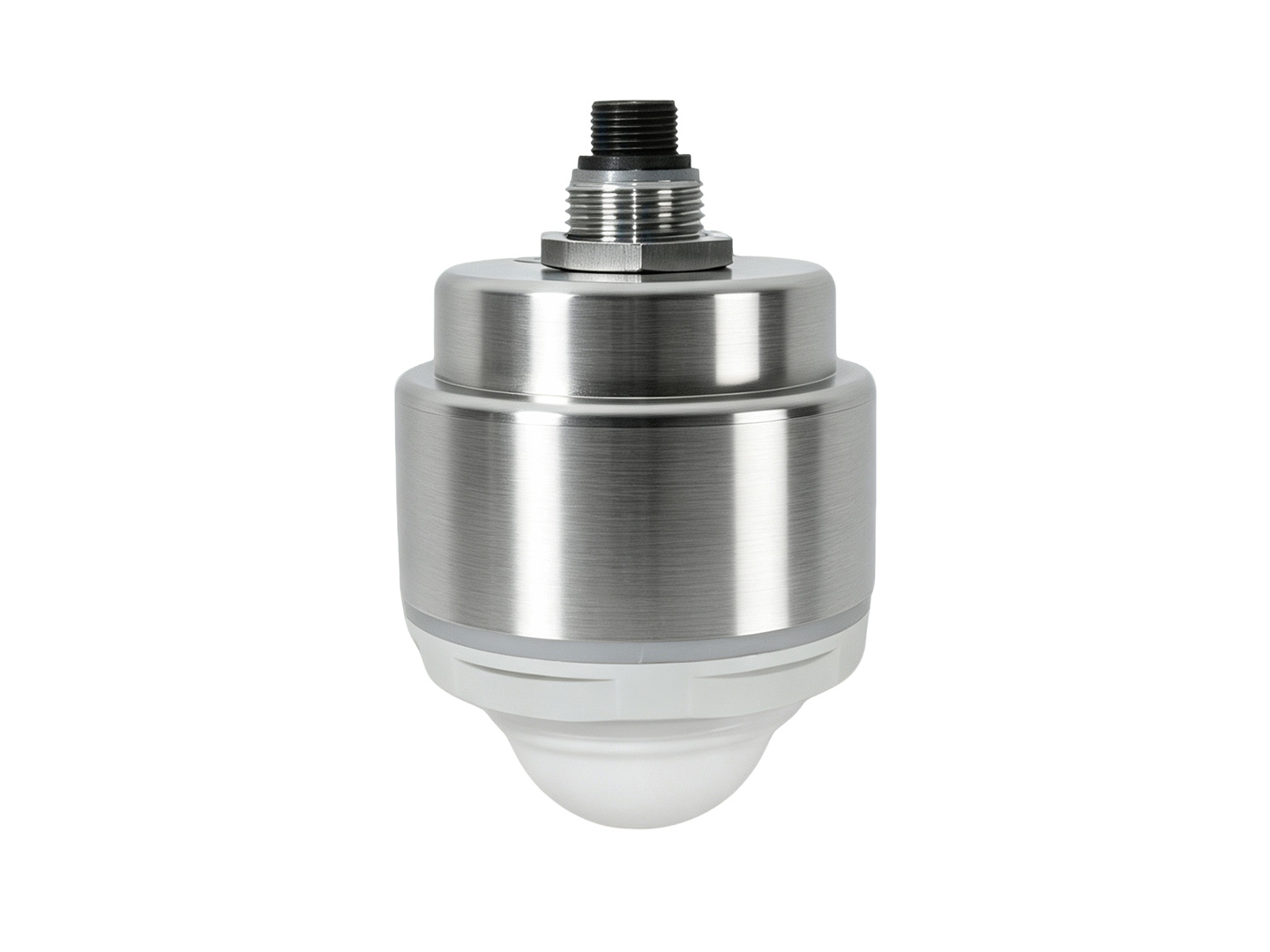

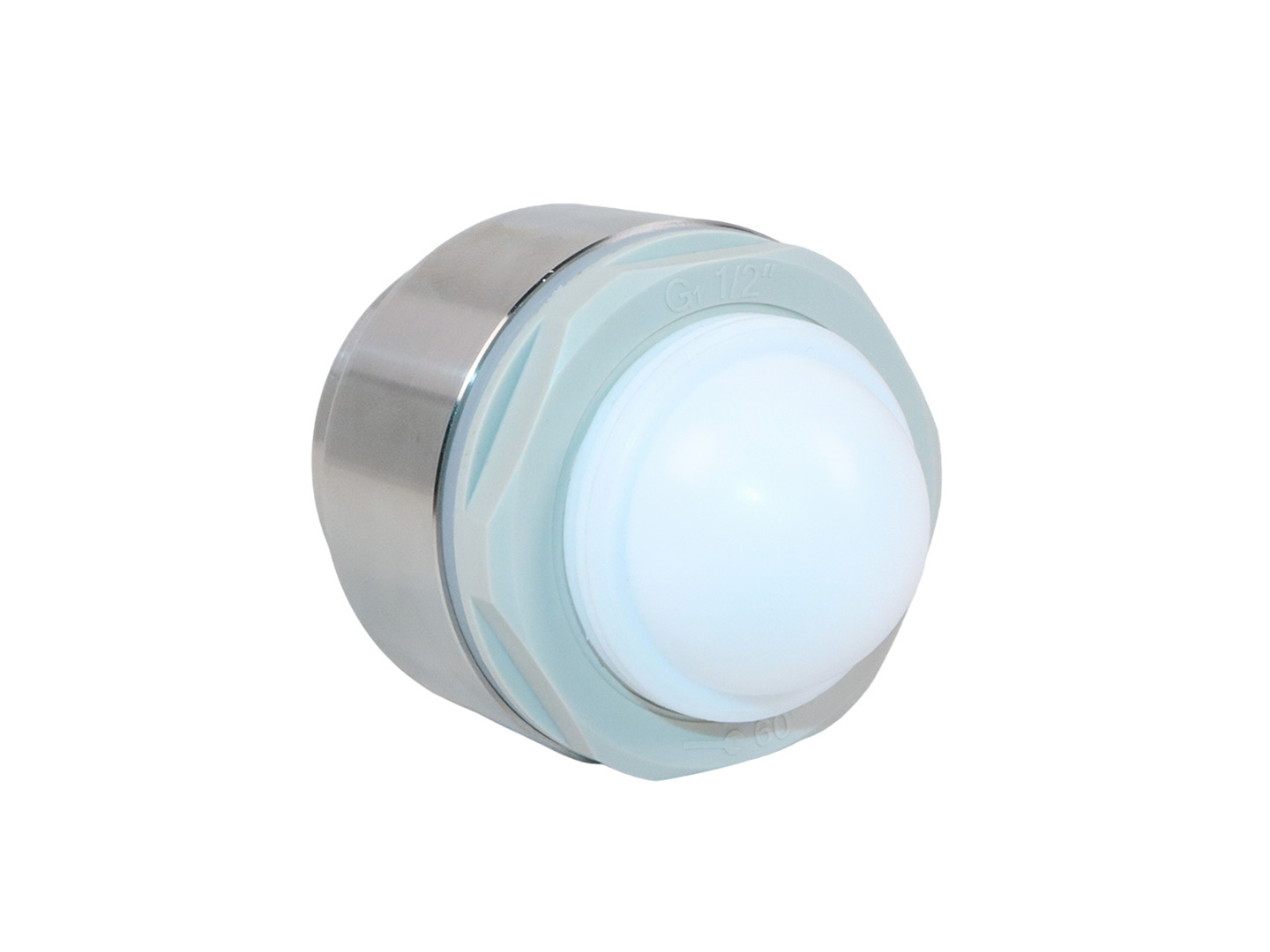

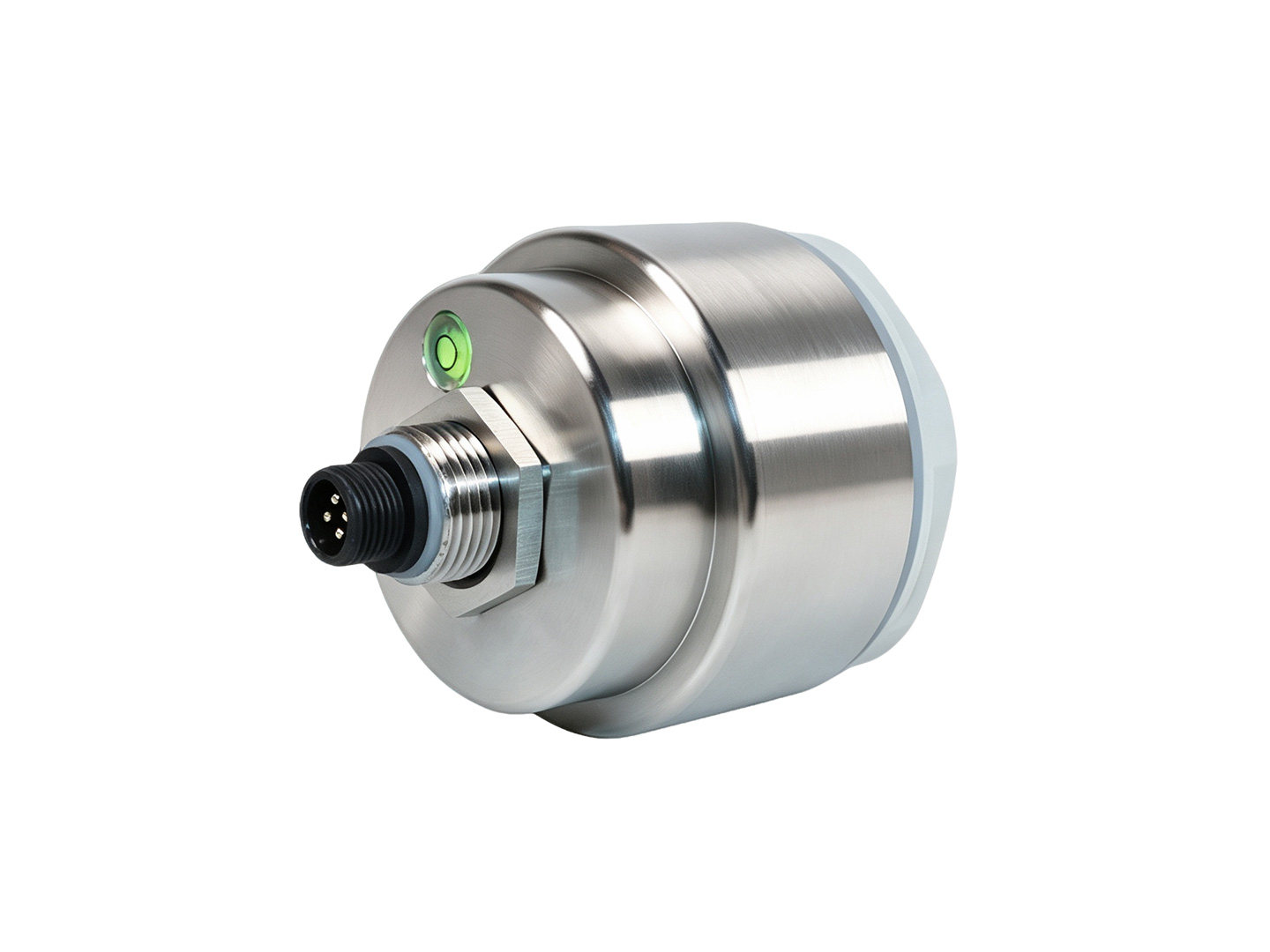

1.5″ Metal Radar Level Transmitter

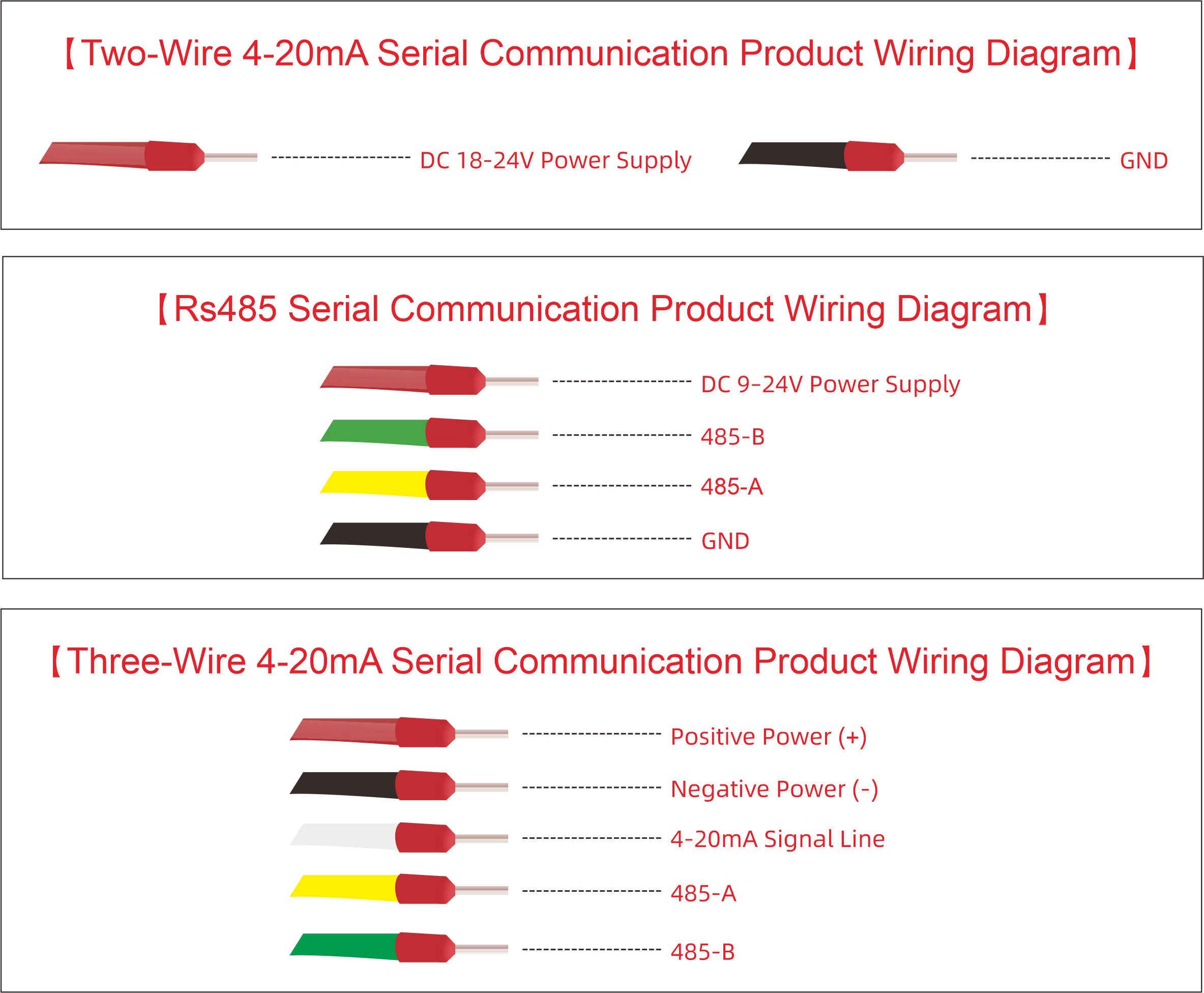

Communication Method	【RS485】 / 【4-20mA / 3-Wire 】 / 【4-20mA / 2-Wire】
Average Current	【RS485:8mA/9-24V DC】 / 【4-20mA 3-Wire Version:8mA/9-24V DC】 / 【4-20mA 2-Wire:3.4mA/24V DC】
Operating Voltage Range	【RS485/4-20mA 3-Wire Version:9-24V DC】 / 【4-20mA 2-Wire Version:18-24V DC】
Pulse Current	【RS485/4-20mA 3-Wire Version :120mA / 10ms】 / 【4-20mA 2-Wire Version:40mA/24V DC】
Sampling Frequency	【RS485/4-20mA 3-Wire Version:Configurable, default 500ms 】【4-20mA 2-Wire Version:Configurable, default 1500ms】
Measurement Accuracy	±2 mm
Transmit Frequency	80GHz
Beam Angle	±2.75°
Communication Protocol	Customizable Modbus / Text Protocol
Measuring Range	0.05 m ~ 40 m
Housing Material	304 Stainless Steel / PTFE
Operating Temperature	-40°C ~ 75°C
Debugging Tools	Upper Computer / Mobile APP / Bluetooth Mini Program (Chinese & English)
Debugging Method	Upper Computer / Mobile APP / Bluetooth Mini Program (Chinese & English Version)
