| Model | JJY-YLD12389D-W-32 |
|---|---|

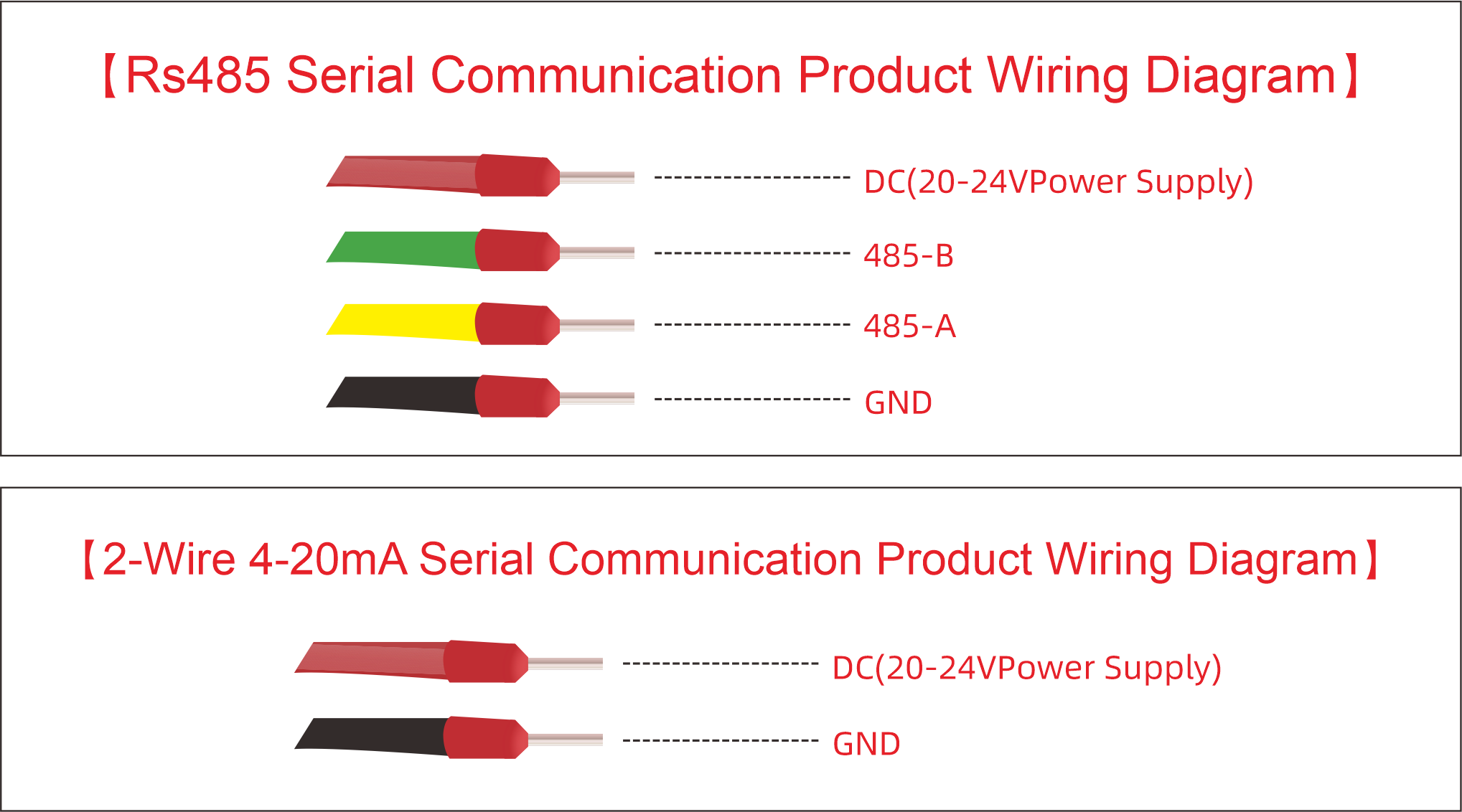

| Communication | 【RS485】 / 【4-20mA / 2-Wire】 |
| Average Current | 【RS485:12V/10mA】 / 【4-20mA / 2-Wire:24V/3.4mA】 |
| Operating Voltage | 【RS485:12-24V】 / 【4-20mA / 2-Wire:20-24V】 |
| Sampling Frequency | 200ms / Configurable |
| Transmitting Frequency | 80GHz |
| Measurement Accuracy | ±2mm |
| Beam Angle | ±3° |
| Measuring Range | 0.05-40m |
| Protection Class | IP67 |
| Communication Protocol | Customizable Modbus / Text Protocol |

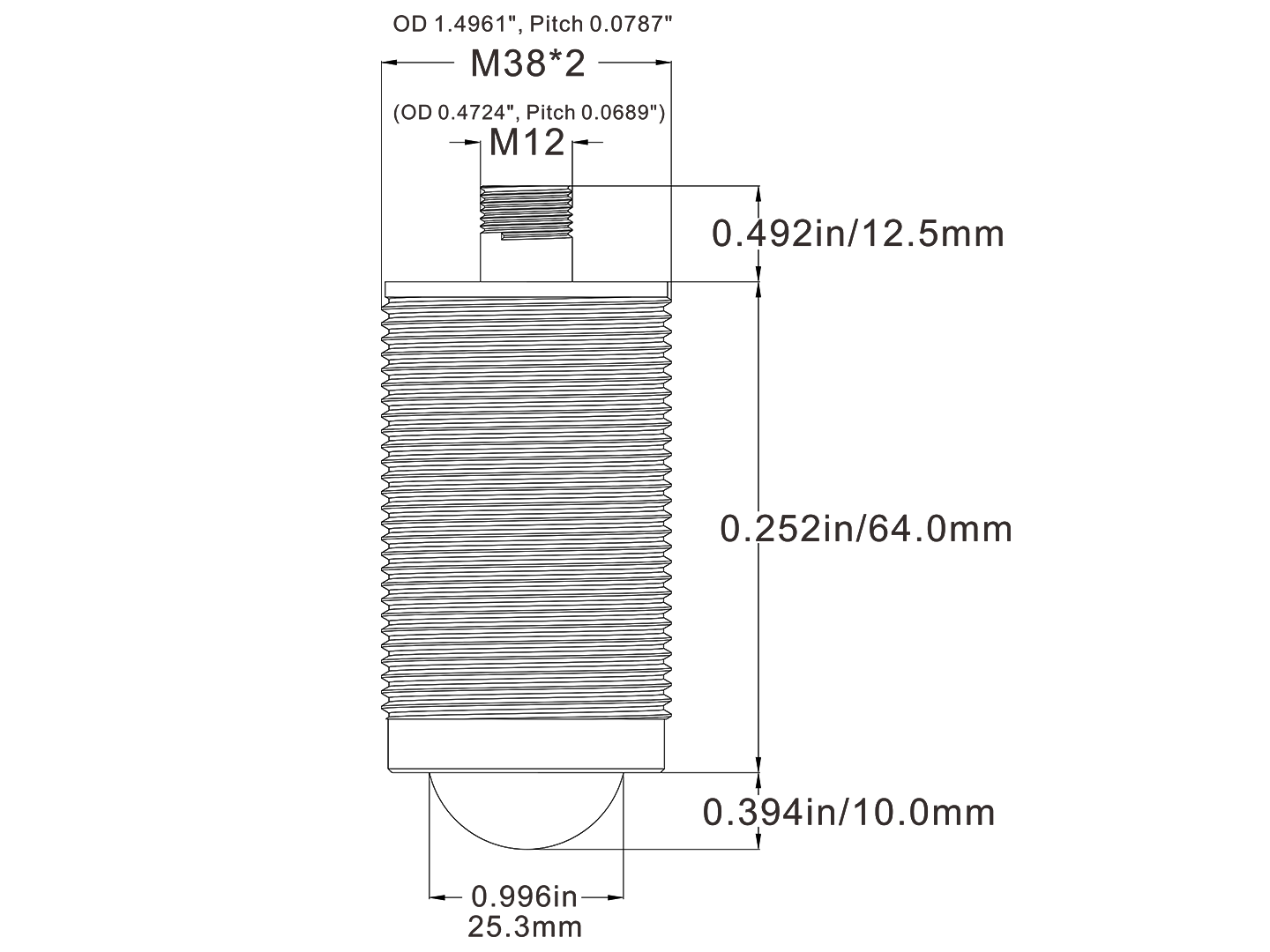

| Mounting Type | Thread M38×1.5 Pitch |
| Operating Temperature | -40℃~75℃ |
| Housing Material | PTFE / Nickel-Plated Copper |
| Configuration Software | Upper Computer / APP / Bluetooth Mini Program (Chinese & English) |
Related Resource Downloads
 |
 |
 |
 |
 |
 |
