Dust, Mist & Condensation Proof
Three problems ultrasonic level meters usually fail on — solved.
Conventional ultrasonic sensors start measuring around 20 cm from the face. 5 cm means small tanks, day tanks and dosing tanks can be filled right to the top with no dead band.
It holds its echo through mist, steam and dust. Automatic gain control compensates for signal decay, so readings stay stable in sewage wet wells and outdoor installations instead of jumping.
±3 mm over RS-485 (0.1% FS on the 4–20 mA loop). Accurate enough for batching, blending and dosing where the level number is trusted by the process.
Real hardware, real wiring, real installation guidance — not stock renders.
Manufacturing & test — click to play
OEM/ODM manufacturer since 2015
Verified quality system, more markings on the way.
Certificate No. 02426Q00028R101 · issuing body verified. Certificate scan to be added.
Certification module reserved. Badge will be placed here once issued — no claim made before then.
Everything required to drop it into a design.
| Range | 0.05 – 10 m 0.1 – 20 m |
|---|---|
| Blind zone | 5 cm |
| Accuracy | ±3 mm (RS-485) / 0.1% FS (4–20 mA) |
| Output | HART 4–20 mA two-wire / RS-485 |
| Power supply | 9–24 V DC (RS-485) / 24 V DC (HART) |
| Protection | IP67, −40 °C ~ 75 °C |
Get the outline drawing, wiring diagram and the full user manual for easy system integration.
It holds its echo through mist, steam and dust. Automatic gain control compensates for the signal decay that makes ordinary ultrasonic sensors drop out, so the reading stays stable in condensation-heavy sewage tanks and outdoor installations.
The blind zone is the shortest distance from the transducer face that cannot be measured. At 5 cm — instead of the usual ~20 cm — you can measure much closer to the tank top, which is what makes small tanks, day tanks and dosing systems usable to full capacity.
Yes. We support custom branding, packaging, output protocol and housing material, and we accept sample orders. We have been an OEM/ODM manufacturer since 2015.

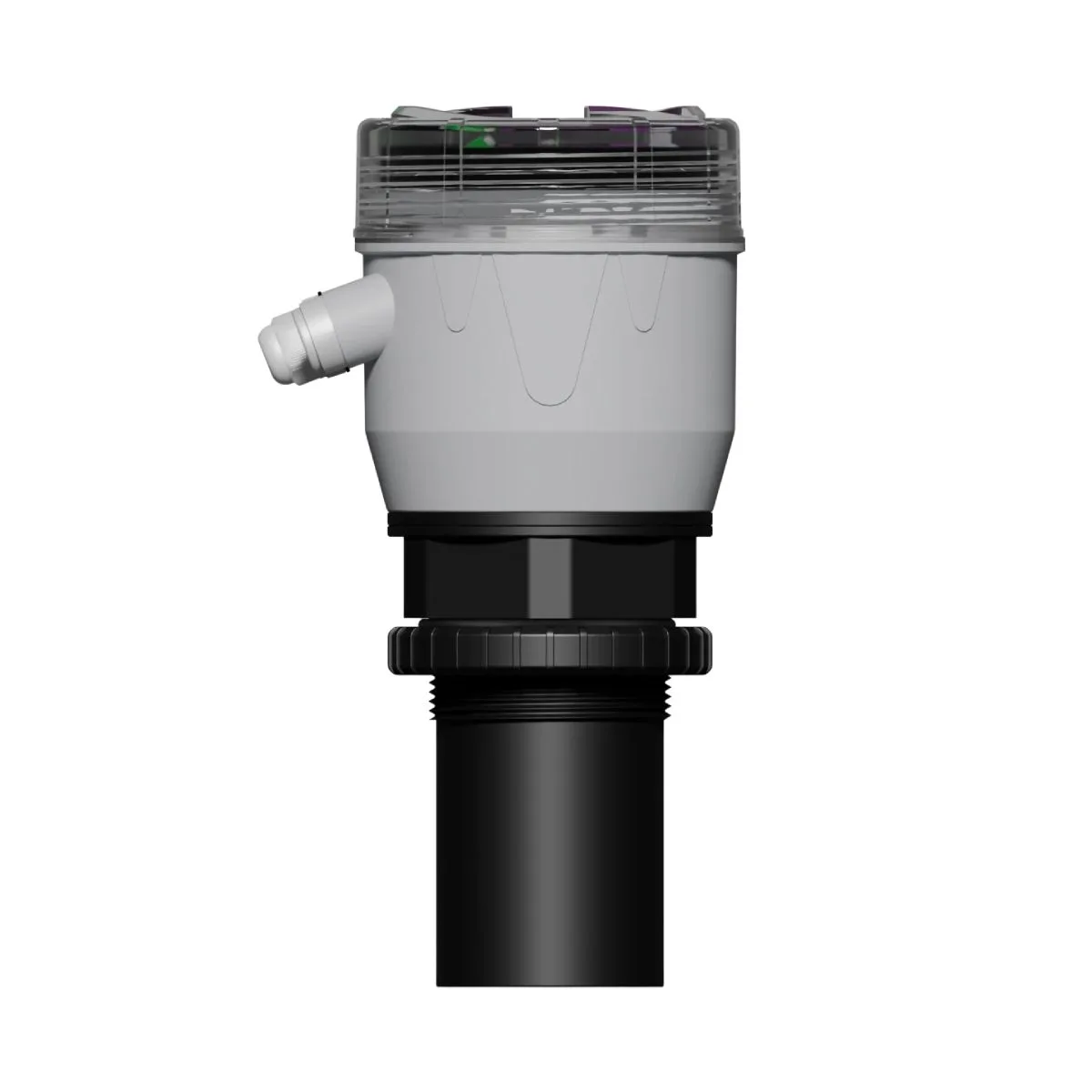

Yes. $99 is the factory-direct list price for the standard JJY-YCD28SPY configuration (MOQ 1, free sample available). Volume pricing applies for bulk orders, and any OEM/ODM customization is quoted separately.
Fill the form on this page or message us on WhatsApp. We send the datasheet and a formal quote within two working days. For OEM/ODM we share a customization worksheet first, then a quote.
Tell us the tank, the medium and the quantity — we answer with a quotation, datasheet and lead time within two working days.
