Scenario 1: Decreasing empty distance Fluctuation ≤ 0.4 m: Likely antenna echo interference. Fluctuation > 0.4 m: Obstacles exist between radar and target. Scenario 2: Increasing empty distance Readings are appr
2026-08-07
Answer: Suspended installation mode is enabled. Switch to standard installation mode to activate blind zone alerts (default blind zone 0.3 m, adjustable downwards). Suspended installation function: In complex echo scenar
2026-08-07

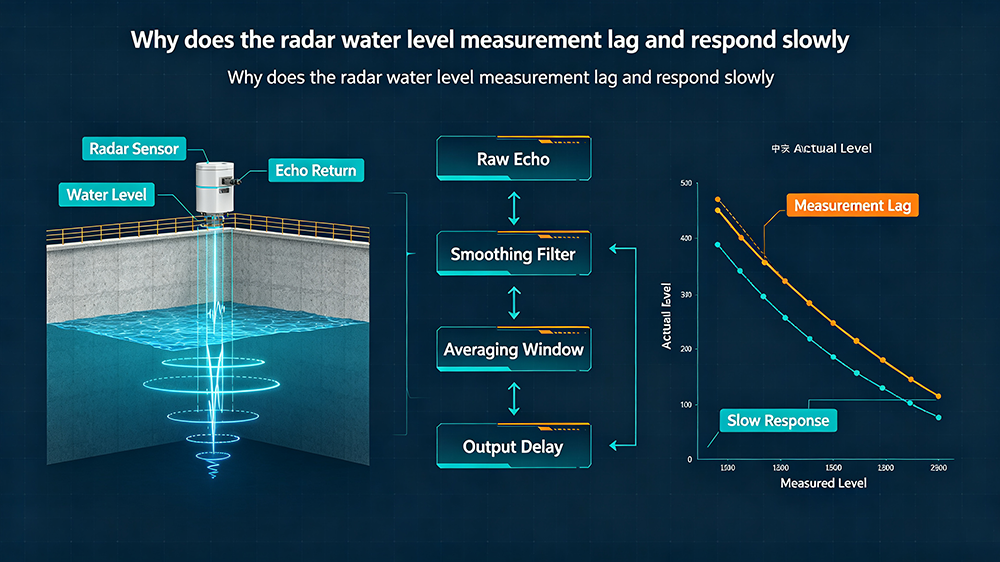

Answer: Our 80G radar operates at 76‑81 GHz and outputs valid data 1 second after power-on. Amplitude limiting filtering is enabled by factory default to smooth readings. Disable filtering for faster response — measureme
2026-08-07

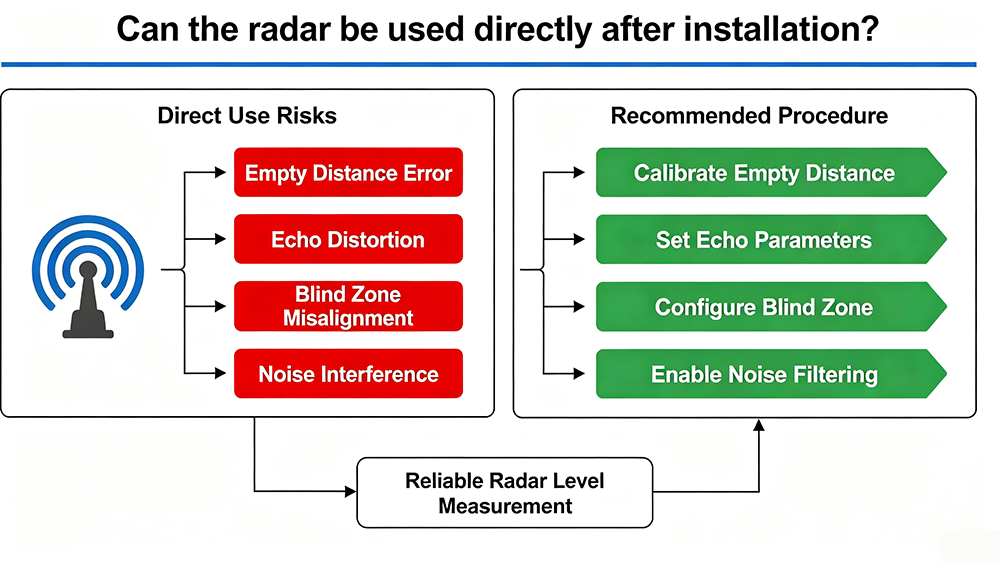

Answer: Additional configuration is required: set the installation height; calibrate current for 4‑20 mA output models. Installation height: Vertical distance from the water bottom to the radar hemisphere. After inputtin
2026-08-07

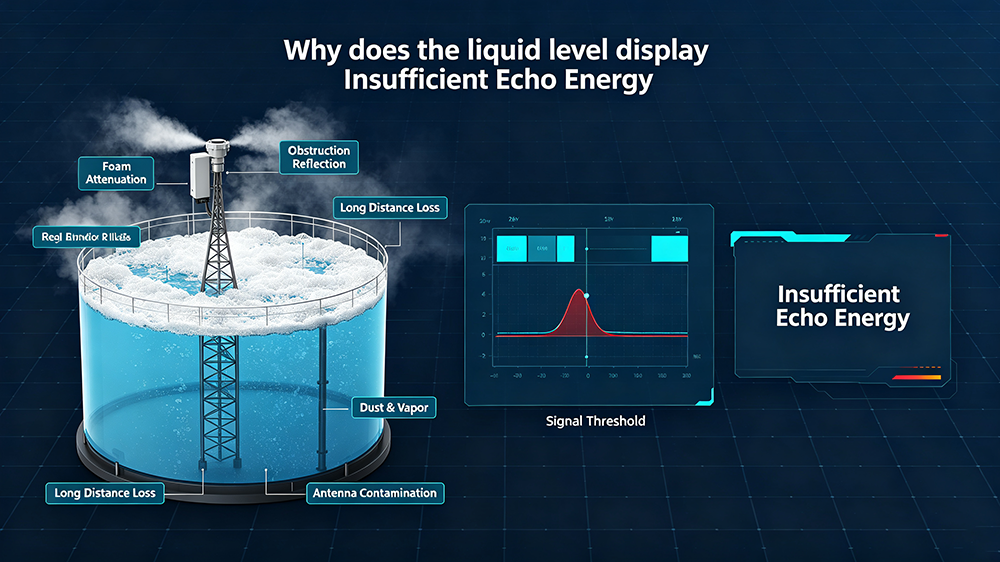

Answer: Possible causes: Obstacles between the sensor and the target weaken reflected echo energy. The sensor is not parallel to the target surface, leading to weak reflected echoes. The measured target is not a flat sol
2026-08-07

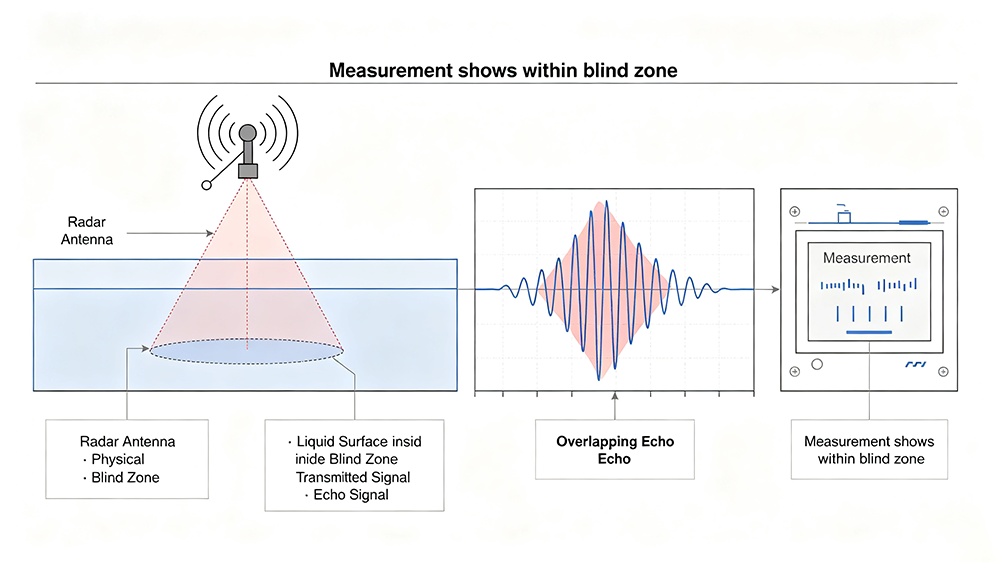

Answer: The measured distance is shorter than the blind zone distance; the factory default blind zone is 0.3 m. Solutions: Adjust the sensor-to-target distance to ensure it exceeds the blind zone. Reduce the blind zo
2026-08-07
